Red green double push-button head - Giovenzana
Red green double push-button head PPDN - Giovenzana adajusa
Red green double push-button head - Giovenzana
Red green double push-button head PPDN - Giovenzana adajusa

Double button head red red protruding - Giovenzana

€5.03 Tax included

€4.16 tax excl.

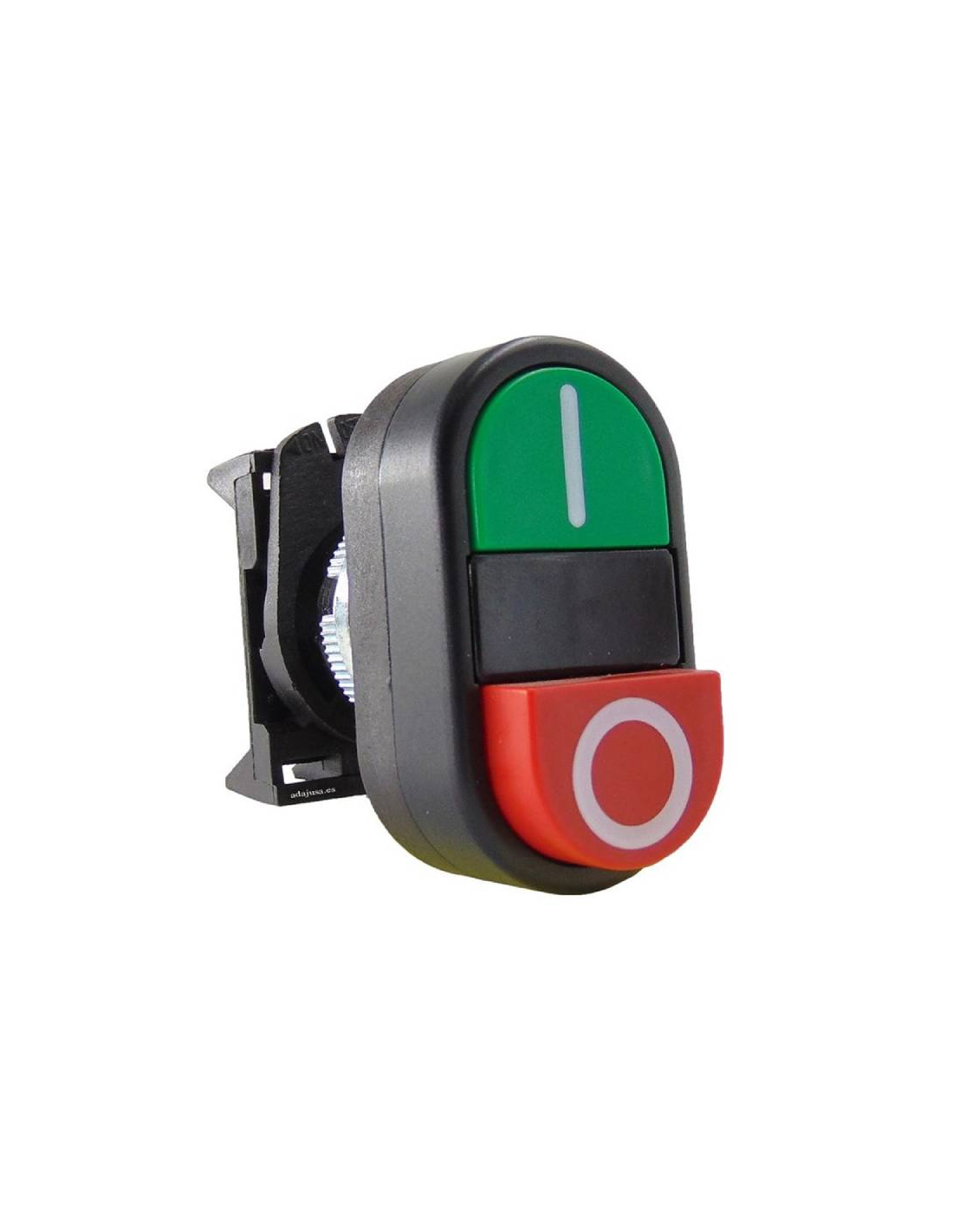

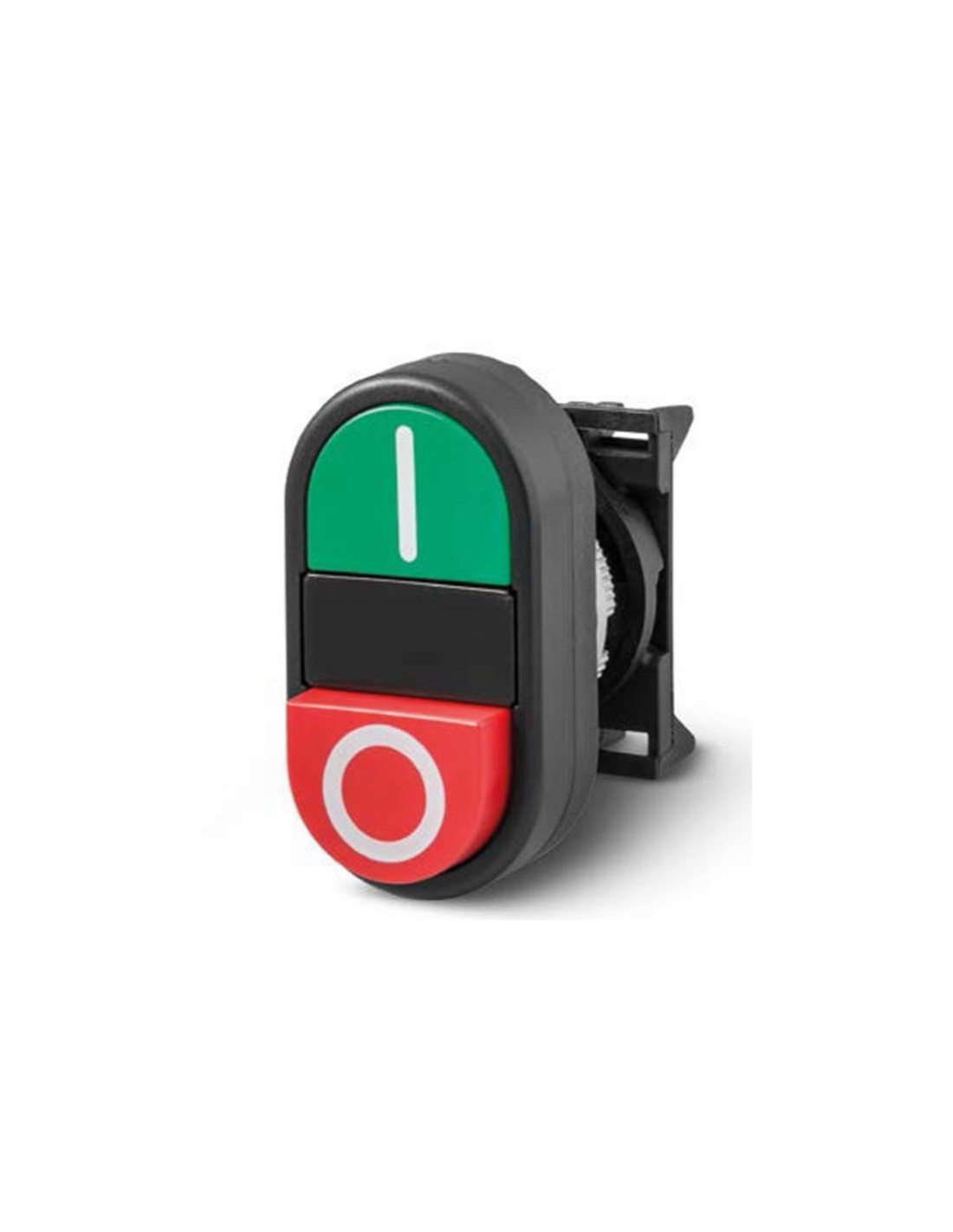

Head pushbutton double gear-stop, green and red colors. Diameter of the drill for fixing 22.5mm. Support for included contacts, allows the assembly of up to 2 contacts, both open and closed. The red pushbutton protrudes over the surface of the pushbutton.

Reference: PPDN

https://adajusa.es//img/cms/Logotipos/Giovenzana.jpg


Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Double push-button head in green and red. Diameter of the drill for fixing 22.5mm. Support for included contacts, allows the assembly of 2 contacts, both open and closed. The red pushbutton protrudes over the surface for easy operation.

European manufacture according to EN ISO 13850, in high strength technopolymer.

This emergency pushbutton head can only accommodate contact blocks of the Giovenzana brand, the references are:

  • 1 nc (NC), spring cable attachment: GIPCW01.
  • 1 no (NO), spring cable attachment: GIPCW10.
  • 1 nc (NC), screw cable attachment: GIPL004001.
  • 1 no (NO), screw cable attachment: GIPL004002.

The supply does not include any contact, it will have to be ordered separately.

dimensions:

https://adajusa.es//img/cms/Giovenzana/Pulsadores%20Pegasus/Dimeniones%20Giovenzana%20PPDL.JPG

Mounting the contact blocks on the media (contact blocks not included in the supply):

https://adajusa.es//img/cms/Giovenzana/Pulsadores%20emergencia/Montaje%20pulsadores%20serie%20Pegasus.JPG
For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
