€2.44 Tax included

€2.02 tax excl.

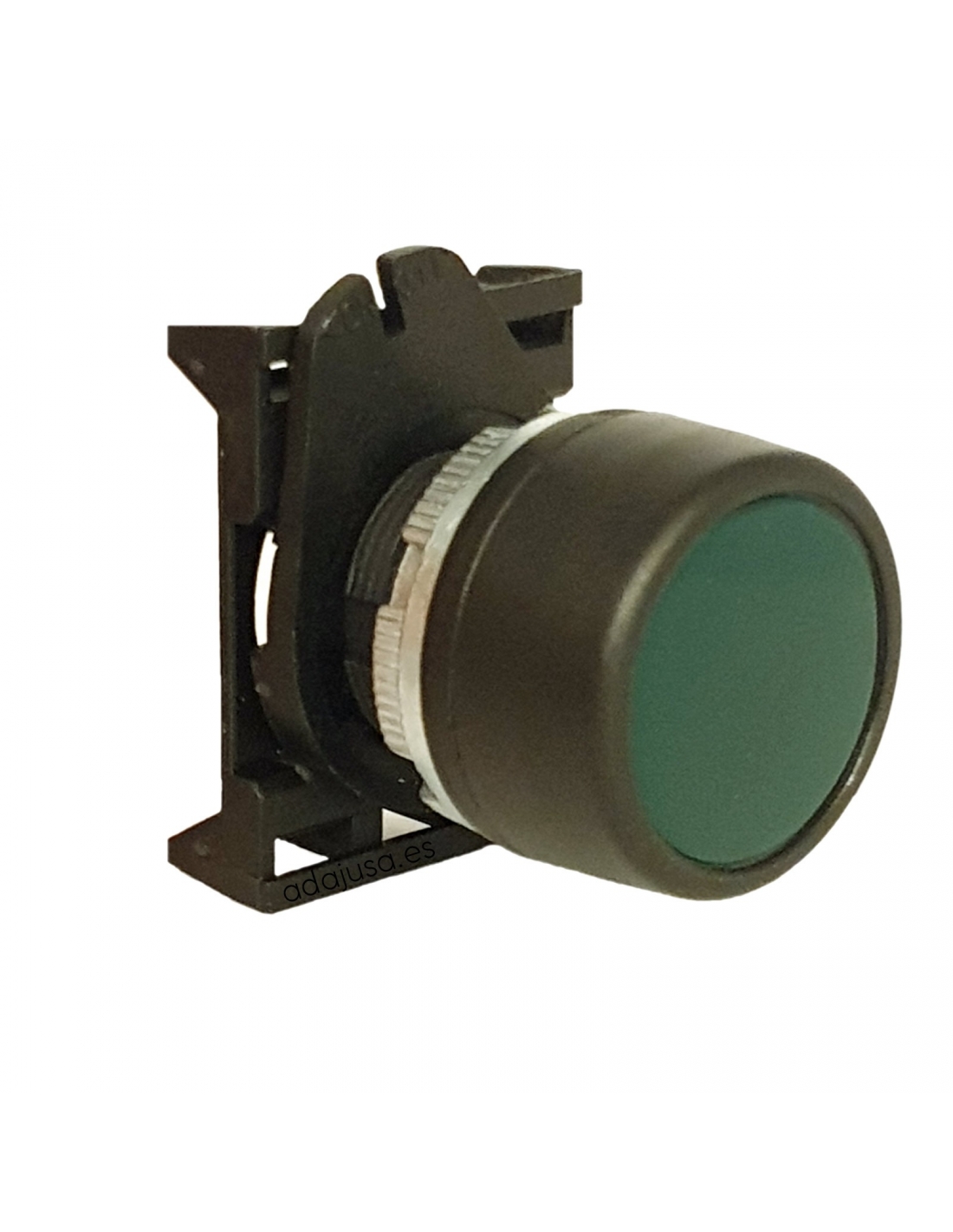

Luminous button head green color,instantaneous action, diameter of the drill for fixing of 22.5mm. Support for contacts included, allows the assembly of up to 2 contacts, both open and closed. Supports luminous block for Ba9s bulb and led.

Reference: PPRL2

Logotipo Giovenzana para fichas

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Head for luminous button,of instant action, in green color. Diameter of the drill for fixing of 22.5mm. Support for contacts included, allows the assembly of up to 2 contacts, both open and closed.

The pilot block can be with Ba9s bushing or compact luminous block.

Manufacturer/Supplier: Giovenzana

Ref: PPRL2

European manufacture according to EN ISO 13850, in high-strength technopolymer, with mechanical visual indication of condition, located on the front of the button easy indication, allows to identify if the pushbutton is activated or not.

This emergency pushbutton head can only accommodate contact blocks of the Giovenzana brand, the references are:

  • 1 nc NC, spring cable attachment: GIPCW01.
  • 1 no NO, cable attachment by spring: GIPCW10.
  • 1 nc NC, screw cable fixation: GIPL004001.
  • 1 no NO, fixing the cable by screw: GIPL004002.

The portalamparas blocks that can be installed are:

  • Portalámpara with Ba9s cap. Spring cable fastening: GIPCWAD
  • Portalámpara with integrated led 12Vca/cc: GIPCW5L12
  • Portalámpara with integrated led 24Vca/cc: GIPCW5L24
  • Portalámpara with integrated led 48Vca/cc: GIPCW5L48
  • Portalámpara with integrated led 110Vca/cc: GIPCW5L110
  • Portalámpara with integrated led 220Vac/cc: GIPCW5L220
  • Portalámpara with Ba9s cap. Screw cable fixation: GIPL004007
  • Portalámpara with integrated led 12Vac/dc: GIPL0045L12
  • Portalámpara with integrated led 24Vac/dc: GIPL0045L24
  • Portalámpara with integrated led 48Vac/dc: GIPL0045L48
  • Portalámpara with integrated led 110Vac/dc: GIPL0045L110
  • Portalámpara with integrated led 220Vac/dc: GIPL0045L220

The supply does not include any contact, portalampara block or luminous pilot, it will have to be ordered separately.

dimensions:

Dimensiones pulsador Giovenzana PPRN

Mounting the contact blocks on the media (contact blocks not included in the supply):

Montaje pulsadores serie Pegasus


For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
