Star-delta starter engine 35HP 25Kw 400V c/thermal maneuver 230Vac

€166.38 Tax included

€137.50 tax excl.

Star-delta starter for 35HP 25Kw 400V voltage motor, with 22..32A thermal relay. Tension of the contactor coils 230Vac.

Ref: ET2200T250

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

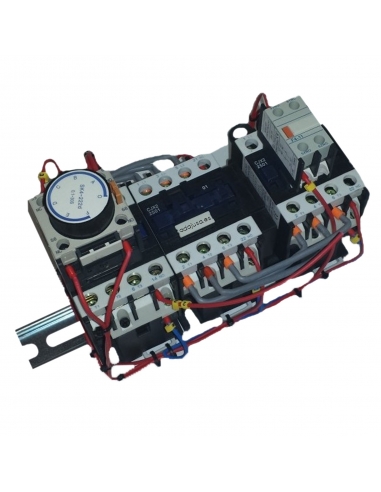

Wired star-delta starter, for 35HP (25Kw) 400V voltage electric motor, with thermal relay adjustable between 22..32A. 230Vac contactor maneuvering voltage. The starter is supplied already assembled and wired.

The thermal relay should be adjusted to an intensity 0.58 times at rated motor intensity.

Ireg-0.58xImotor.

The starter comprises:

  • 3 Contactors 32A AC3.
  • Mechanical interlock between star and triangle contactors.

Timer mounted on the line contactor.

  • Thermal relay.
  • Camára auxliar.
  • DIN rail for starter clamping.

Technical Features:

  • Manufacturer/Supplier: Denor
  • Ref: ET2200T250
  • Starter type: Star-triangule.
  • Starter power: 25 Kw (35HP).
  • Engine voltage: 400Vac.
  • Maneuvering voltage: 230Vac.
  • Timer setting: 1..30 sec.
  • Thermal relay regulation: 22..32A.

Material for professional use, install in compliance with the regulations in force at the installation site.
