Electrical Cabinet 500x400x200 mm with front chassis TFE Series

€138.93 Tax included

€114.82 tax excl.

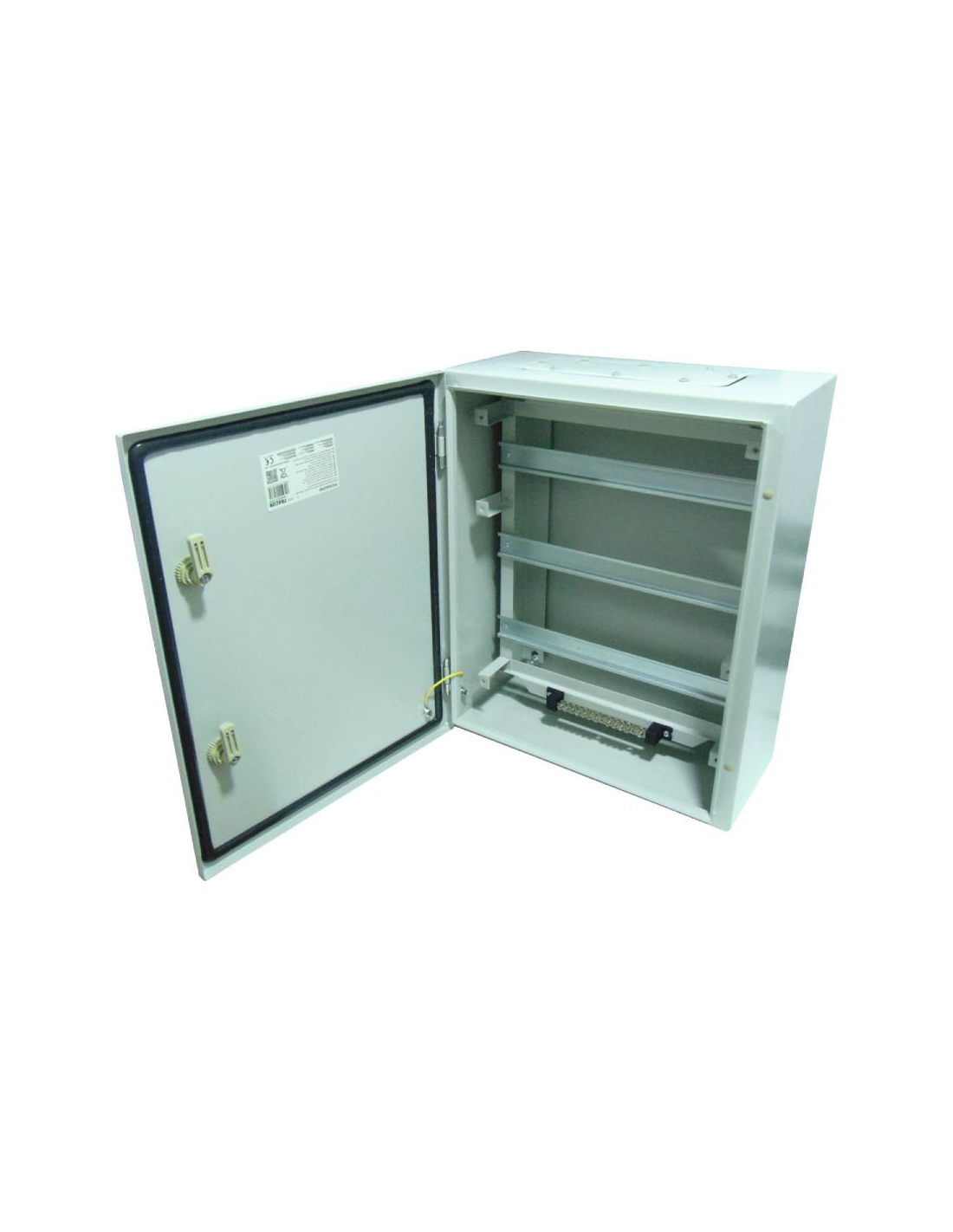

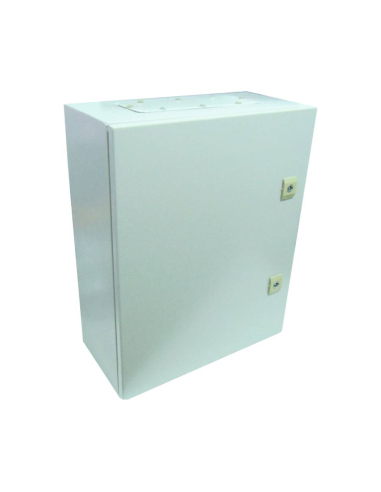

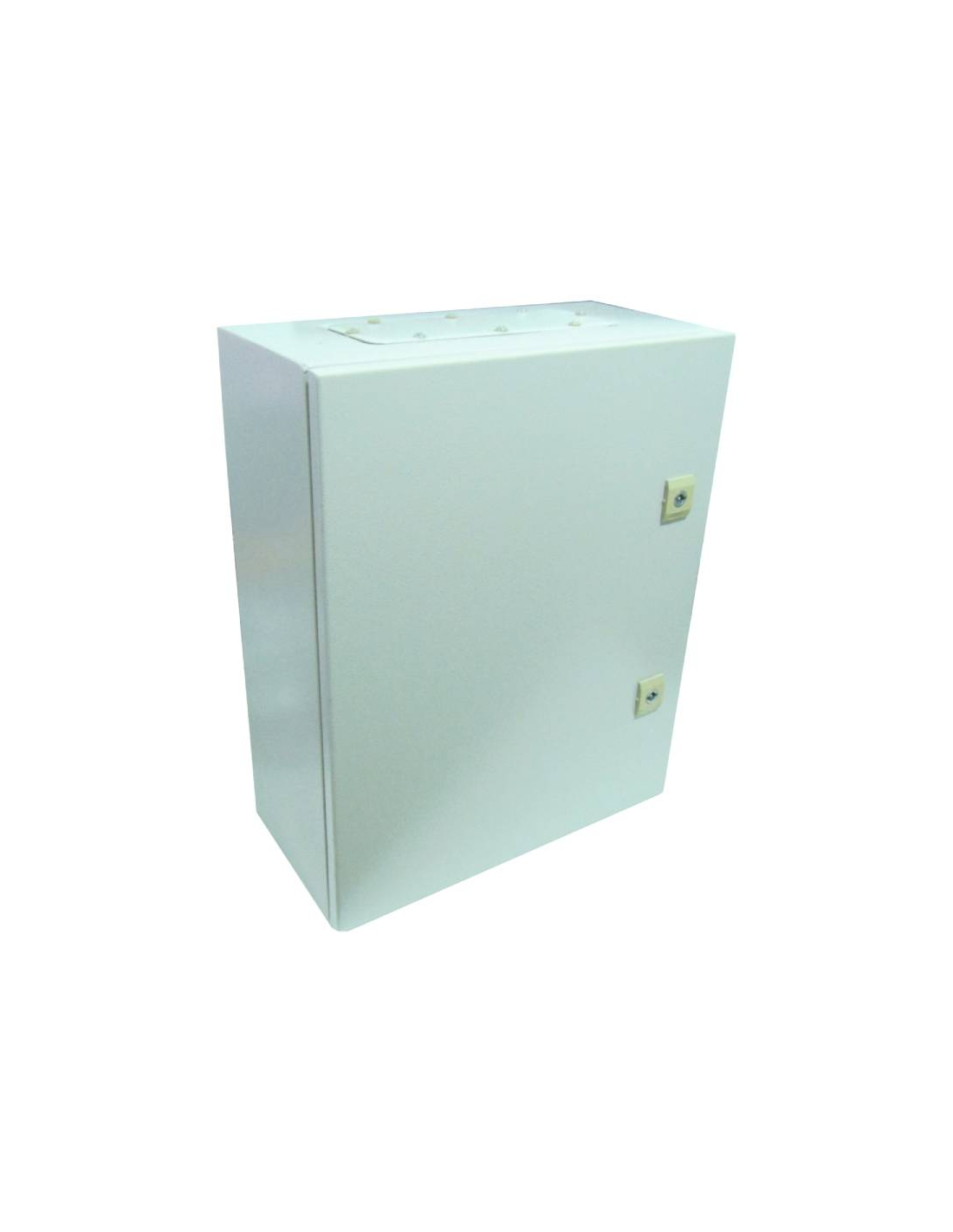

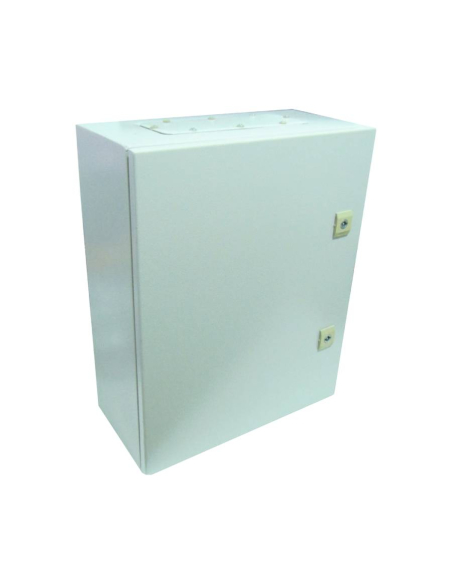

Sheet metal wall-mounted electrical Cabinet (envelope) with front chassis of 48 modules (3 rows with 16 modules each). Cabinet designed for electrical distribution panels, machinery cabinets, automation and control cabinets, air conditioning and air conditioning, etc. The door opening direction can be changed. IP55 protection grade.

Supply includes: Metal Cabinet , 3x16 modular chassis, Din rail, ground connection bar and mounting brackets.


Reference: TFE504020M


Exterior dimensions:

  • Height: 500mm
  • Width: 400mm
  • Depth: 200mm



Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


These electrical cabinets are manufactured thinking about guaranteeing a long useful life of their electrical assemblies. They have an easy-open closing system, smooth turning of the door and a maximum opening to improve the scope of work in their assemblies, easily removable door and the possibility of changing the opening direction. Electrical Cabinet manufactured under CE regulations and with IP55 protection degree.

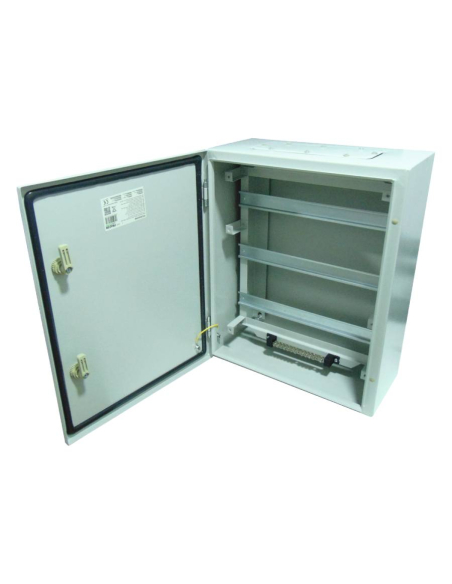

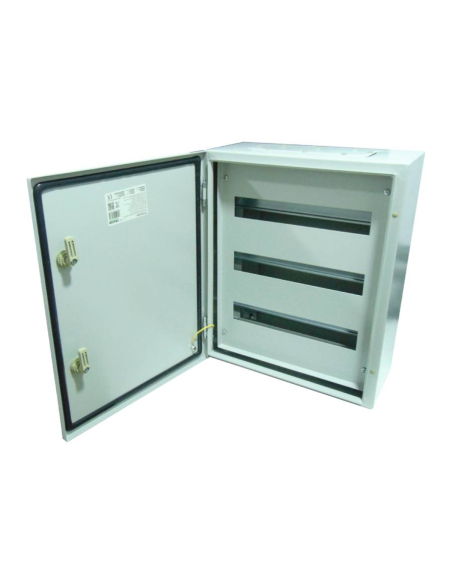

The cabinet is supplied with a metal front distribution panel or chassis of 48 modules (3 rows with 16 modules each), Din rail for mounting the switchgear, ground connection bar and supports for wall mounting. The chassis provides division and isolation to the modular switchgear and material that is installed inside the cabinet, as well as ease of assembly and installation thereof.




Characteristics:

  • Manufacturer/Supplier: Tracon
  • Reference: TFE504020M
  • Dimensions: 500x400x200mm
    • Height: 500mm
    • Width: 400mm
    • Depth: 200mm
  • Material: Sheet steel
  • Color: Gray RAL 7035
  • Door with 2 hinges
  • Number of closures: 1
  • Door opening angle: 180º
  • Closure type: Quarter turn, in polyamide
  • Fixation: Wall
  • Steel front frame included in delivery
  • Number of modules: 48 (17.5mm per module)
  • Number of rows: 3
  • Number of modules per row: 16
  • Wall mounting brackets included in delivery
  • Ambient temperature: -25ºC to +55ºC
  • Protection grade: IP55
  • Regulations: CE, EN62208

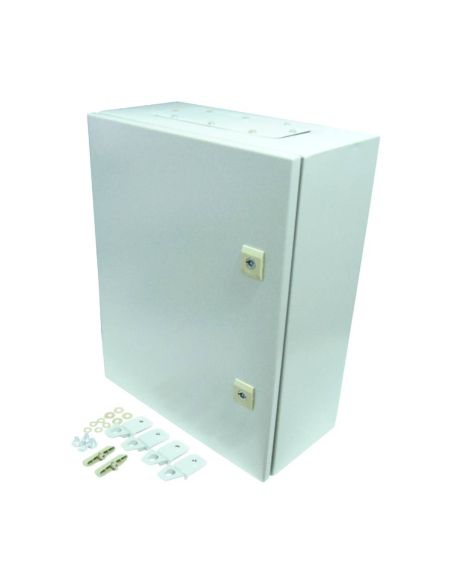

The supply includes:

  • Cabinet
  • Front chassis 3x16 modules
  • DIN rail
  • Grounding Bar
  • Lock
  • Inlet plate and gaskets
  • Mounting Brackets
Adajusa TFE sheet metal cabinets breakdown





Material for professional use, install in compliance with the regulations in force at the installation site.
