MCB circuit breaker auxiliary contact - Hyundai Electric

€15.56 Tax included

€12.86 tax excl.

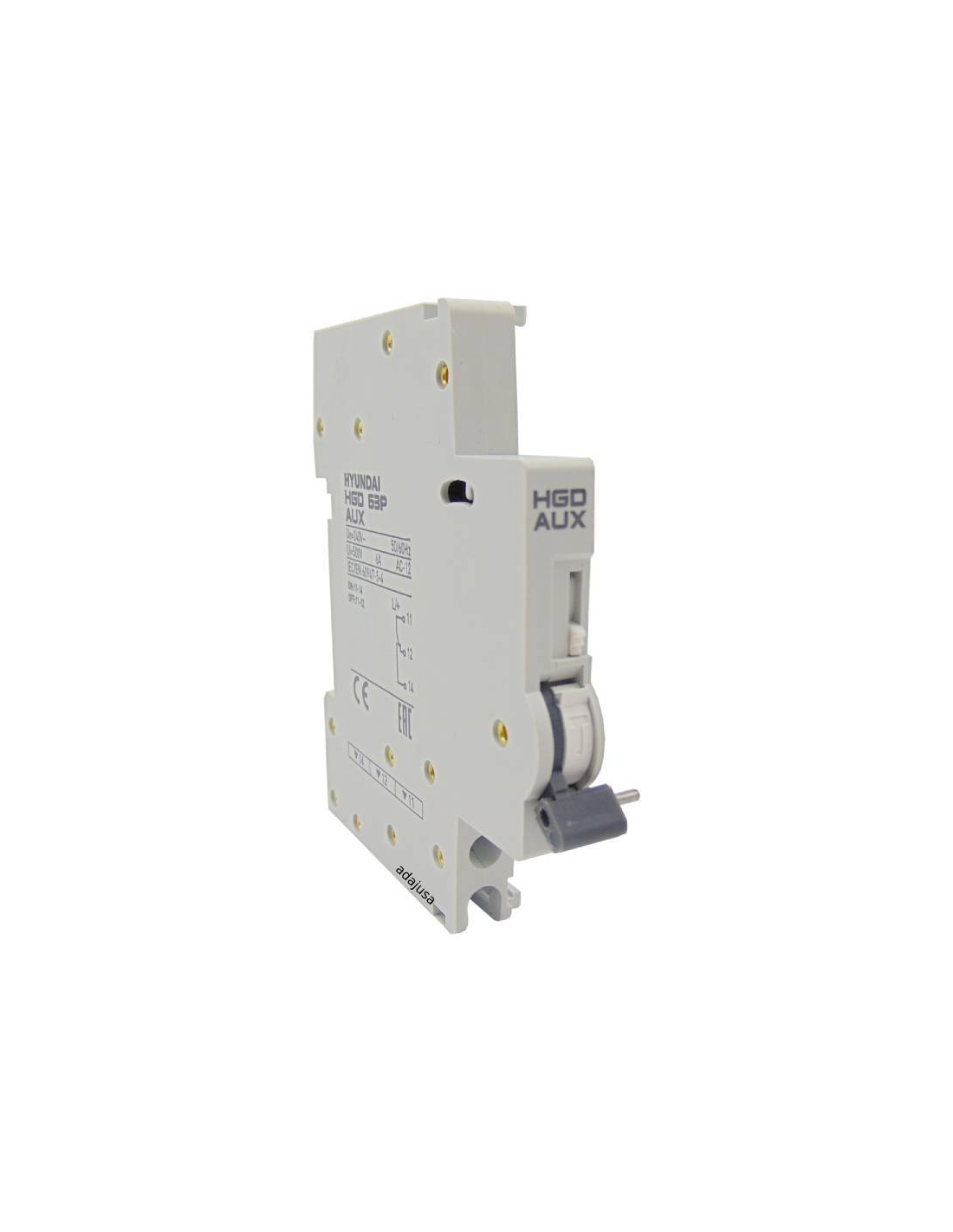

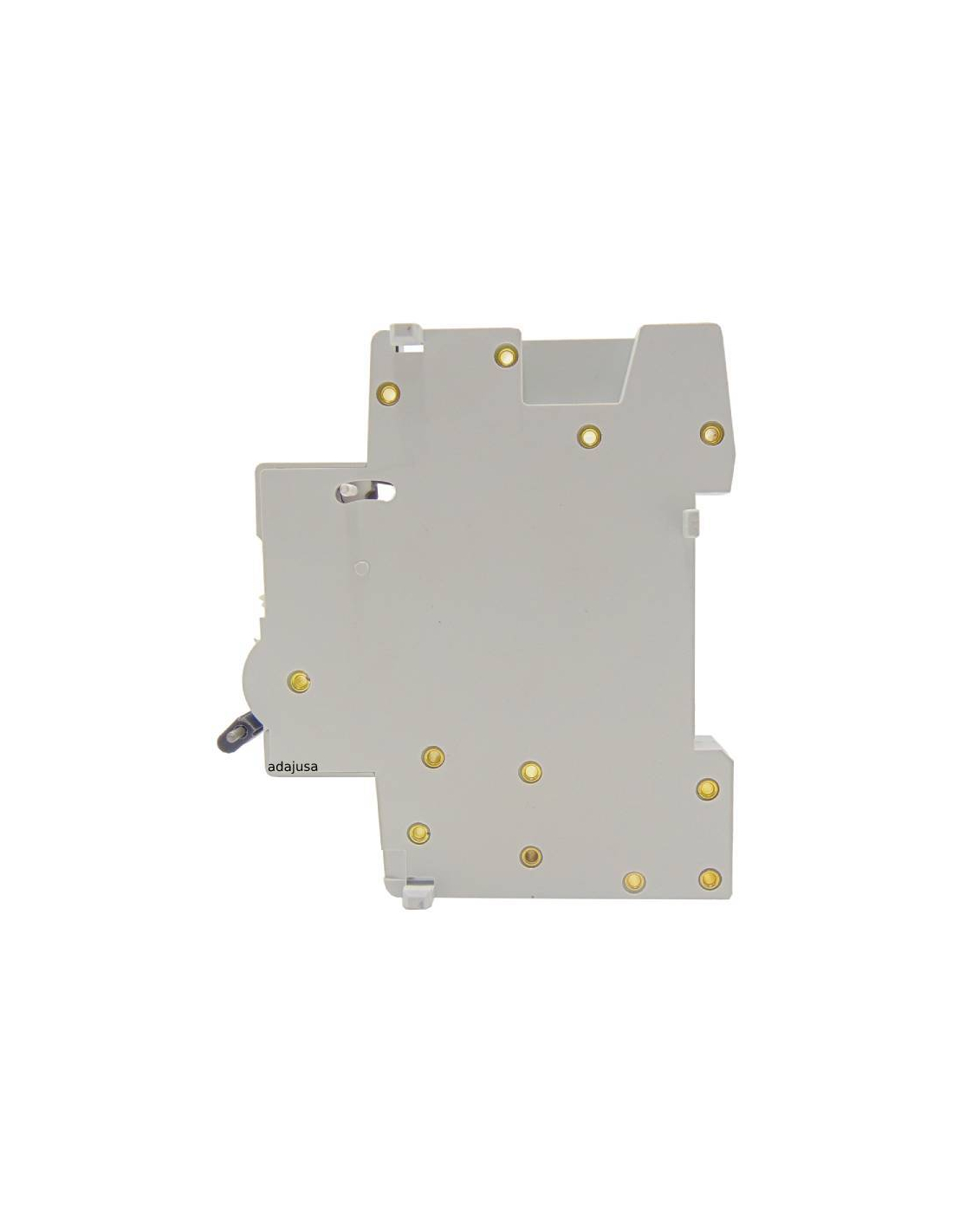

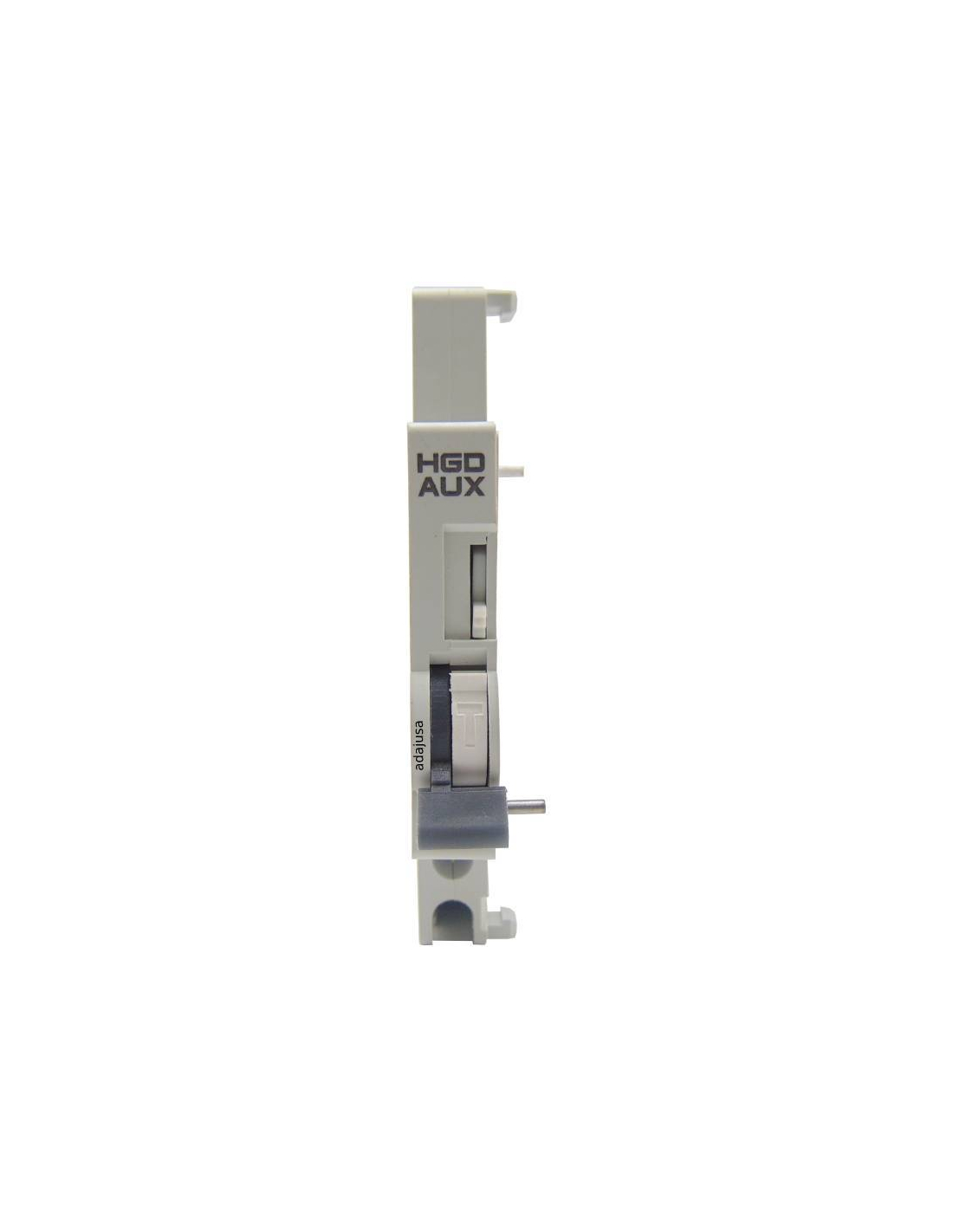

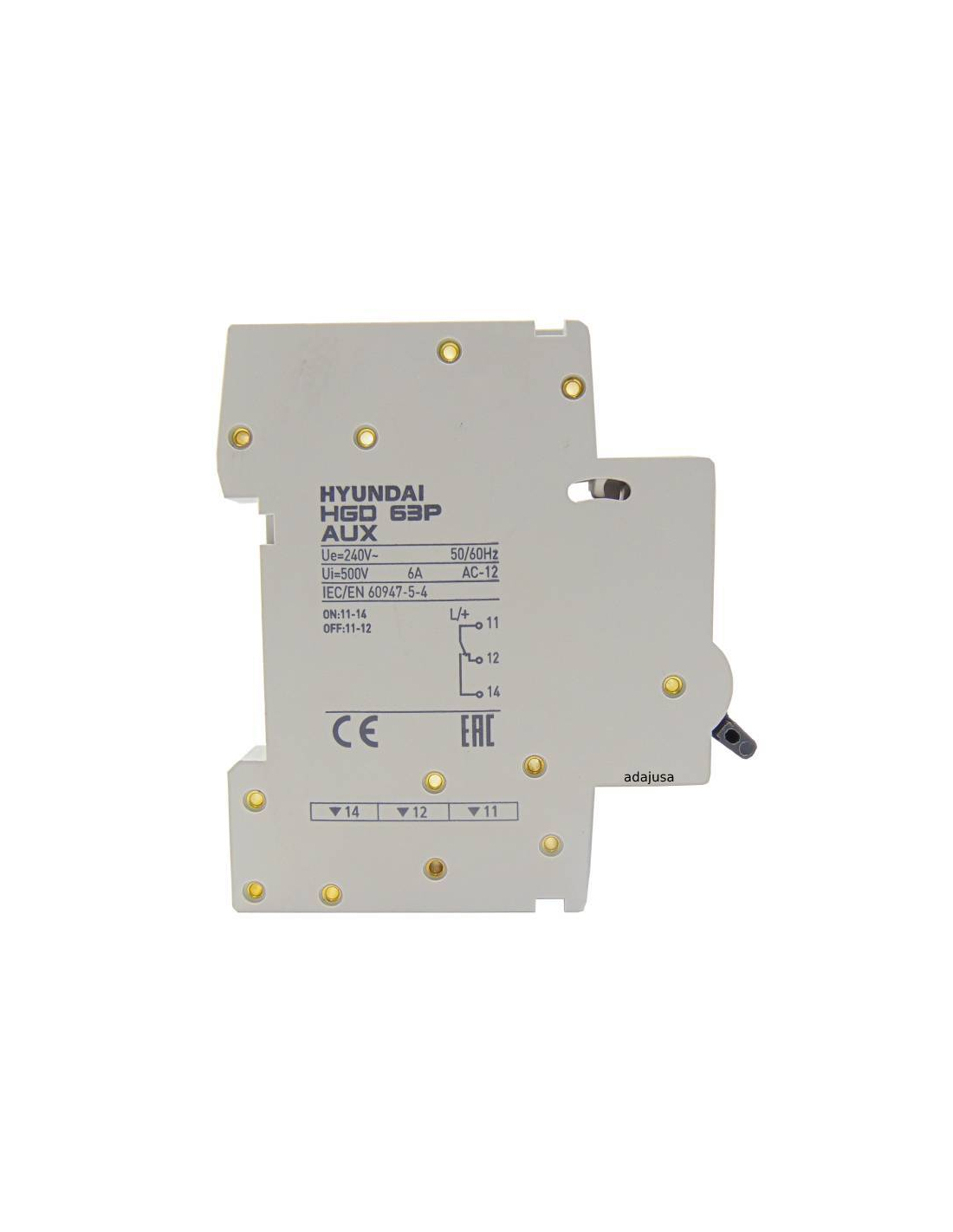

Auxiliary contact for MCB circuit breaker, with 1 NA/NC switched contact, indicates the "open" or "closed" position of the MCB circuit breaker switch to which it is associated, is placed on the left side of the magnetothermic.

REFERENCE AUX M63-N



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Side auxiliary contact chamber for coupling magnetothermics with 1 switched contact, located on the left side of the mcb circuit breaker. The camera is coupled to the mcb circuit breaker by means of the lever of actuation of the same and shooting lengueta.

Specifications:

  • Manufacturer/Supplier: Hyundai Electric
  • Reference: AUX-HGD63P
  • Rated current (In): 3A.
  • Type: OF.
  • Maximum operating voltage: 400Vac.
  • Contact type: NA/NC switching.
  • Situation: Left side.

Note: The auxiliary contact for mcb circuit breaker is valid for Hyundai HGD series (63 M/P) brands.
