2 outlet distributor with quick couplings and...

2 outlet distributor with quick couplings and 20mm tube cutting valve - Aignep

2 outlet distributor with quick couplings and 20mm tube cutting valve - Aignep

Name: 2 outlet distributor with quick couplings and 20mm tube cutting valve - Aignep
Brand: Aignep
SKU: PK90642VE202
Price: 55.9504 EUR
Availability: PreOrder

€55.95 Tax included

€46.24 tax excl.

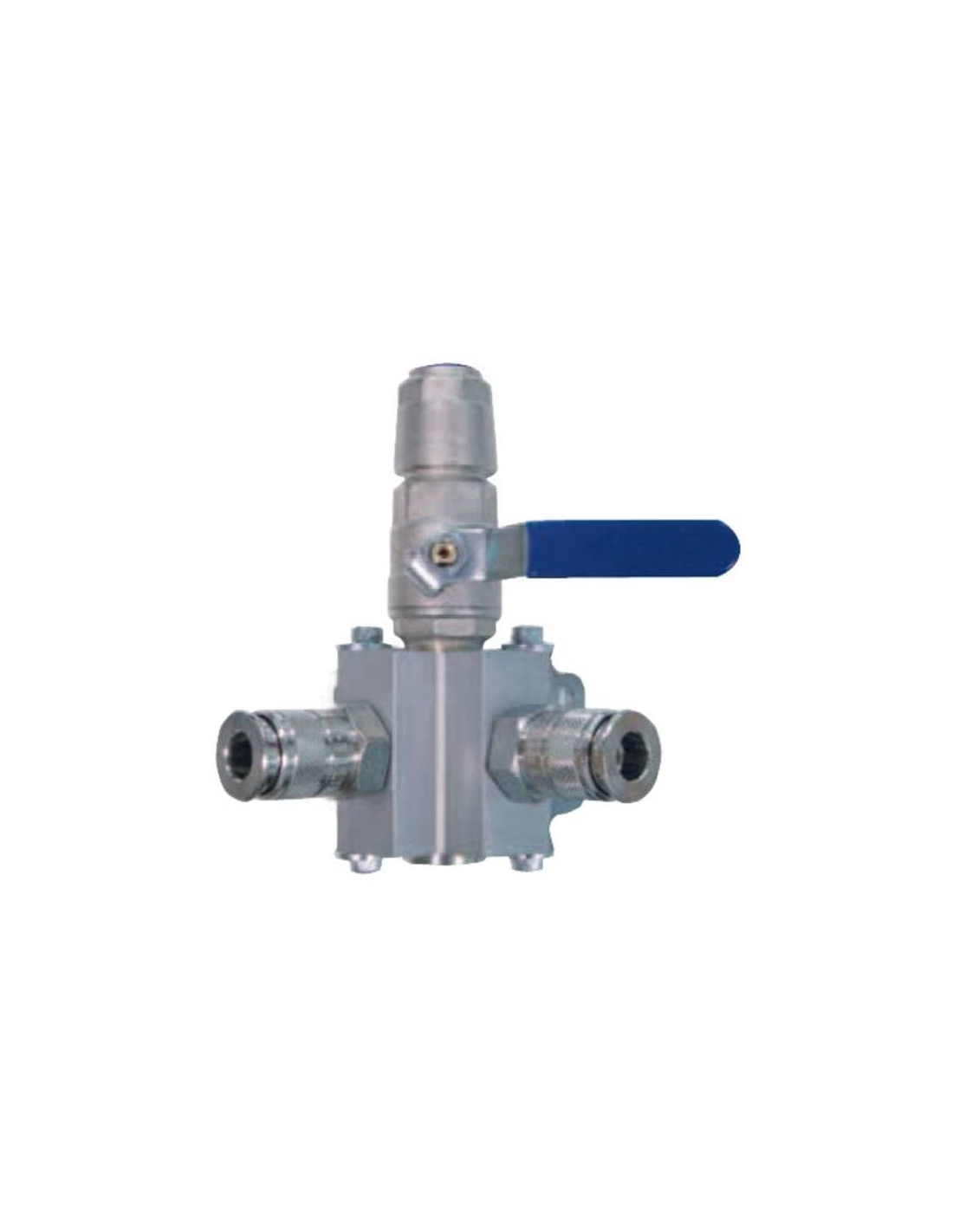

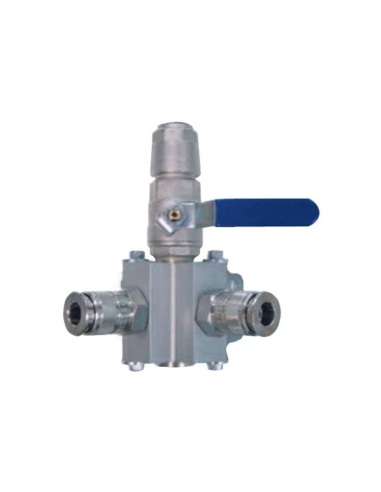

Distributor with two outlets for wall mounting, inlet with shut-off valve for 20mm outer diameter tube and 1/2 female thread outlets with universal profile quick connectors. This wall socket allows you to install, in a simple and safe way, in the downpipes of a distribution network, the necessary accessories for connecting machinery or pneumatic tools required to facilitate the efficient distribution of compressed air in the facilities, as well as cutting off the supply. of the air when necessary.

Reference: 90642VE 20 2

Aignep logo

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

This pack contains

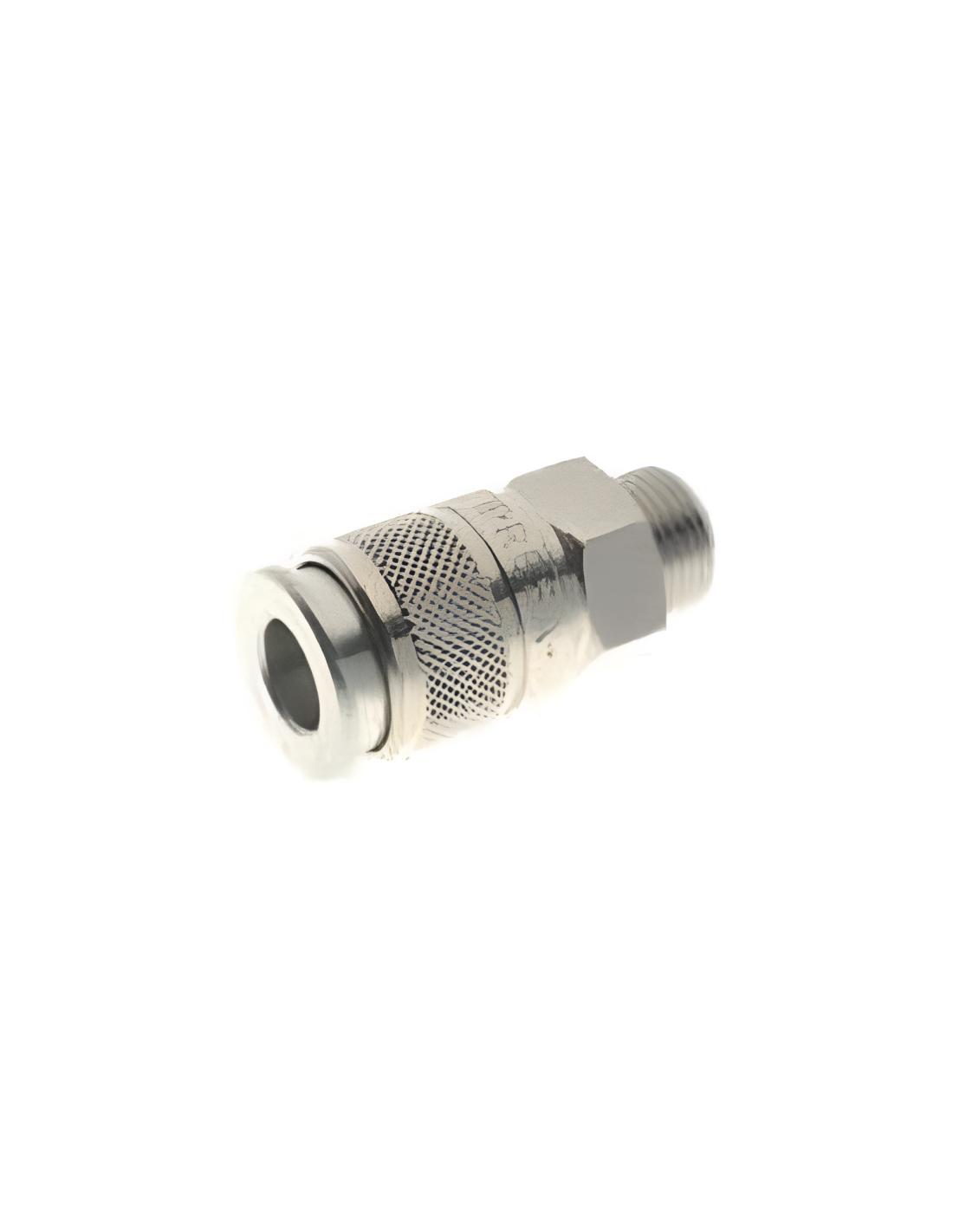

Male quick connector 1/2 universal series - Aignep

€6.59

Distributor 2 outputs female input 1/2 - Aignep

€19.00

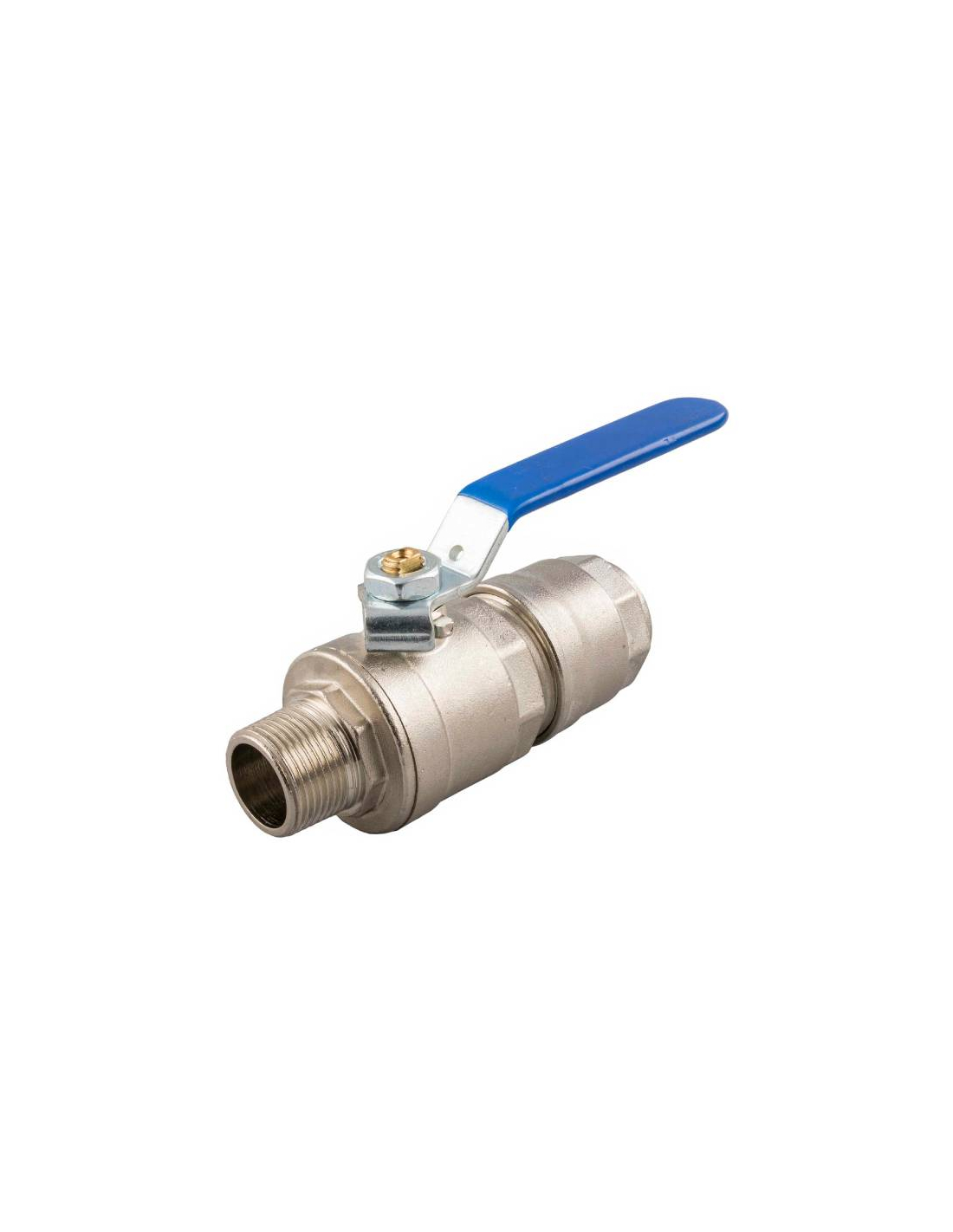

2- way ball valve male 1/2 tube 20mm - Aignep

€23.76

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Wall socket or wall support with two outlets with 1/2 cylindrical female thread and 1/2 cylindrical female thread inlet. At the inlet, a ball valve or 2- way ball valve is attached, operated by lever for a 20mm outer diameter tube. The outlets incorporate two quick plugs with a universal profile, interchangeable with all the different types of adapters approved in the European market, guaranteeing perfect sealing for all of them. This type of plug allows a simple and quick connection and disconnection of pneumatic elements and tools.

This wall socket allows you to install, in a simple and safe way, in the downpipes of a distribution network, the necessary accessories for the simultaneous connection of pneumatic tools required for the operation and equipment of the installation, such as air treatment units, pipe or pneumatic hose for the use of compressed air, etc...

Characteristics:

Manufacturer: Aignep
Reference: 90642VE 20 2
Series: Infinity
Inlet tube diameter: 20mm
Valve: Male/Tube
Number of distributor outputs: 2
Outlet thread: Female 1/2 (Gas cylindrical according to ISO 228)
Quick couplings: Male 1/2 universal profile
Material: Nickel-plated brass
Application: Compressed air, vacuum, inert gas (nitrogen, argon)
Pressure conditions of use 0.99 - 16bar (according to directive 2014/68/EU)
Temperature conditions of use: -20ºC to +80ºC (according to directive 2014/68/EU)
All products in the Infinity range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 and ASME 31.3 requirements and compliance with the Technical and Safety Standards Authority (TSSA), not They are flammable and limit the spread of flame according to UNI EN 13501-1:2005 Class A2-d1-d0. The Infinity system does not introduce solid particles, water, humidity or oil and therefore does not contaminate the transported fluid (ISO 8573-1 standard)

Material for professional use, install in compliance with the regulations in force at the installation site.
