M5 diameter metal transits fitting - Aignep

€1.02 Tax included

€0.84 tax excl.

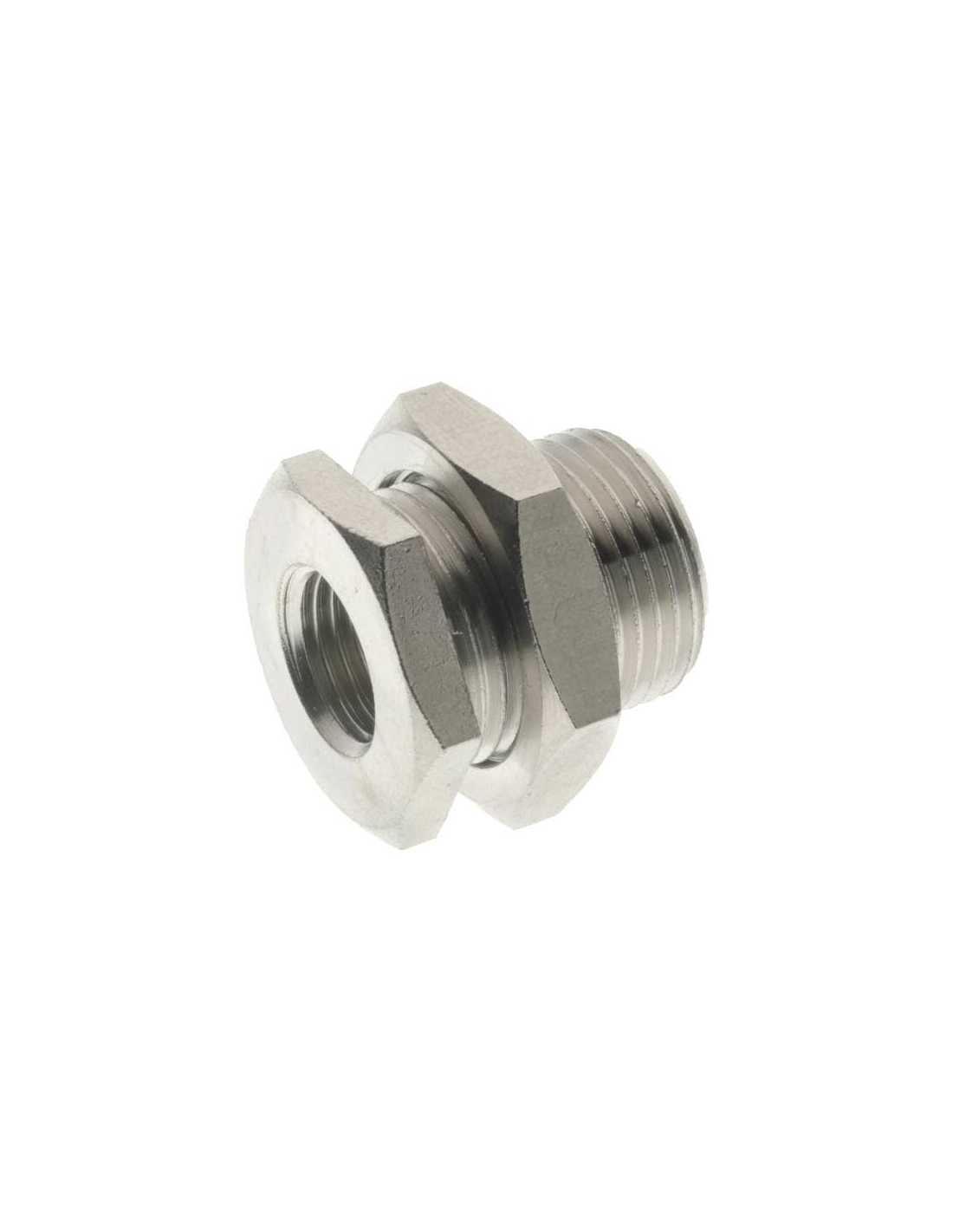

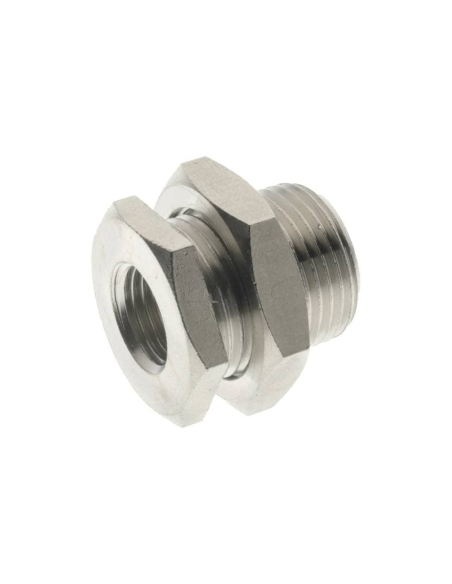

Straight metal transits M5 diameter with instant connection, nickel-plated brass body. European manufacturing.

Series: Accessories
Reference: 3060 M5




aignep
normative


Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Wall grommet transits (bulkhead bushing) with external diameter M5. Threaded body with M10x1 thread with metal nuts included, used for connection to the pneumatic network.

Body made of nickel-plated brass and supports a maximum pressure of 80 bar , with a safety coefficient of 4. This fitting is suitable for water, oils, compressed air, fluids in general in pneumatic, hydraulic, oleodynamic, hydropneumatic installations, etc. ...

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 3060 M5
  • Thread: M10x1
  • Number of nuts: 2
  • Thread regulations:
    • Conical gas conforming to ISO 7.1, BS 21, DIN 2999
    • Cylindrical gas conforming to ISO 228 Class A
    • ISO R/262 compliant metric


3060dimensions
3060TD

Material for professional use, install in compliance with the regulations in force at the installation site.
