Vandal-proof selector adajusa
Vandal-proof 2-position selector Ø19mm 1NA/NC
Vandal-proof 2-position selector Ø19mm 1NA/NC
Vandal-proof selector adajusa
Vandal-proof 2-position selector Ø19mm 1NA/NC
Vandal-proof 2-position selector Ø19mm 1NA/NC

Vandal-proof 2-position selector Ø19mm 1NA/NC

€5.25 Tax included

€4.34 tax excl.

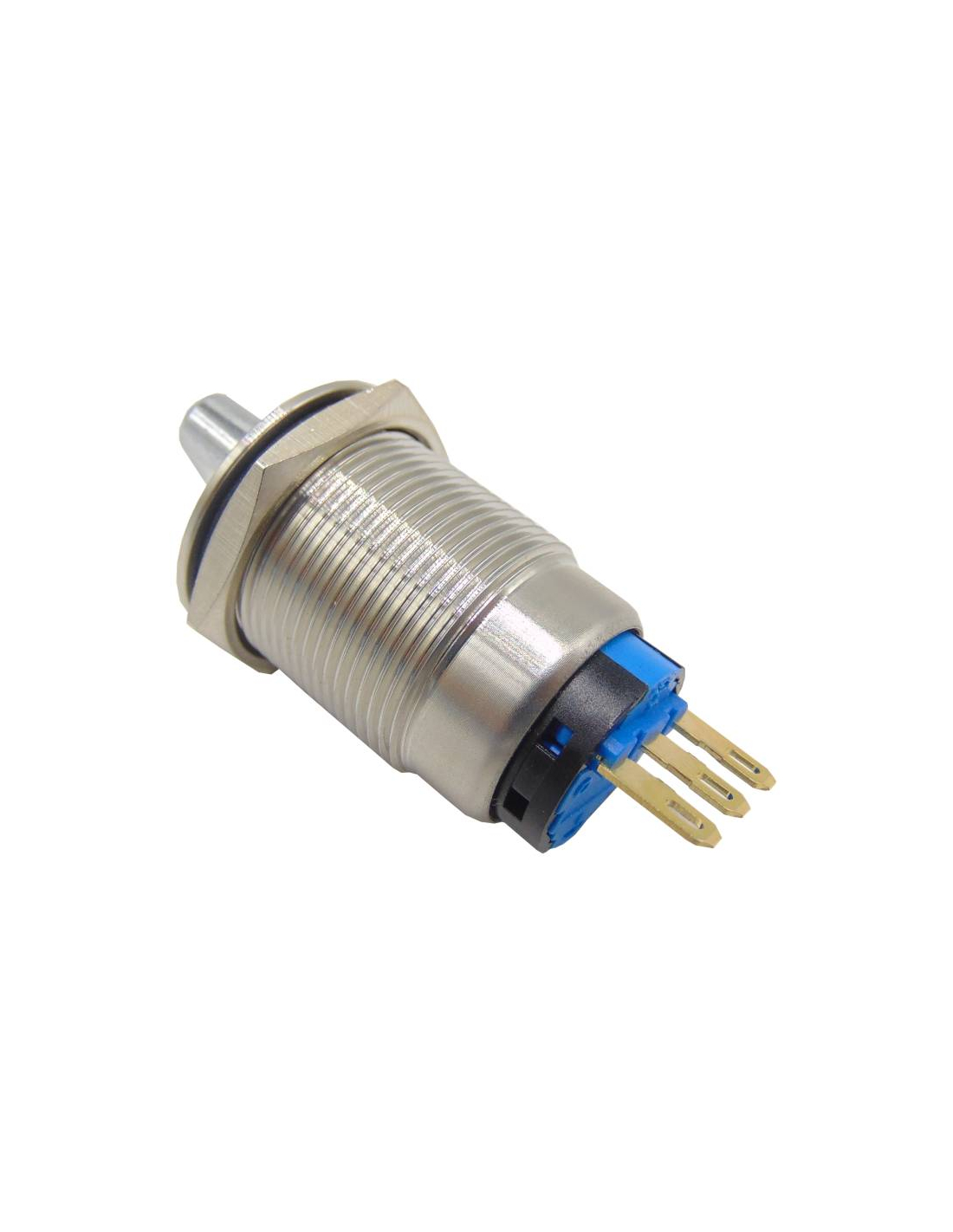

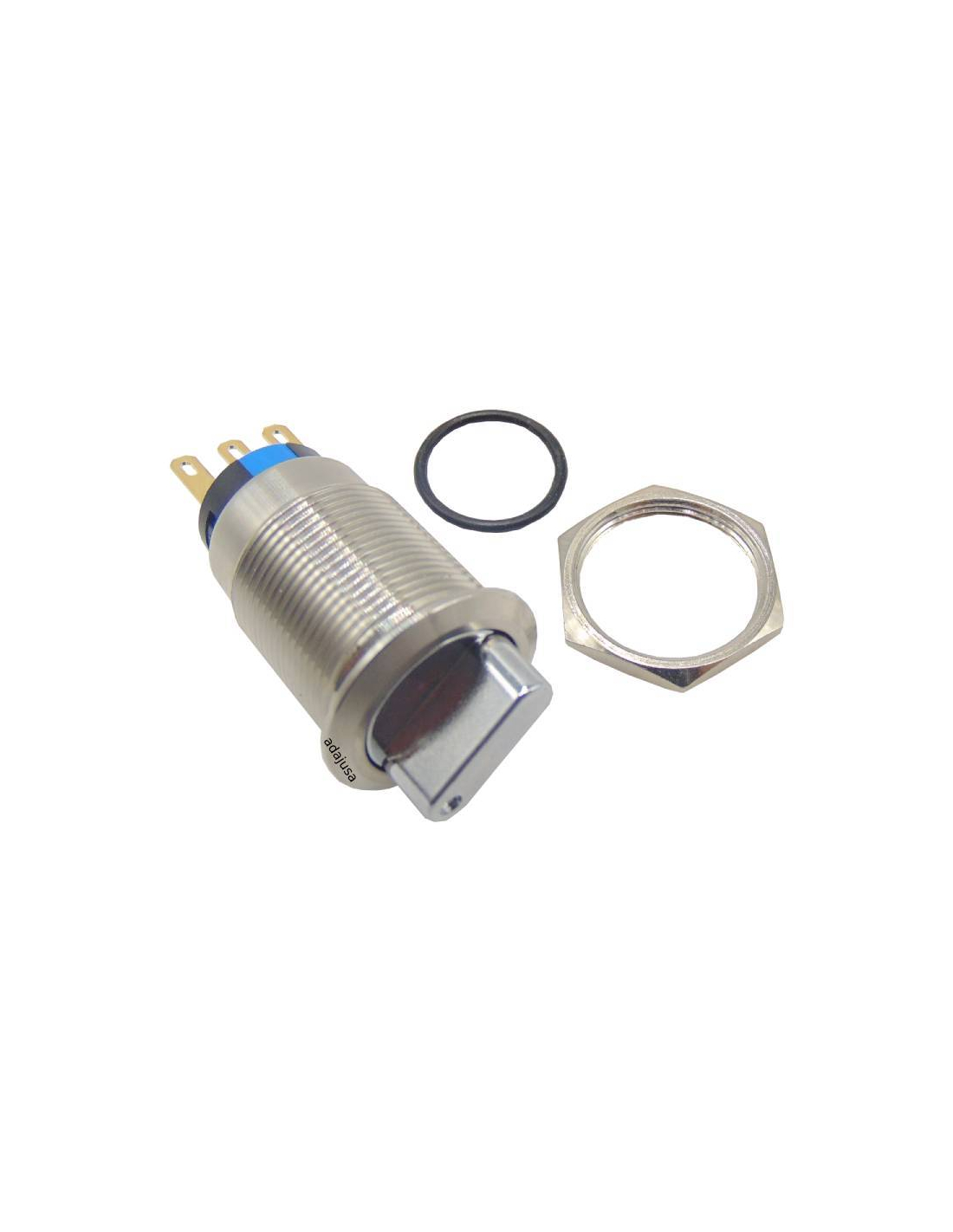

Vandal-proof selector switch 19mm, 2 positions, 1 change-over contact.

Vandal-proof selector, 1 change-over contact, Ø19mm, made of stainless steel. They are perfectly adapted to industrial systems, machines and equipment where high robustness and reliability are required. Degree of protection IP-67.
Reference: DU-19X-1 SS

esquema selector contacto conmutado adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Vandal-proof interlocked 2-position selector switch, with one NO/NC change-over contact, Ø19mm, made of stainless steel. High robustness and reliability.

They are very suitable to be installed in environments of adverse use, on industrial systems, machines and equipment where high robustness and reliability are required.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Part number: DU-19X-1 2P
  • Type: Pushbutton (momentary action)
  • Type of material: stainless steel 304
  • Panel drilling: Ø19 mm
  • Signaling type: none
  • Type of contact: 1 NO/NC changeover contact, potential free
  • Maximum voltage (Ui): 250Vac/dc
  • Minimum voltage: 5Vac/dc
  • Maximum intensity (Ith)
    • 6Vdc: 5A
    • 12Vdc: 4A
    • 24Vdc: 3A
    • 230Vac: 4A
  • Minimum current: 1mA
  • Terminal size: 2.8x0.5m for soldering or quick connection
  • Contact resistance: ≤50mᾨ
  • Resistance of isolation. ≥1000MὨΙ
  • Voltage of isolation: 2000Vac
  • Working temperature: -25ºC to 55ºC
  • Mechanical life: 1,000,000 minimum
  • Electrical life: 100,000 at full load
  • Degree of watertightness: IP67

Dimensiones selector antivandalico adajusa

Note: to achieve IP67 watertightness, always install using the O-ring included in the scope of supply.
Material for professional use, install in compliance with the regulations in force at the place of installation.
