Antivandalic push button Ø19mm green 1 NO + 1 NC stainless steel
Vandal resistant push button Ø19mm 1NO/NC Green...
Vandal resistant push button Ø19mm 1NO/NC Green...
Antivandalic push button Ø19mm green 1 NO + 1 NC stainless steel
Vandal resistant push button Ø19mm 1NO/NC Green luminous ring 24V
Vandal resistant push button Ø19mm 1NO/NC Green luminous ring 24V

Vandal resistant push button Ø19mm 1NO/NC Green luminous ring 24V

€5.20 Tax included

€4.30 tax excl.

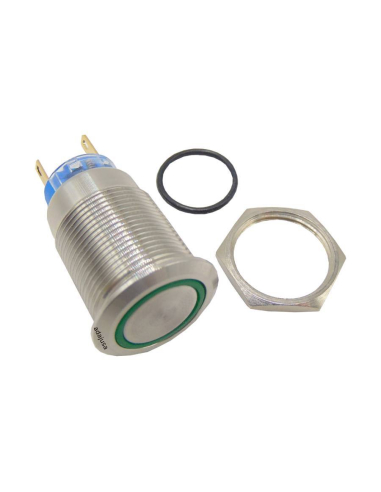

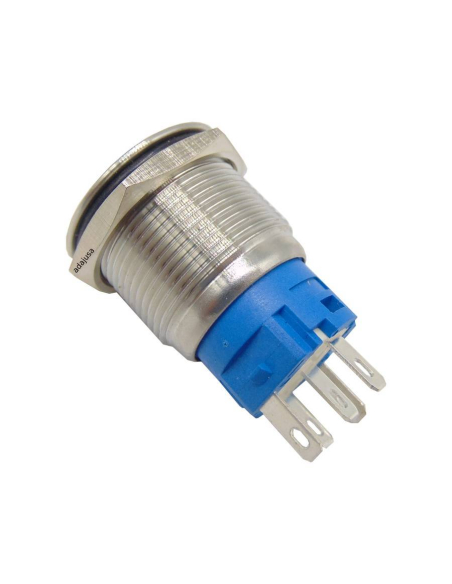

Vandal-proof pushbutton 19mm, 1 CO (1 CO), green luminous indicator ring 24V.

Vandal-proof flush-mounted push button, 1 CO (1 CO), Ø19mm, made of stainless steel. Perfectly suitable for industrial systems, machines and equipment where high robustness and reliability are required. Degree of protection IP-67.

Luminous indication by means of green Led, in the shape of a ring.

Part number: DU-1911DP-4 V SS

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

Out of stock

No queries yet, leave the first!
Privacy
Shipments
Returns


Vandal-proof flush-mounted luminous pushbutton with one NO/NC change-over contact, Ø19mm, made of stainless steel. High robustness and reliability.

Luminous indication by means of Led with an operating voltage of 24Vdc in the form of a ring.

They are very suitable to be installed in environments of adverse use, on industrial systems, machines and equipment where high robustness and reliability are required.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Part number: TYJ19-272-G-24V
  • Type: Push button (momentary action)
  • Type of material: stainless steel 304
  • Luminous indication: Led green color 24Vac/dc
  • Panel drilling: Ø19 mm
  • Signaling type: none
  • Contact type: Push button 2 potential-free NO/NC change-over contacts
  • Maximum voltage (Ui): 250Vac/dc
  • Minimum voltage: 5Vac/dc
  • Maximum intensity (Ith)
    • 6Vdc: 5A
    • 12Vdc: 4A
    • 24Vdc: 3A
    • 230Vac: 4A
  • Minimum current: 1mA
  • Terminal size: 2.8x0.5m for soldering or quick connection
  • Contact resistance: ≤50mᾨ
  • Resistance of isolation. ≥1000MὨΙ
  • Voltage of isolation: 2000Vac
  • Working temperature: -25ºC to 55ºC
  • Mechanical life: 1,000,000 minimum
  • Electrical life: 100,000 at full load
  • Degree of watertightness: IP67

Dimensiones pulsador antivandalico luminiso 1 contacto DU-1911DP-4 adajusa

Note: to achieve IP67 watertightness, always install using the O-ring included in the scope of supply.
Material for professional use, install in compliance with the regulations in force at the place of installation.
