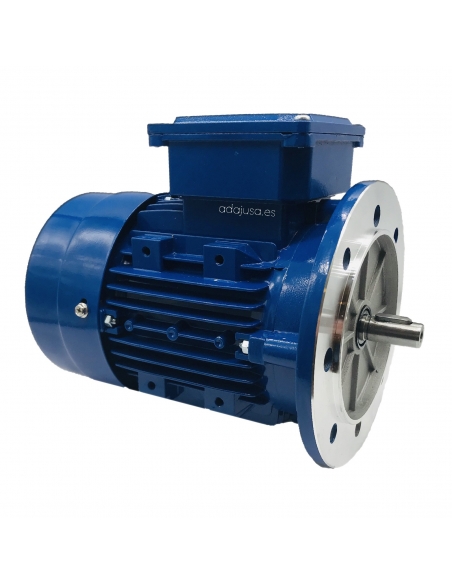

Three-phase motor 5.5Kw 7.5HP 230/400V 3000 rpm IE1 Flange B5

Three-phase motor 5.5Kw 7.5HP 230/400V 3000 rpm IE1 Flange B5

Name: Three-phase motor 5.5Kw 7.5HP 230/400V 3000 rpm IE1 Flange B5
Brand: Generico-MOT
SKU: SS132S12B54E1
Price: 385.506 EUR
Availability: InStock

€385.51 Tax included

€318.60 tax excl.

Three-phase electric motor 5.5kW (7.5HP) 230/400V 3000 rpm (2 Poles) B5 flange, aluminium housing. Manufactured under European IEC regulations.

Reference: SS132S12B54E1
Voltage: 230/400Vac 50/60Hz.
Number of poles: 2.
Revolutions: 3000 rpm .
Flange: B5.
Shaft diameter: 38mm.
flange diameter: 300mm.
Power: 5.5Kw - 7.5HP.
Size: 132.
Energy efficiency: IE1

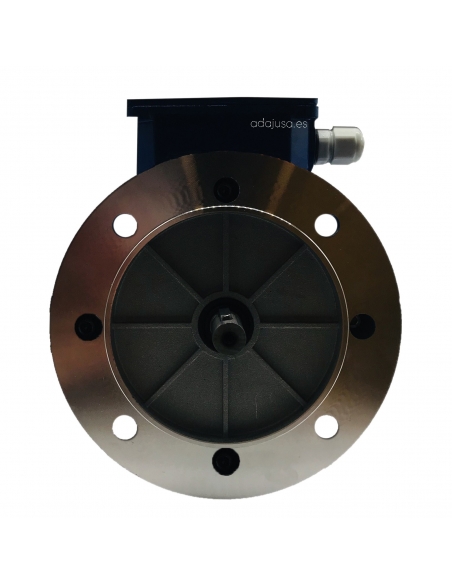

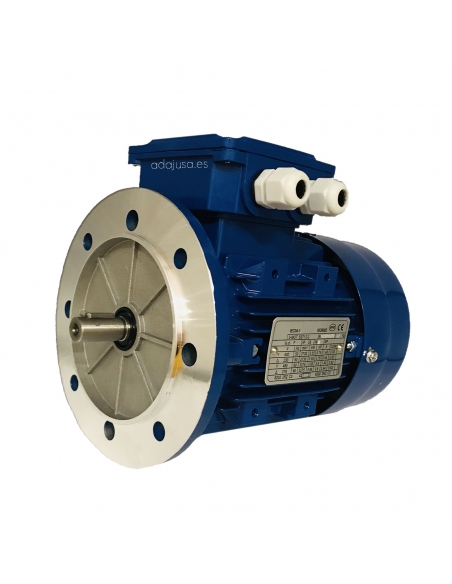

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Three-phase electric motor 5.5kW (7.5HP) 230/400V 3000 rpm B5 flange. Made of cast aluminium.
Standard three-phase electric motors for general use, manufactured in accordance with European IEC regulations in aluminium with removable legs. Enamelled copper windings with class F insulation. The casing is closed and has a seal on the output shaft which gives it a protection rating of IP55.

Characteristics:

Manufacturer/Importer: Motorseg
Reference: SS132S12B54E1
Motor type: asynchronous squirrel cage.
Efficiency: IE1
Voltage: 230/400 V. III. 50/60 Hz.
Number of poles: 2.
Revolutions: 3000 (2900).
Power: 5.5 Kw (7.5 HP ).
Intensity: 17.9/10.6 A.
Performance: 85.5%
Continuous service: S1.
Protection grade: IP55.
Mounting type: B5 flange
Shaft diameter: Ø38mm
flange diameter: 300mm.
Case size 132 (132S1).
PAM flange: 300/38.
Color: Blue.
Housing material : Aluminum.
Weight: 41 Kg.
CE marked.

For more information, other powers or executions, please consult.
As with all asynchronous electric motors, it is mandatory to install a motor protection switch to prevent damage due to overload.

B5-B14 aluminum engine table

For further information, you can download the technical data sheet by clicking on the "Attached Files" tab. Material for professional use, to be installed in compliance with the regulations in force at the installation site.

Motor intended to be used exclusively as a spare part for machinery and/or automatic systems.

Engine_dimensions

Dimensions of electric motors

Download (700.91KB)

Technical information motors

Technical information on electric motors, dimensions and three-phase and three-phase connections single-phase

Download (1.21MB)

ES-Engine Annex

Download (253.95KB)

Annex engines-FR

Download (262.97KB)

EN-Engine Annex

Download (631.69KB)

Annex motors-PT

Download (249.5KB)

IT-motor annex

Download (628.21KB)

Annex motors-DE

Download (638.45KB)
