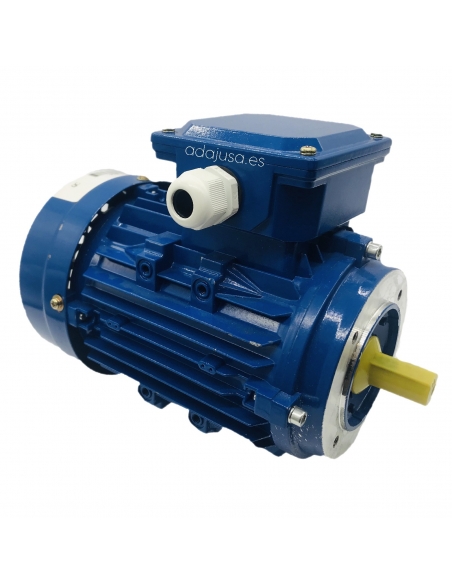

Three-phase motor 1.1Kw 1.5HP 230/400V 1500 rpm IE2 Flange B14

Three-phase electric motor 1.1kW (1.5HP) 230/400V 1500 rpm B14 flange. Made of cast aluminium.
Standard three-phase electric motors for general use, manufactured in accordance with European IEC regulations in aluminium with removable legs. Enamelled copper windings with class F insulation. The casing is closed and has a seal on the output shaft which gives it a degree of protection IP55.

characteristics:

• Manufacturer/Importer: Motorseg/ ALREN
• Reference: ALH90S4B144E2
• Motor type: asynchronous squirrel cage.
• Efficiency: IE2
• Voltage: 230/400 V. III. 50/60 Hz.
• Number of poles: 4.
• Revolutions: 1500 (1400).
• Power: 1.1 Kw (1.5 HP ).
• Intensity: 4.74/2.75 A.
• Performance: 78%
• Continuous service: S1.
• Protection grade: IP55.
• Mounting type: B14 flange
• Shaft diameter: Ø24mm
• flange diameter: 140mm
• Case size .
• PAM flange: 140/24
• Color: Blue.
• Housing material : Aluminum.
• Weight: 12 Kg.
• CE marked.

For more information, other powers or executions, please consult.
As with all asynchronous electric motors, it is mandatory to install a motor protection switch to prevent damage due to overload.

For further information, you can download the technical data sheet by clicking on the "Attached Files" tab. Material for professional use, to be installed in compliance with the regulations in force at the installation site.

Motor intended to be used exclusively as a spare part for machinery and/or automatic systems.
