T- Elbow union diameter 50mm reduction 32mm - Sicomat
T- Elbow union diameter 50mm reduction 32mm - Sicomat

T- Elbow union diameter 50mm reduction 32mm - Sicomat

€36.47 Tax included

€30.14 tax excl.

"T" Elbow union for 50mm outer diameter tube with reduction for 32mm tube, body and nut made of nylon. Fitting for pipe branches, with a quick coupling system that guarantees easy assembly and design versatility in networks and installations of compressed air, vacuum and inert gases.


Reference: R217.050.032




Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

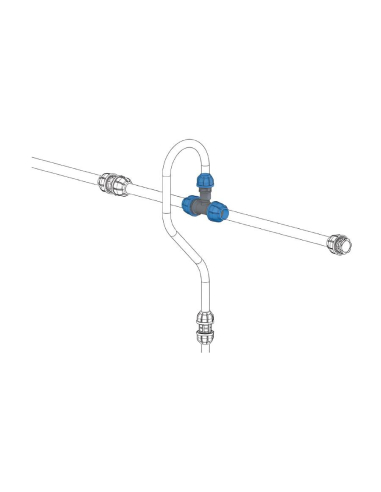

Intermediate bypass fitting for 50mm outer diameter tube and reduction for 32mm tube, black nylon body and blue nylon nut, NBR O-ring. This type of branch fitting allows a simple and quick union of sections of pipes of different diameters in networks and installations of compressed air, vacuum and inert gases such as nitrogen by having a quick coupling system, without the need to weld or tighten the connections. ferrules. It allows the passage of total air avoiding pressure losses. Maximum working pressure 12.5 bar .





Characteristics:

  • Manufacturer/Supplier: Sicomat/Metalwork
  • Reference: R217.050.032
  • Fitting type: "T"
  • Pipe diameter: 50mm
  • Reduction diameter: 32mm
  • Material: Nylon (Body: Black Nylon / Nut: Blue Nylon)
  • Clamping ring: AISI 301 Stainless steel
  • Retention: NBR
  • Application: Compressed Air / Vacuum / Nitrogen
  • Maximum pressure conditions: -0.8 to 12.5bar
  • Temperature conditions: -20ºC to +70ºC
  • Dimensions: A = 86.5mm; B = 225mm ; C= 62mm; D=187mm
  • Weight: 670g
  • All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.








Material for professional use, install in compliance with the regulations in force at the installation site.
