Air intake Size 1 1/4 4 ways Syntesi - Metal Work

€27.06 Tax included

€22.36 tax excl.

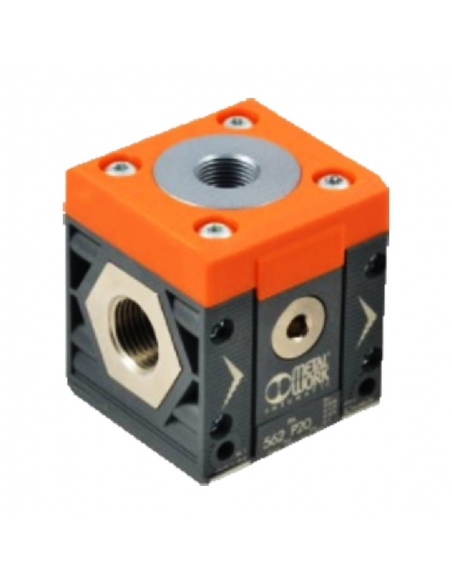

Air intake size 1 Syntesi 1/4" 4 ways

Connection element that is mounted between two Syntesi modules to be used as an air intake.

Reference: 5612P202


metal work logo

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

Air intake size 1 Syntesi 1/4" 4 ways

Connection element to be mounted between two Syntesi modules. The 4-way version, in technopolymer, has threaded ports on each side.
This gives us 4 additional air vents to use as required. All Syntesi modules come with two threaded ports, one at the front and one at the rear, to be used as an air intake.

Reference: 5612P202

 Characteristics:

  • Air intake flow at 6.3 bar (0.63 MPa; 91 psi) ∧P 1 bar (0.1 MPa; 14 psi) Nl min: 500-2000
  • Maximum pressure: 15 bar
  • Min/max temperature at 10bar; 1MPa; 145psi: -10 to 50ºC
  • Weight: 100g

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
