Active carbon filter Size 2 Syntesi Metal Work - ADAJUSA
Active carbon filter Size 2 Syntesi Metal Work - ADAJUSA

Active carbon filter 3/8 semi-automatic purge Syntesi series - Metal Work

€103.64 Tax included

85.65 tax excl.

5623C103

Active carbon filter 3/8 RMSA Size 2 achieves the highest standard of purification possible in industrial applications. for retention of solid or liquid impurities from the air compressor. Syntesi group.

Reference: 5623C103

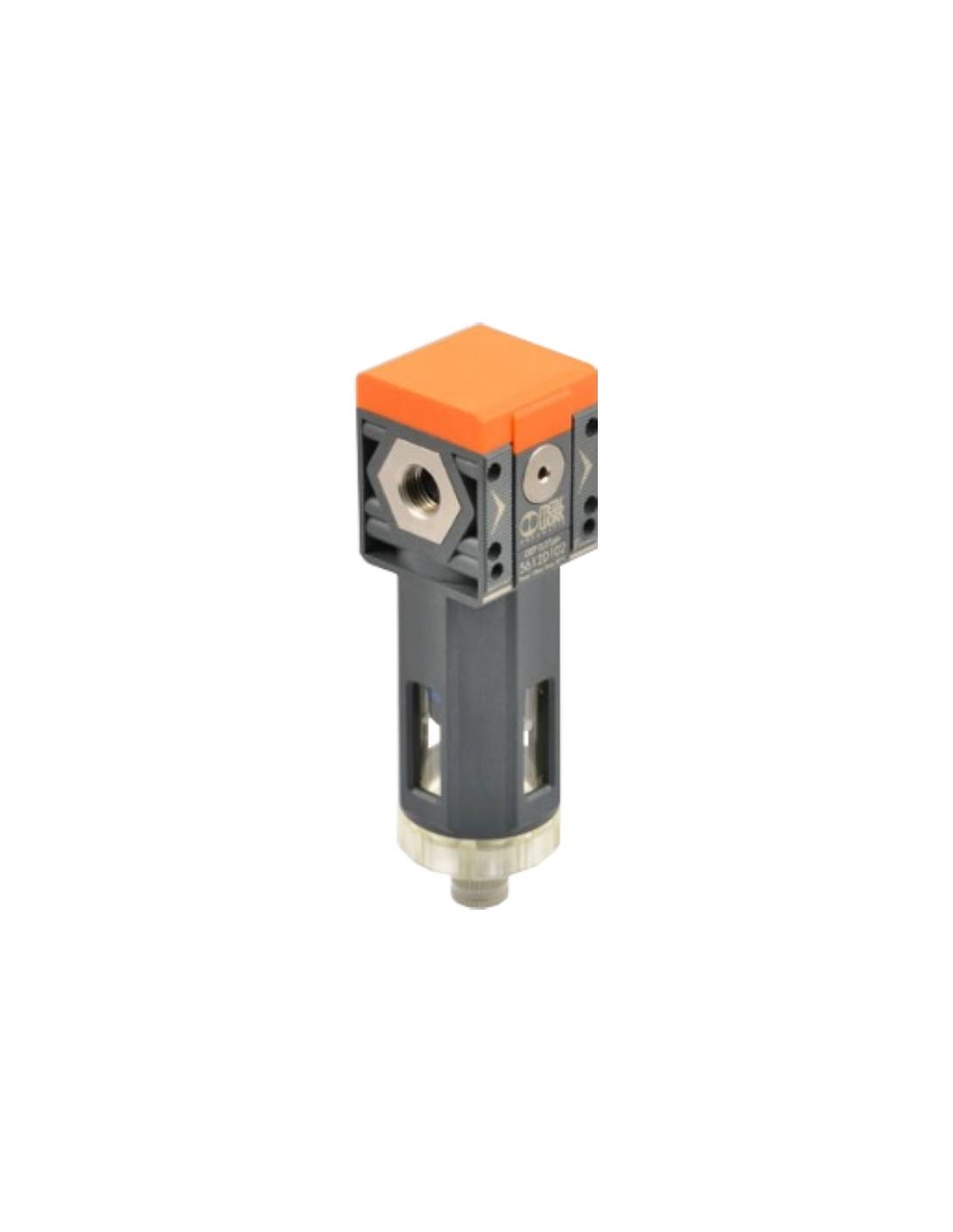

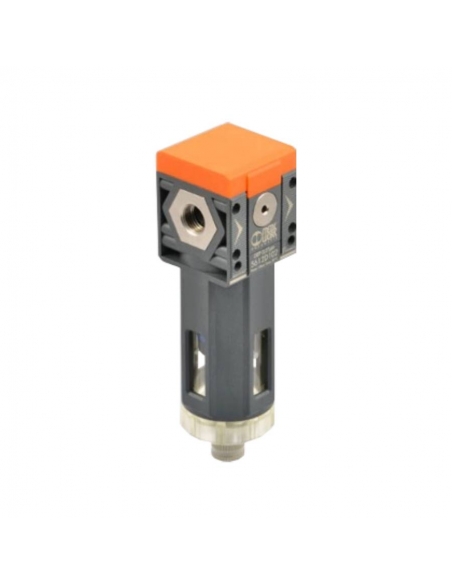

active carbon filter schememetal work logo Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


The activated carbon filter system achieves the highest standard of purification possible in industrial applications. for retention of solid or liquid impurities from the air compressor. Removes all traces of oils, solvents and hydrocarbons, and eliminates unpleasant odours.

RMSA condensate discharge, manual condensate drain and automatic drain when pressure is removed.

Characteristics:

  • Manufacturer: Metalwork
  • Manufacturer reference: 5623C103
  • Threaded drive: 3/8"
  • Group Size: Size 2
  • Maximum inlet pressure (bar/Mpa/psi): 13 / 1.3 / 188
  • Recommended flow rate at 6.3 bar (0.63 MPa; 91 psi) (Nl/min) : 800
  • Advised flow at 6.3 bar (0.63 MPa; 91 psi) (scfm) : 28
  • Fluid: Filtered or purified compressed air
  • Flow rate of additional air intakes at 6.3 bar (Nl/min): 1500
  • Wall fixing screws: Number 2 M5 screws
  • Mounting position: Any.
  • Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
