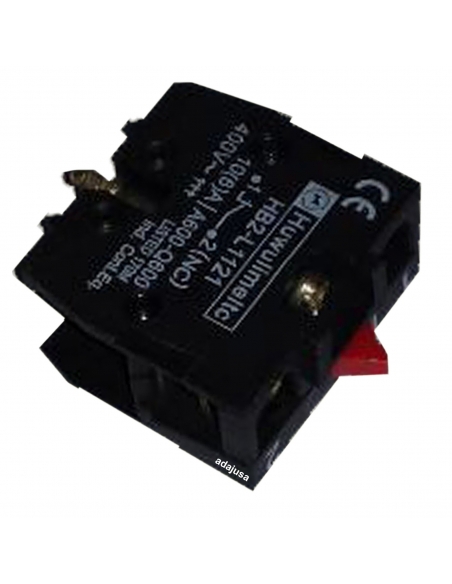

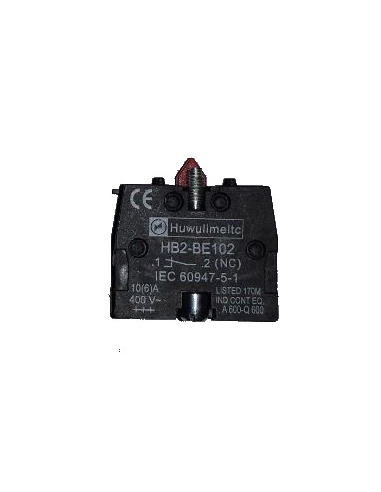

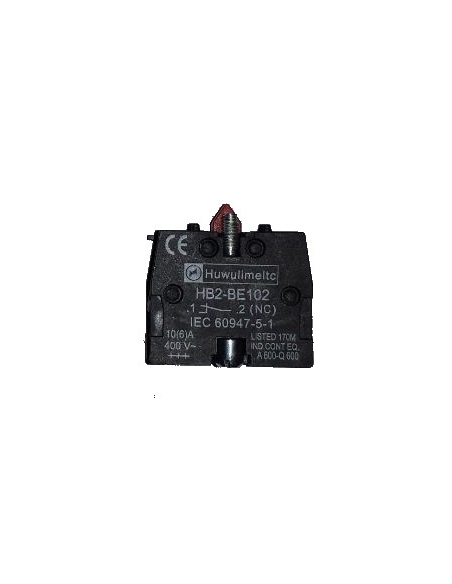

Closed contact for pushbutton box

€1.00 Tax included

€0.83 tax excl.

BE-102 fondo caja

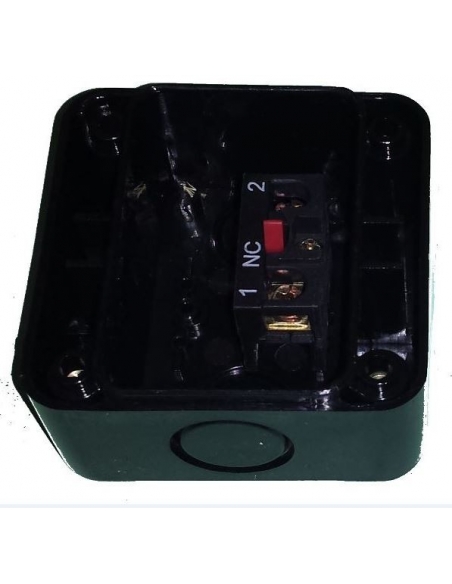

Closed contact (NC) to be mounted on 50mm thick push button boxes. Mounting on the bottom of the box.

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Description
Frequently questions

Closed contact (NC) to be mounted on the bottom of the push button boxes. The boxes must be 50mm thick. They are not valid for mounting directly on the pushbuttons.

Characteristics:

Manufacturer/Supplier: Traword
Rated working current (Ith): 10A.
Working current: 50/60Hz (48V): 8A.

50/60Hz (110V): 6A.
50/60Hz (220-240V): 4.5A.
50/60Hz (380-415V): 2.5A.
DC13 (24V): 2.5A.
DC13 (48V): 1.3A.
DC13 (110V): 0.6A.
DC13 (220-240V): 0.3A.

Limit voltage supported in 1m: 2.5 Kv.
Contact resistance: 50 mOhm.
Number of electrical operations:

Mounted on common and emergency pushbuttons: 1.000.000
Others: 100.000

Number of mechanical operations:

Common and emergency pushbuttons: 500,000
Others: 100,000

Degree of protection: IP20

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Harmony XB4 Contact element nc SCHNEIDER | ADAJUSA | price

Harmony XB4 Contact element nc SCHNEIDER | ADAJUSA | price 2

Buttons

Closed contact NC Harmony XB4 - SCHNEIDER

€3.06 (€2.53 tax excl.)

Closed contact (NC) for pushbuttons and complete selector switches of the HARMONY XB4 metal series and the HARMONY XB5 plastic series. It is easily installed or replaced by means of a clip and is connected to the control circuits by means of simple screw terminals. Reference: ZBE102 Representative image for illustrative purposes, the item supplied will...

NYG3-CE1 pushbutton Open contact | ADAJUSA | price

Buttons

Open contact NO screw connection - NY Series

€1.26 (€1.04 tax excl.)

Open contact for plastic pushbuttons and selector switches, suitable for Tracon's NYG3 and NYK3 series. Screw connection. Reference: NYG3-CE1 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Full diameter emergency pushbutton 30 PPFN1R3N with nc contact Giovenzana adajusa

Full diameter emergency pushbutton 30 PPFN1R3N with nc contact Giovenzana adajusa 2

Pack

Emergency pushbuttons in plastic - Giovenzana

Emergency pushbutton 30mm full NC - Giovenzana

Giovenzana Internacional B.V.

PK-GIPPFN1R3N-NC

€11.28 (€9.32 tax excl.)

Emergency pushbutton diameter 30mm,with unlocking by turn. Diameter of the drill for fixing of 22.5mm. Support for contacts included, allows the assembly of up to 3 contacts, both open and closed. The front visual indication for an easy indication of the situation of the push button, whether it is activated or not.Includes a nc (NC), screw cable fixation....

View

Emergency pushbutton diameter 40 plastic with key | ADAJUSA

Stop and emergency pushbuttons

Screen stop pushbutton 40 with full key

€5.45 (€4.50 tax excl.)

Stop button type mushroom-head in plastic material, diameter 40mm with interlock, key release, 1 NC contact. The supply includes the complete push button with one closed contact.Reference: XB2-ES142 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

40mm illuminated plastic emergency push button NYG3-ETR | ADAJUSA | price

Stop and emergency pushbuttons

40mm emergency push button with turn release indicator - NY Series

€8.14 (€6.73 tax excl.)

40mm diameter emergency push button with twist interlocking and release, closed contact (NC) . Mushroom-type push button with visual status indication and STOP marking, made of plastic, mounting hole diameter 22 mm. Intended for mounting on machinery control panels and control boxes in general. It offers high protection on the front side, IP65. The supply...

Harmony XB5 full body contact na SCHNEIDER | ADAJUSA : price

Harmony XB5 full body contact na SCHNEIDER | ADAJUSA : price 2

Buttons

Open contact NO (full body) Harmony XB5 - SCHNEIDER

€4.55 (€3.76 tax excl.)

Open contact (NO) with mounting collar for mounting on pushbutton and selector heads of the plastic HARMONY XB5 series. It is easily installed or replaced by means of a clip and connected to the control circuits by means of single screw terminals. The delivery includes the open contact and the fixing base for connecting the XB5 heads with the contact...

Harmony XB4 full body contact 1na+1nc SCHNEIDER | ADAJUSA : price

Harmony XB4 full body contact 1na+1nc SCHNEIDER | ADAJUSA : price 2

Buttons

Contacts open and closed NO+NC (full body) Harmony XB4 - SCHNEIDER

€8.43 (€6.97 tax excl.)

Contacts open and closed contact (1 NO + 1 NC) with fixing collar for mounting on HARMONY XB4 metal series pushbutton and selector heads. It is easily installed or replaced by means of a clip and connected to the control circuits via single screw terminals. The scope of delivery includes open contact, closed contact and the fixing base for connecting the...

Closed contact NC screw connection - Giovenzana

Buttons

Closed contact NC screw connection - Giovenzana

Giovenzana Internacional B.V.

€4.79 (€3.96 tax excl.)

Block of nc (NC) to be installed in pushbuttons and control of the giovenzana brand. Contact connection by screw, red color. Reference: PL004001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Open contact

Open contact 2

Buttons

Open contact

€0.74 (€0.61 tax excl.)

Open contact (NO) to be mounted on metal or plastic electric pushbuttons. Reference: NG22-BE101 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Mushroom stop push button 1NC diameter 40 metallic XB4 SCHNEIDER | ADAJUSA | price

Mushroom stop push button 1NC diameter 40 metallic XB4 SCHNEIDER | ADAJUSA | price 2

Stop and emergency pushbuttons

Emergency stop push button diameter 40 (push-turn) Harmony XB4 - SCHNEIDER

€19.83 (€16.39 tax excl.)

Emergency stop push button, red mushroom 40 mm diameter, 1 closed contact, metal body and chrome-plated edge. Mechanical interlock and twist release. Delivery includes the complete pushbutton with 1 NC contact. Mounting diameter 22.5 mm. Cable fixing by screw.Order No.: XB4BS8442 Representative image for illustrative purposes, the item supplied will...

Red 90 diameter screen push box

Red 90 diameter screen push box 2

Stop and emergency pushbuttons

Red 90 diameter mushroom-head push box - Giovenzana

Giovenzana Internacional B.V.

€16.94 (€14.00 tax excl.)

Large diameter mushroom-head push-buttonbox, 90mm, momentary action and red. Ideal for emergency stop applications where high accessibility is required. 1 positive opening closed contact (NC). Red screen pushbutton with axial drive (front), momentary action (no interlocking) Pushbutton color: red Ref: PG1M9W01

Metallic emergency stop pushbutton diameter 40 complete (push-turn)

Stop and emergency pushbuttons

Metal stop pushbutton type mushroom-head diameter 40 without interlocking

€3.64 (€3.01 tax excl.)

Stop pushbutton mushroom-head diameter 40mm without latching, 1 closed contact, metal body, chrome-plated edge. Delivery includes the complete push button with one closed contact.Part number: NYGBC42P Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

Open contact for push-button box

Open contact for push-button box 2

Stop and emergency pushbuttons

Open contact for pushbutton box

BE-101 fondo caja

€1.00 (€0.83 tax excl.)

Open contact (NA) to be mounted on 50mm thick push button boxes. Mounting on the bottom of the box. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

40mm plastic emergency push button NYG3-ETR | ADAJUSA | price

Stop and emergency pushbuttons

40mm emergency push button with twist release - NY Series

€6.16 (€5.09 tax excl.)

40mm diameter emergency pushbutton with twist interlocking and release, closed contact (NC) . Mushroom-shaped pushbutton made of plastic, mounting hole diameter 22 mm. Intended for mounting on machinery control panels and control boxes in general. It offers high protection on the front side, IP65. The supply includes the complete pushbutton with one...

Ba9s NYG3-SOC lamp holders | ADAJUSA | price

Buttons

Ba9s lamp holder Block - NY Series

€1.31 (€1.08 tax excl.)

Lampholder Block for Ba9s sockets for Tracon's NYG3 and NYK3 series illuminated plastic pushbuttons and selector switches. Screw connection. Reference: NYG3-SOC Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

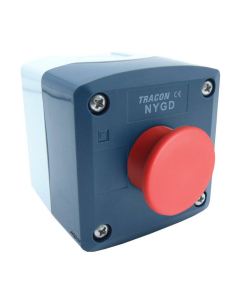

Button box with mushroom stop button Ø40 NYGBC42PT| ADAJUSA | price

Pack

Button boxes with controls already installed

Box with metal stop mushroom push button Ø40 complete - NYG Series

€8.65 (€7.15 tax excl.)

Box with non- interlocking mushroom stop button, diameter 40mm. Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBC42PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Customers who bought this product also bought:

White metal pushbutton (inscription "→") full contact (NA)

Metal electric push buttons Ø22mm

White metal pushbutton (with inscription "→") full open contact (NO)

€3.61 (€2.98 tax excl.)

White metal pushbutton (with inscription → with an open contact (NO). The supply includes the complete button with an open contact. Reference: NYGBA3341 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Three-phase cam switch 20A Yellow-red control

Three-phase cam switch 20A Yellow-red control 2

-20%

Rotary cam switches 4-poles

Tetrapolar cam switch 4 poles 32A Yellow-red control

€16.94 (€14.00 tax excl.) €21.18

Rotary cam switch, switch main four-pole 32 A. 0-I, with yellow-red drive, lockable in O position. Suitable for interruption, connection and switching of electrical circuits as well as direct starting of motors and main switch in machines. Representative image for illustrative purposes, the item supplied is subject to the specifications indicated.

Front contacts (2NA) for motor guard circuit breaker - Schneider

Motor guard circuit breakers motor protection

Front contacts NA and NC for GVAE11 motor circuit breaker - Schneider

€6.41 (€5.30 tax excl.)

Contact block for circuit breaker 1 open contact and 1 closed contact (NA+NC)), front mount. For TeSys GV2 Schneider circuit breakers Reference: GVAE11 Representative image for illustrative purposes, the supplied article is subject to the specifications indicated.

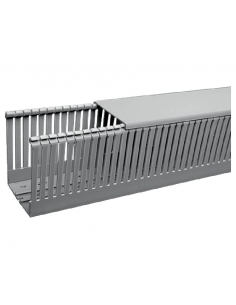

Slotted gutter 30x30 strip of 1 m. | ADAJUSA

Slotted gutter

Slotted Gutter 30x30 strip of 1 m.

€6.52 (€5.39 tax excl.)

30x30 slotted Gutter in 1m strips. of length. Ref: CANR303001 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Crimping tool for toe 0.25 to 2.5mm2 9102-LT | ADAJUSA | price

Crimping tool for toe 0.25 to 2.5mm2 9102-LT | ADAJUSA | price 2

Tools

Crimping tool for toe from 0.25 to 2.5 mm2

€10.70 (€8.84 tax excl.)

Easy-to-use crimping tool for single and double insulated and uninsulated toe , with non-slip handle and high-quality clamp . Suitable for crimping toe with cable cross-sections from 0.25 to 2.5 mm 2 . Rectangular crimping shape. Reference: 9102-LT Representative image for illustrative purposes, the item supplied will correspond to the specifications...

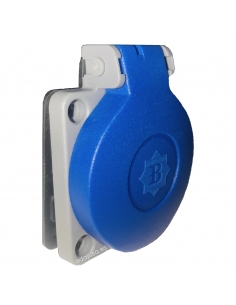

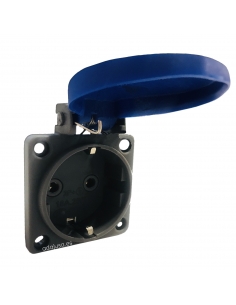

16A 2P T schuko plug socket recessed horizontal IP-54
