€3.59 Tax included

€2.97 tax excl.

MY4NJ-24Vcc

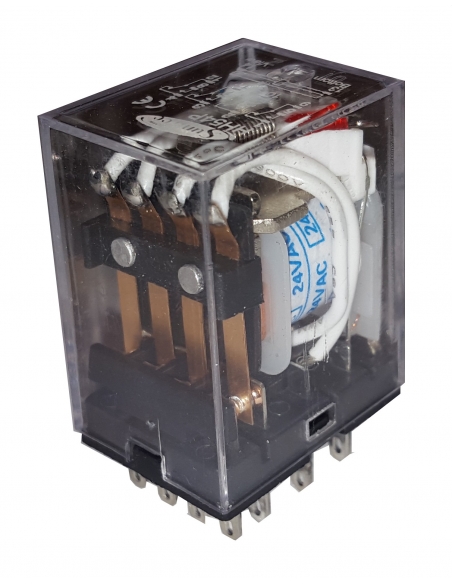

Relay 4 contacts 24Vdc, with LED status indication, 2 connected contacts (SPDT). For general purpose and industrial applications, ability to handle medium loads.

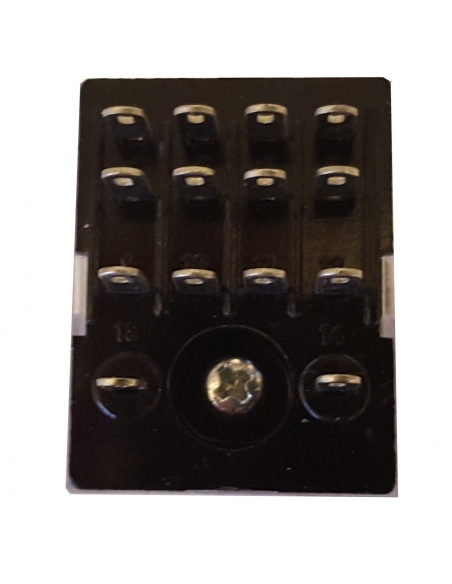

Flat pin for connection on base or weld directly.

Ref: MY4NJ-24Vcc

Diagrama eléctrico relé 4 contactos MY4N1

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Out of stock

1 question about the product

Relay with 4 switch contacts (SPDT), with status indication by LED pilot, with flat pins to be inserted soble socalo or weld directly the cables. Designed for general purposes and very suitable for applications on maneuver panels, machine tools in general, direct load switching and switching maneuvers.

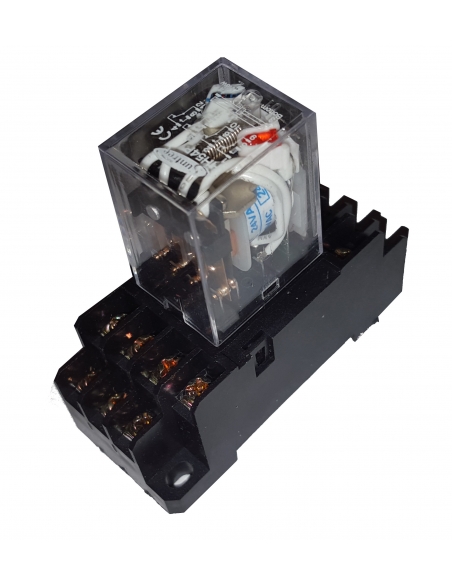

Base / Relay socket not included in the product.

specifications:

Manufacturer/Supplier: Denor
Ref: MY4NJ-24Vcc
Number of contacts: 4 switched.
Dimensions: 27.5x21.5x32mm.
Mounting: on base or snuk.
Working voltage: 24Vdc.
Contact capacity: 3A 250Vac, resistive load.
Maximum power of the contaco: 1100VA, 120W (Resistive Load).
Minimum contact capacity: 1 mA 5Vdc.
Light indication: By LED.
Coil consumption: 36.9 mA.
Response time: 20 mSec.

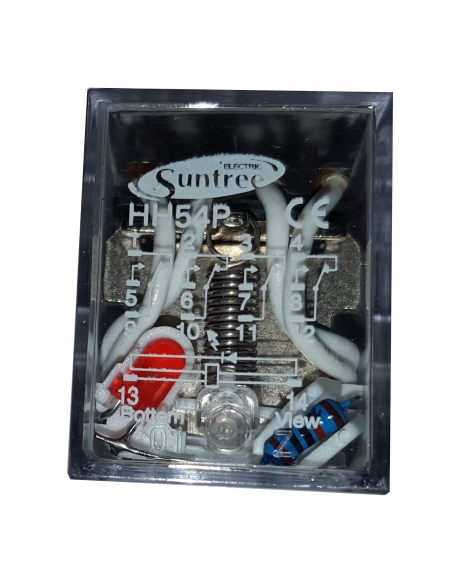

Equivalent type: MY4N1DADC24 - HHC68B4ZDC24 (HH54PZ) / 50MY4NJ-024DC

Dimensiones reles MY

Pinout rele 4 contactos MY4N1

Material for professional use, install in compliance with the regulations in force at the installation site.

Relay data sheet

Download (487.96KB)

Questions

Question

En el precio incluye el zocalo...

Answer

Buenas tardes,

Ninguno de los reles incluye el precio del zocalo.

Saludos

Pedro Bernal on 02/13/2018 13:19:27
