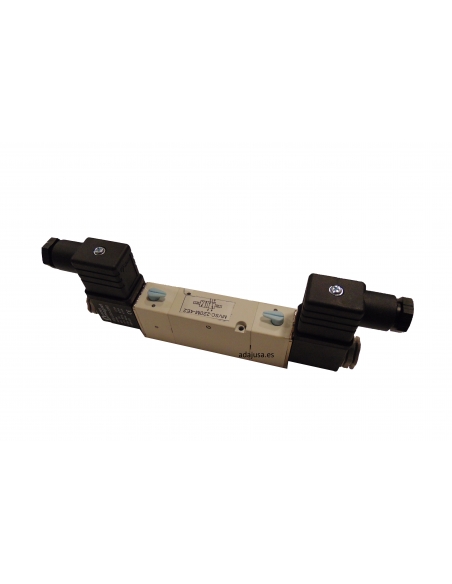

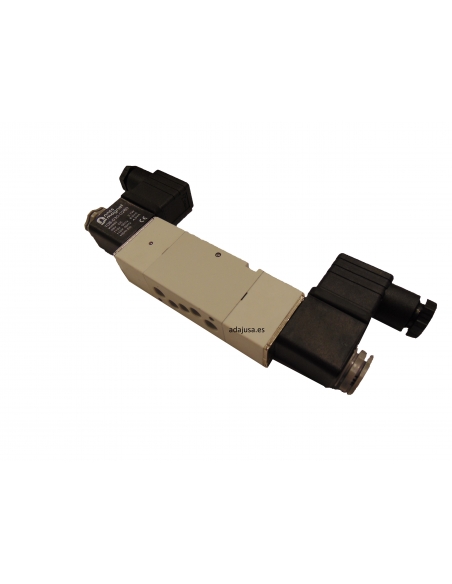

Solenoid valve 1/4 5/2 ways bistable 230 Vac on plate - Mindman

€71.68 Tax included

€59.24 tax excl.

Biletable 5-way pneumatic solenoid valve for mounting on base plate, with connector and 230Vac operating voltage coil.

Reference: 281MVSC220M4E21

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve 1/4 of 5 bistable ways, to be mounted on base plate. For general and industrial applications.

The solenoid valve is fixed on the motherboard by 4 screws, no connection is on the body of the electric valve, which facilitates the cleaning of the installation and easy maintenance.

The supply includes:

  • Electrovalvula 1/4 5/2 bistable
  • 220Vac-240Vac 6VA voltage coil
  • Connector size 22

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: MVSC-220M-4E21
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 2 to 7 bar.
  • Minimum working pressure: 2 bar
  • Working temperature: -5ºC to 50ºC.
  • Effective surface: 18mm².
  • Flow: 799 Nl/min.
  • Manual drive: Yes.
  • Voltage: 220-240 Vac
  • Power: 6VA

Dimensiones válvulas sobre placa base Mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
