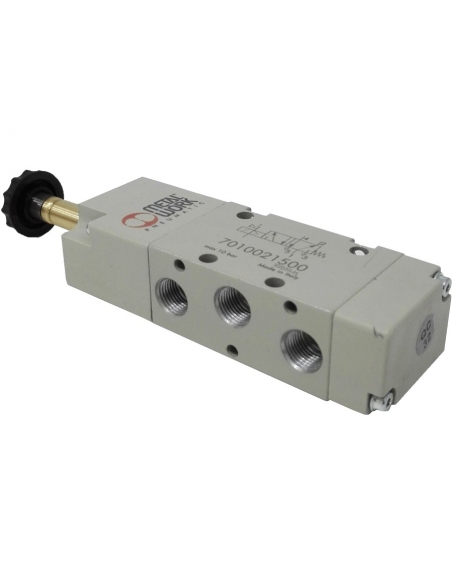

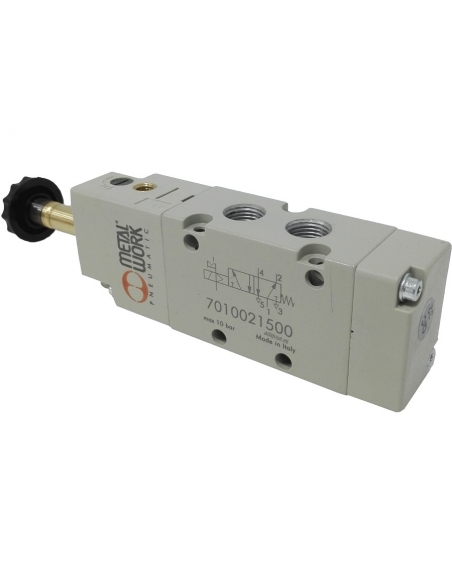

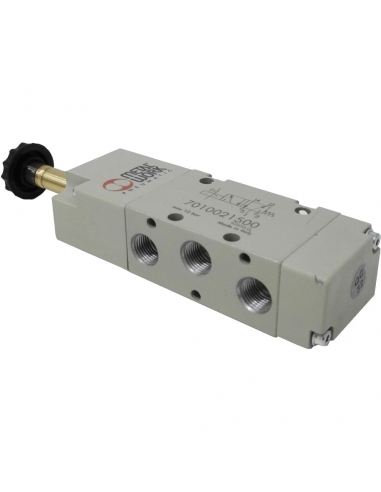

Solenoid valve 1/8 5-way monostable coil-assisted- Metal Work

€63.45 Tax included

52.44 tax excl.

7010021500

1/8" electrovalves of 5 ways assisted, for pneumatic applications of industrial or general use. Coil and connector not included.
Reference: 7010021500
simbolo electroválvula neumática 5 vías asistida
Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Solenoid valve 1/8 5 ways monostable assisted without coil. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

Characteristics:

Manufacturer: Metal Work
Reference: SOV25SES00 Code: 7010021500.
Operating pressure bar: Empty ÷ 1
Minimum assist pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
Power: 2 W (DC) 3.5VA (AC
Voltage tolerances %: -10 ÷ +15

electrovalvula 1/8-5/2
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
