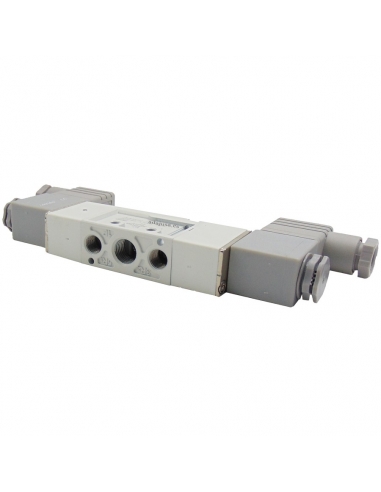

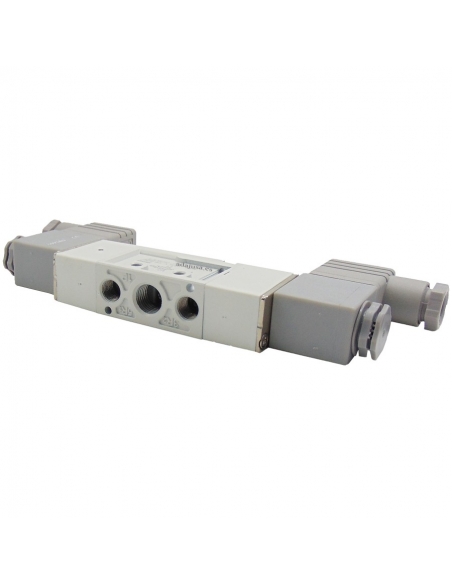

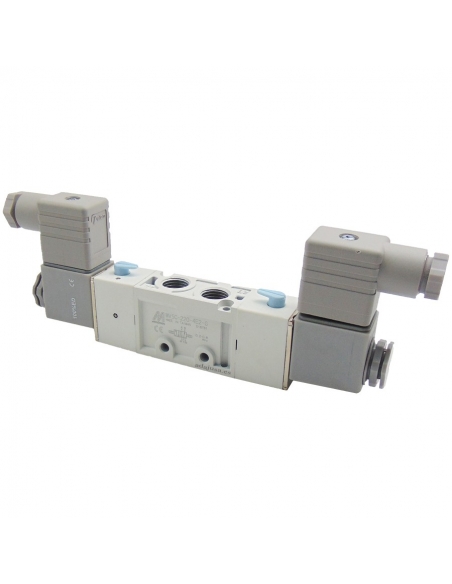

Pneumatic solenoid valve of 1/4 5 ways bistable, with coil of 110Vca. For general and industrial applications.
The supply of the solenoid valve includes:
- Solenoid valve 1/4-5/2.
- 2 Coil 110Vca
- 2 x 22mm connector
Specifications:
- Solenoid valve manufacturer: Mindman.
- Reference: MVSC-260-4E2-8A 1/4 110Vca
- Thread type: G 1/4" (Threaded exhausts G 1/8").
- Coil voltage: 110Vac.
- Coil power: 2.5W.
- Fluid type: Pressurized air, with or without lubrication.
- Solenoid valve working pressure: 2 to 8 bar.
- Test pressure: 1MPa
- Working temperature: -5ºC to 50ºC.
- Effective surface: 18mm².
- Weight: 314 g
Material for professional use, install in compliance with the regulations in force at the place of installation.
To expand the information you can download the technical sheet by clicking on the "Attachments" tab
