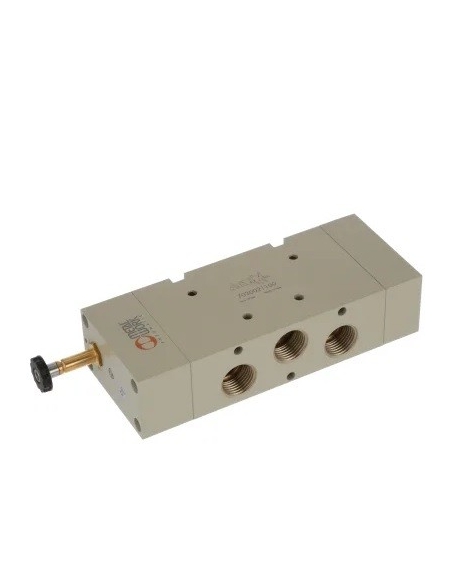

Solenoid valve 1/2 5 ways monostable assisted - Metal Work

€171.71 Tax included

€141.91 tax excl.

7030021500

Solenoid valve 1/2 5 ways monostable assisted, closed (NC), for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.

Reference: 7030021500

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Electrovalve 1/2 5-way mechanically assisted spring-assisted solenoid acionamiento, for industrial pneumatic applications or general use. Supports coils of Metal Work size 22mm with Ø8mm core. The supply does not include coil or connector.

Made of aluminum, compact size and high flow of air passage, short response time.

This eléctrovalvula, when assisted, needs pressure in the pilot's intake, which is independent of the valve sockets, this allows to control fluids with very low pressures and even be used for vacuum applications.

Manufacturer: Metal Work
Reference: 7030025100 SOV 45 SES OO

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

Valve Schematic

Valve schematic and description

Download (597KB)

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
