Regulator for water 1/8 0-8 bar series FRL MINI...

Regulator for water 1/8 0-8 bar series FRL MINI - Aignep

Regulator for water 1/8 0-8 bar series FRL MINI - Aignep

€17.25 Tax included

€14.26 tax excl.

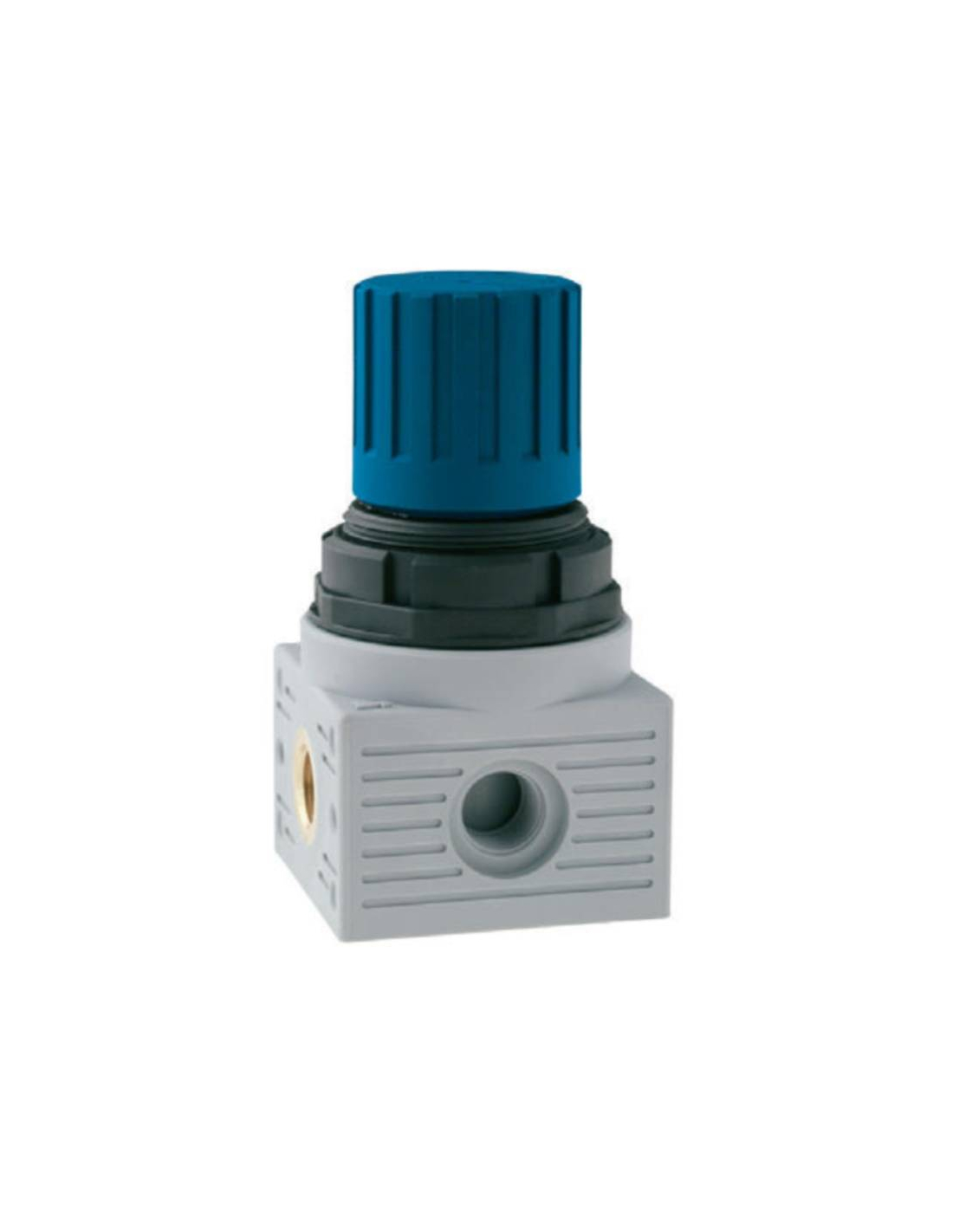

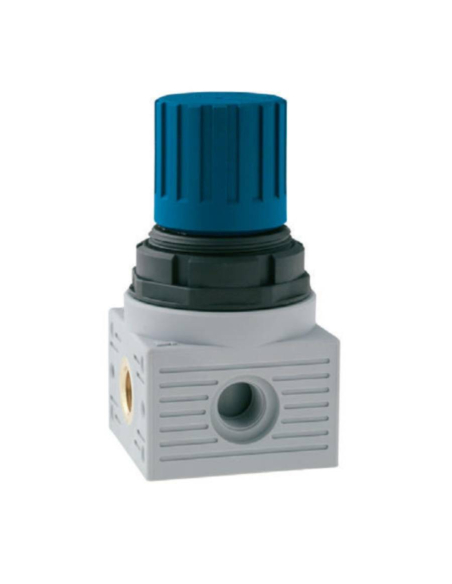

Regulator 1/8water pressure regulator, range 0-8 bar, technopolymer body. Allows stability of the outlet pressure at the preset pressure.

Series: FRL mini
Reference: T080002030000

Simbolo neumatico filtro Adajusa
Logotipo Aignep Pictogramas normativa grupos filtraje FRL Mini Aignep Adajusa

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Regulator 1/8" technopolymer body, body madeof high resistance technopolymer, and with metallic terminations. It allows stability of the outlet pressure to the preset pressure starting from an equal or higher inlet pressure.

Among the main characteristics of this filtering group, it has a high flow performance compared to its reduced size and weight, satisfying the current demand for miniaturization and performance. Manufactured in technopolymer and metallic terminations.

Characteristics:

Manufacturer: Aignep
Manufacturer's part number: T080002030000
Threaded actuator: 1/8"
Regulating range: 0-8 bar
Maximum inlet pressure: 15 bar
Fluid: Water
Mounting position: Vertical.
Working temperature: 5 to +50ºC.
Reference standard: PED 2014/68/EU

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab

FRL Mini Series Catalog

FRL Mini series filter groups catalog

Download (2.08MB)
