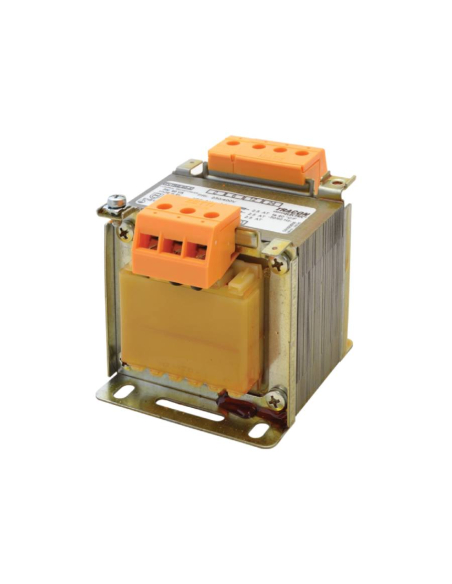

Safety transformer 230-400V 24-230V 60VA TVTRB-60-F ADAJUSA | price
Safety transformer 230-400V 24-230V 60VA TVTRB-60-F ADAJUSA | price

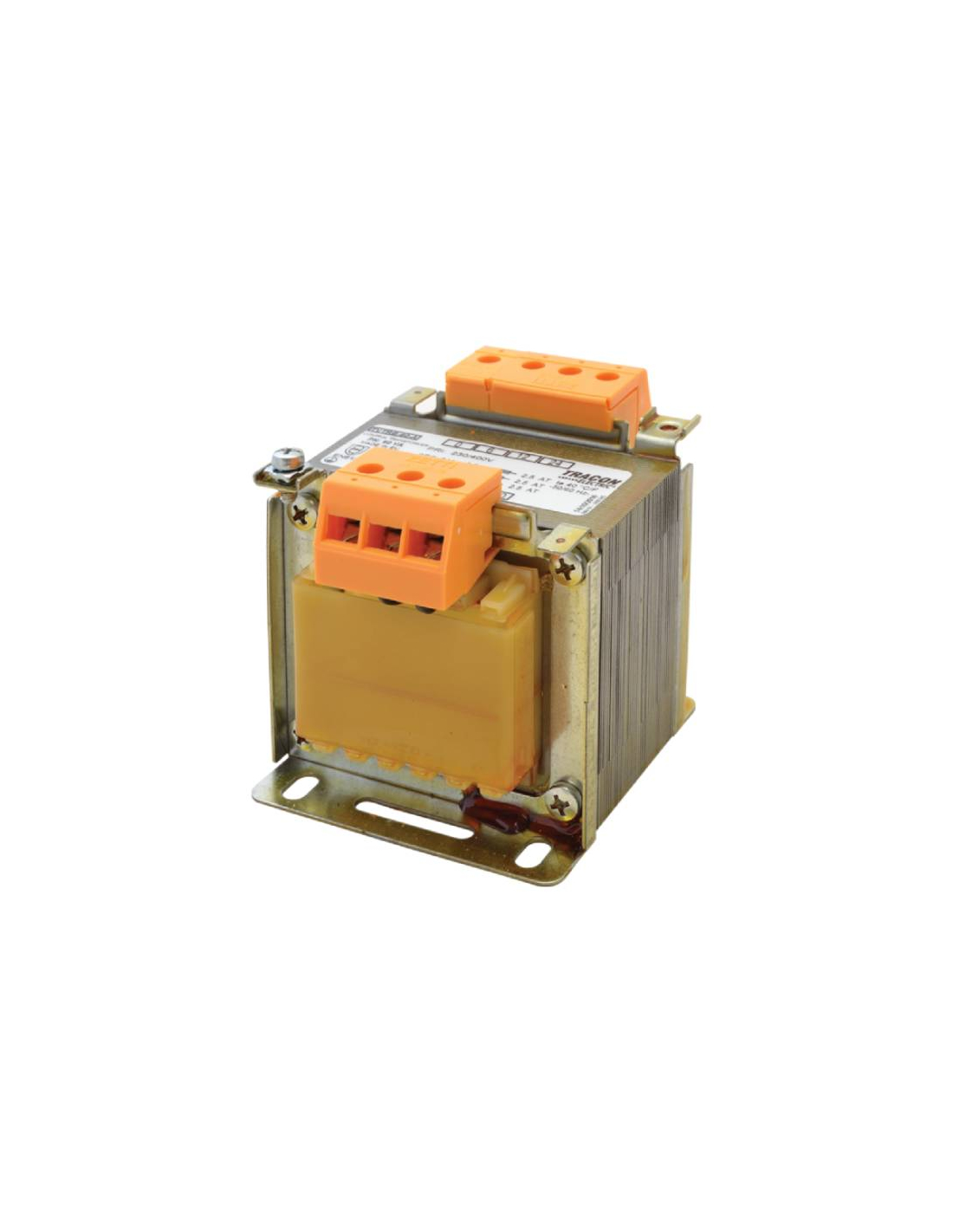

Transformer 60VA E:230-400V S:24-230V IP-00

€43.16 Tax included

€35.67 tax excl.

TVTRB-60-F
Single-phase transformer for operation, command and control, as well as general uses. Input voltage 230-400Vac with two possible output voltages 24-230Vac. Nominal power of the transformer 60VA (*) for the 230Vac output. Protection degree IP00.

(*) Power varies depending on the secondary voltage socket. Power supplied depending on the output voltage: 24 V - 6.2VA / 230 V - 60VA .


Reference: TVTRB-60-F


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns

Single-phase transformer for command, maneuver and control, and general low voltage uses. Input voltage of 230-400Vac with two possible output voltages 24 -230Vac . The power provided by the transformer is 60VA for the output voltage of 230Vac.

The maximum output intensity provided is 0.26A. The nominal power of the transformer refers to the value of the highest secondary voltage, so the powers supplied vary depending on the output voltage being 24 V - 6.2VA / 230 V - 60VA .

The main application of this type of transformer is for command and control in industrial automation, and for general applications. They are intended to supply electrical devices where galvanic isolation between circuits and/or voltage level adaptation is required. Protection degree IP00. Manufactured according to the requirements of EN 61558-1, EN 61558-2-4 standards.



Technical characteristics:
  • Manufacturer/Supplier: TRACON
  • Reference: TVTRB-60-F
  • Transformer type: Single-phase
  • Primary voltage: 230 - 400Vac
  • Secondary voltage: 24 - 230Vac
  • Transformer rated power: 6.2 - 60VA
  • Maximum intensity in the secondary (In): 0.26A
  • Frequency: 50/60 Hz
  • Protection: IP-00
  • Protection class: I
  • Terminal protection: IP20
  • Connection: Screw-faston terminals
  • Winding: copper wire
  • Heat resistance grade: E (+120ºC)
  • Weight: 1.5Kg
  • Regulations: EN61558-1, EN61558-2-4










For further information you can download the technical sheet by clicking on the "Attached Files" tab.
Professional use material, install in compliance with the regulations in force at the installation site.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Three-phase autotransformer 230/400V 1 KVA reversible with box Three-phase autotransformer 230/400V 1 KVA reversible with box 2
Single-phase and three-phase autotransformers

Three-phase 230/400V 1 KVA reversible autotransformer with box

MANUMAG
ATT1
€218.59 (€180.65 tax excl.)
Three-phase 1kVA reversible autotransformer, with a metal box that provides an IP23 protection degree, allows the adaptation of voltage from 230Vac three-phase to 400Vac three-phase or 400Vac three-phase to 230Vac three-phase. It also generates neutral. It allows to adapt the tension in machinery, motors, pumps, etc., in an economical way.Reference:...
Single-phase autotransformer 125 220 200VA IP-20 AMN Series| ADAJUSA | price Single-phase autotransformer 125 220 200VA IP-20 AMN Series| ADAJUSA | price 2
Single-phase and three-phase autotransformers

Single-phase autotransformer 200VA 125/220Vac IP-20 Series AMN

MANUMAG
AMN02120201
€22.43 (€18.54 tax excl.)
200VAsingle-phase reversible autotransformer for voltage adaptation between 125 and 220Vac, IP-20 protection degree. It allows to increase or decrease the mains voltage in order to provide the necessary voltage to domestic equipment, such as household appliances, for intermittent use. Supplied with cable with two European plugs.Reference: AMN02120201...

16 other products in the same category:

Single-phase transformer neutral generator 4KVA 230/230V+N TRAN4000 | ADAJUSA | price
Specially manufactured material
Single-phase transformers

Single-phase neutral generator transformer 4 KVA 230/230+N with IP23 enclosure

Generico-SEV
TRAN4000
€394.23 (€325.81 tax excl.)
4kVA (4000VA) single-phase neutral generator transformer, oriented to those installations where it is necessary to generate an artificial neutral, including two-phase networks. It has an electrostatic screen between primary and secondary, which must be connected to a good quality ground. Mounted in a metallic box with IP-23 protection degree....
Transformer 1600VA E:230/400V S:115/230V Transformer 1600VA E:230/400V S:115/230V 2
Special manufacturing material
Single-phase transformers

Transformer 1600VA E:230/400V S:115/230V

Especial-SEV
MI16003
€271.27 (€224.19 tax excl.)
Transformer single-phase of maneuver for command, control and general uses. The power of the transformer is 1600VA and it is encapsulated in resin. The degree of protection of the transformer is IP-20. This range of transformers has two output voltages 115Vac / 230Vac, each of them selectable by means of jumpers. Reference: MI-1600-3 Representative...
Transformer 200VA E:230/400V S:24V IP-00
Special manufacturing material
Single-phase transformers

Transformer 3000VA E:230-400V S:12V IP-00

Generico-SEV
TR3000 2-4/12
€361.58 (€298.83 tax excl.)
Single-phase switching transformer for command, control, and general uses, with an input voltage of 230-400 Vac and an output voltage of 12 Vac. The transformer has a power output of 3000 VA and an IP00 protection rating. Reference: TR3000 230-400/12 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Transformer maneuver 4000VA 115/230V Transformer maneuver 4000VA 115/230V 2
Special manufacturing material
Single-phase transformers

Transformer 4000VA E:230/400V S:115/230V

Especial-SEV
MI-4000-3
€464.48 (€383.87 tax excl.)
Transformer single-phase of maneuver for command, control and general uses. The power of the transformer is 4000VA and it is encapsulated in resin. The degree of protection of the transformer is IP-20. This range of transformers has two output voltages 115Vac or 230Vac, each of them selectable by means of jumpers. Reference: MI-4000-3...
Transformer 1600VA IP00 special voltages
Special manufacturing material
Single-phase transformers

Transformer 1600VA IP00 voltages as needed

Especial-SEV
TR2-1600-ESP
Starting from €183.22 (€151.42 tax excl.)
Single-phase maneuver transformer for command, control and general uses. The transformer power is 1600VA and with protection level IP00. Primary and secondary voltage can be requested by the customer. The stresses at which transformers can be manufactured are, for the primary between 100 to 500Vac, and for the secondary between 10 and 500Vac. Select...
View
Transformer 40VA E:230/400V S:24V IP-00
Special manufacturing material
Single-phase transformers

Transformer 400VA E:230-400V S:230V IP-00

Generico-SEV
TR400 2-4/23
€92.06 (€76.08 tax excl.)
Single-phase switching transformer for command, control, and general uses, with an input voltage of 230-400 Vac and an output voltage of 230 Vac. The transformer has a power of 400 VA and is IP00 rated. Reference: TR400 230-400/230 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.
DIN rail adapter for single-phase transformers 160-400VA | ADAJUSA | price DIN rail adapter for single-phase transformers 160-400VA | ADAJUSA | price 2
Single-phase transformers

DIN rail mounting adapter for single-phase transformer from 160 to 400VA

MANUMAG
KITDINKF2
€4.48 (€3.70 tax excl.)
Adapter for mounting and fixing on DIN rail IP00 single-phase voltage transformers from 160VA to 400VA. This accessory fits easily onto the back of the transformer allowing a safe and reliable anchoring on the DIN rail.Accessory valid for IP00 single-phase transformers of the TS, TA, TF and TNA series with powers from 160VA to 400VA. Representative image...
3KVA ultra-insulated single-phase transformer with IP23 box
Special manufacturing material
Single-phase transformers

Single-phase transformer 3000 VA 230/230V ultra insulation box IP23

Generico-SEV
TRA3000
€361.05 (€298.39 tax excl.)
Ultra-insulated 3kVA (3000VA) single-phase transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations sensitive...
Single-phase safety transformer 200VA 12V 24V | ADAJUSA | price Single-phase safety transformer 200VA 12V 24V | ADAJUSA | price 2
Single-phase transformers

Transformer 200VA E:230/400V S:12/24V IP20 TS Series

MANUMAG
TS041203201
€54.49 (€45.03 tax excl.)
Single-phase safety transformer with galvanic isolation, power 200VA. Transformer in a highly resistant polymer case that gives it an IP20 protection rating. This range of transformers has two output voltages, 12Vac or 24Vac, each of which can be selected by means of jumpers. Mainly intended to provide a safe and reduced voltage to avoid electrical risks...

Customers who bought this product also bought:

200x155x125mm thermoplastic box with cones and high transparent lid | ADAJUSA
Distribution boxes and envelopes

Thermoplastic box 200x155x125mm transparent high lid cones

Generico-GAE
GG200-CTT
€16.55 (€13.68 tax excl.)
Halogen-free thermoplastic sealed box, walls with cones and high transparent smooth screwed lid . Easy installation that saves time in maintenance work. Degree of tightness IP66. Reference: GG200-CTT Dimensions: 200x155x125mm Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

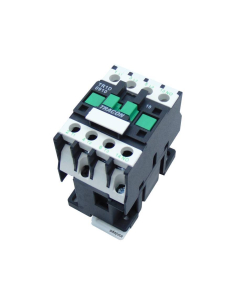

Three-phase 3-pole contactor with 32A coil 400Vac | ADAJUSA | price Three-phase 3-pole contactor with 32A coil 400Vac | ADAJUSA | price 2
