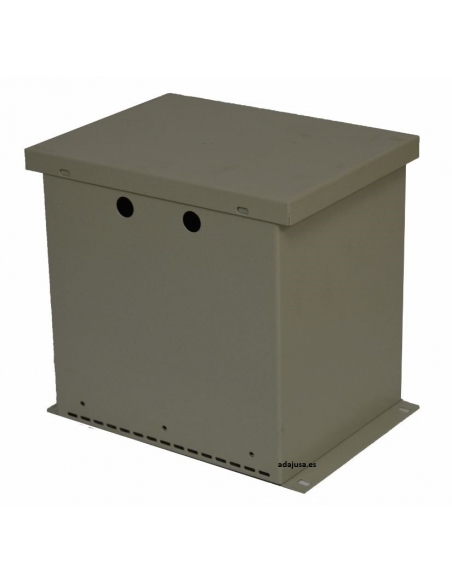

5KVA ultra-insulated single-phase transformer with IP23 box

Single-phase transformer 5000 VA 230/230V ultra insulation box IP23

Special manufacturing material

€460.59 Tax included

€380.65 tax excl.

TRA5000

Ultra-insulated 5kVA (5000VA) single-phase transformer with metal box that allows galvanic isolation, noise filter and neutral generation (two-phase installations). It has an electrostatic safety screen that filters and conducts unwanted signals and disturbances to ground, allowing it to be very effective in isolating machines and installations sensitive to electrical noise.

Reference: TRA5000

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

1 question about the product

Privacy

Shipments

Returns

Single-phase ultra-insulation transformer for galvanic separation of circuits or machinery, dry type, with electrostatic screen between primary and secondary. With a metal layer that offers a degree of protection IP23.

This ultra-isolation transformer provides separation between primary and secondary circuits through a safety electrostatic screen that filters and conducts unwanted signals and disturbances to ground. Referenced to ground it can generate neutral in two-phase installations. The degree of effectiveness of this screen depends directly on the quality of the installation's grounding. For the generation or referencing of the neutral it is necessary to ensure an efficient ground connection.

They are supplied in a metal box that provides an IP-23 insulation degree, connection through terminals. It does not incorporate any overload protection circuit.

Manufactured with low loss magnetic sheet providing high performance.

Technical characteristics:

Reference: TRA5000
Windings: Thermal class N 200ºC.
Primary voltage: 230Vac.
Secondary voltage: 230Vac.
Power: 5KVA.
Frequency: 50/60Hz.
Electrostatic screen between primary and secondary
Test voltage: 3KV between windings and ground
Insulators: Thermal class F 155ºC and H 180ºC.
Protection: IP-23 (Metallic Box )
Ambient temperature: TA=25ºC
Cooling: ANAN (Natural Air)
Certificate: UNE-EN 61558

TRA transformer dimensions

The transformer is supplied without any type of overload protection; its installation is mandatory to avoid overloading the transformer. The power and current indicated are apparent, the active current provided by the transformer will depend on the power factor of the connected load.

Material for professional use, install in compliance with the regulations in force at the installation site.

ES transformers annex

Transformer instructions annex

Download (173.88KB)

PT transformers annex

PT transformer instructions annex

Download (594.49KB)

Annex FR transformers

Annex instructions for FR transformers

Download (598.96KB)

IT transformers annex

IT transformer instructions annex

Download (422.86KB)

Questions

Question

Buenas tardes. Le explicó lo que tengo y lo que necesito a ver si me puede ayudar a saber cuál transformador me funcionaria mejor. En casa tengo línea 230v monofásico. Al testear: Neutro y fase me da 237v. Neutro y tierra 137v Fase y tierra 137v El cargador del coche eléctrico que es donde tengo el problema(Renault zoe) , no me funciona por la falta de neutro. El transformador sería solo para este cargador. Buscando en los foros he encontrado que el ZOE necesita que la instalación eléctrica sea de 230 Voltios entre fase y neutro (se afirma que si los 230 Voltios son entre fase y fase no funciona), que entre el conductor de tierra y el neutro la tensión no supere los 10 Voltios y que la resistencia de tierra no supere los 150 Ohmnios.

Answer

Buenos días.

Si usted tiene una instalación monofásica, cuando realiza las mediciones Neutro y fase 230 Vac, Neutro y Tierra 0 V o muy próximo a él, Fase y tierra 230 Vac.

Entre neutro y tierra no puede medir 137 V. la única posibilidad que se nos ocurre es que usted no tenga una instalación monofásica con neutro y fase, sino una instalación bifásica sin neutro pero con tierra, entocen al medir entre fases tiene 230 Vac, al medir entre Fase y tierra tiene 125 Vac aproximadamente.

Ebn una instalación para saber cuál es el neutro se mide con respecto a tierra, la medición entre neutro y tierra tiene que ser 0 V , como en una instalación tierra está claro cuál es, pues el otro cable será el neutro.

Si tiene dudas, lo mejor sería que contactase con un servicio profesional.

Una vez que tenga claro el tipo de instalación que tiene se puede analizar cuál sería el transformador que necesita.

Saludos

Adajusa

David Castro llaneli on 11/07/2022 15:12:10
