Single-phase motor 0.09Kw 0.12CV 230V 3000 rpm half starting torque, B35 Flange

Name: Single-phase motor 0.09Kw 0.12CV 230V 3000 rpm half starting torque, B35 Flange
Brand: Generico-MOT
SKU: SY5612B35
Price: 75.7823 EUR
Availability: InStock

€75.78 Tax included

€62.63 tax excl.

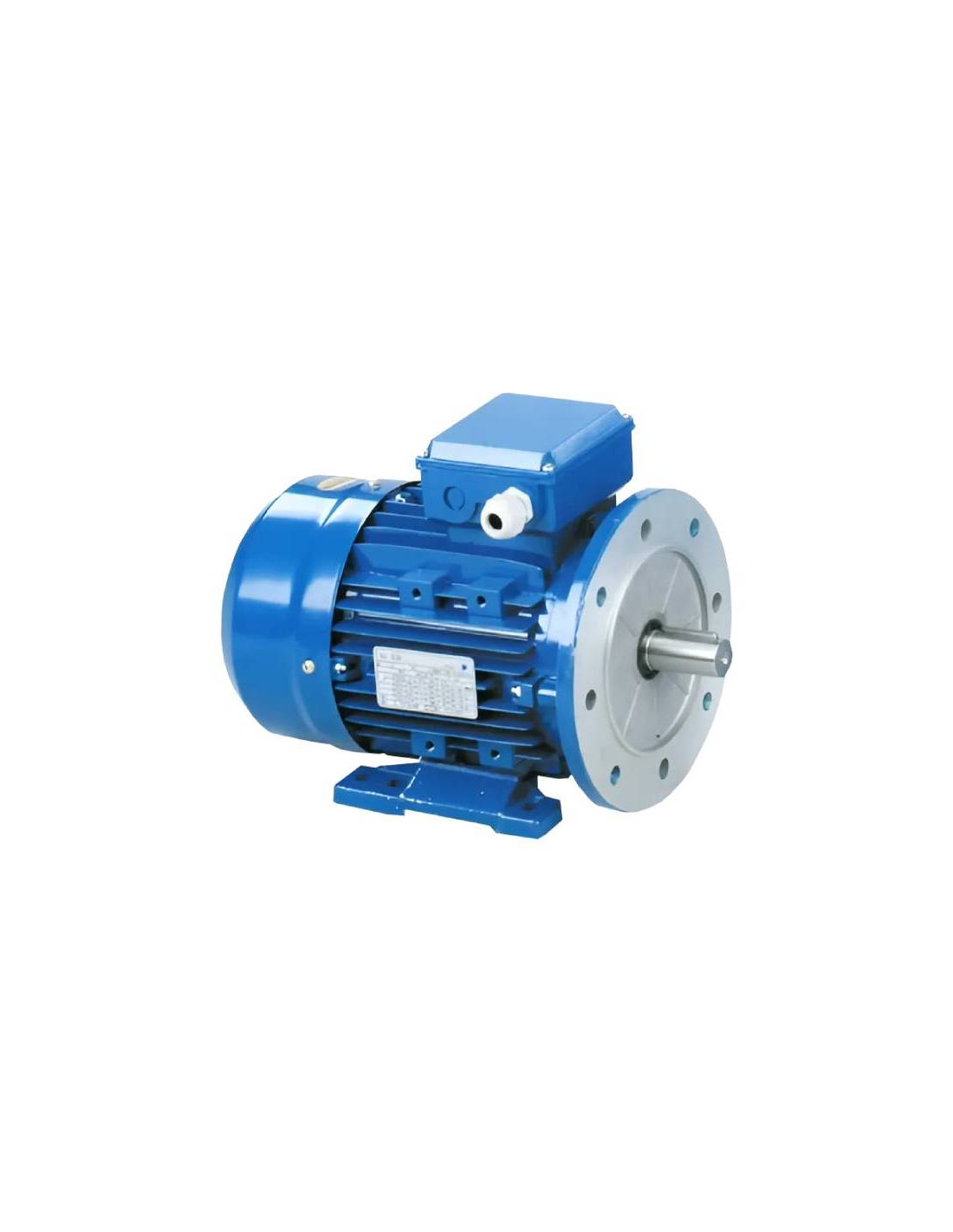

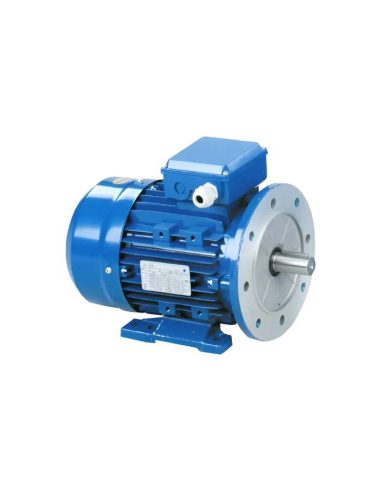

Single-phase electric motor 0,09kW (0,12CV) 230Vac 50Hz. 2 poles (3000 rpm) B35 flange (PAM 120/9), half starting torque, aluminum housing. Manufactured under European IEC standards.

A motor with flange B35 is a motor that has a front flange B5 and feet (B3 flange).

Part number: SY-56M1-2 B35
Voltage: 230Vac 50Hz
Power: 0,09Kw - 0,12cv
Type: Half starting torque
Number of poles: 2
Revolutions: 3000 rpm
Flange: B35
Shaft diameter: 9mm
Diameter of flange: 120mm
Flange PAM: 120/9
Size: 56M1
Energy efficiency: IE1

Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

No queries yet, leave the first!

Privacy

Shipments

Returns

Single-phase electric motor of 0.09kw (0.12CV) 230Vac 50Hz, 2 poles (3000 rpm), flange type B35 and half starting torque.

Standardized single-phase electric motors for general uses, manufactured under European IEC standards in aluminum with removable feet. Winding in enameled copper with class F insulation. The execution of the casing is closed, it has a seal on the output shaft which gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

The motor can be rotated both clockwise and counterclockwise by positioning the connection terminals in the terminal box.

features:

Manufacturer/Importer: Motorseg
Part number: SY-56M1-2 B35
Motor type: squirrel cage asynchronous
Voltage: 230 Vac. 50Hz
Power: 0,09 Kw (0,12CV)
Average starting torque
Number of poles: 2 (3000 rpm)
Rated current (In): 0,8A
Revolutions: 2740 rpm
Efficiency: 54%
Permanent Capacitor: 6uF/450V
Service: Continuous S1
Degree of protection: IP55
Type of fastening: B35 flange
Shaft diameter: Ø9mm
Diameter of flange: 120mm
Flange PAM: 120/9
Case size 56 (56M1)
Color: Blue
Housing materialaluminum
Sound level (dB): 70
Weight: 3,6 Kg
CE Marked

For more information, other powers or executions consult.
As in all asynchronous electric motors, it is mandatory to install a motor guard to prevent damage due to overload

dimensiones-trifásicos-B3

dimensiones-trifásicos-B5

For further information you can download the technical data sheet by clicking on the "Attachments" tab. Material for professional use, install in compliance with current regulations at the place of installation.

monophase_motor_circuit_breaker

How to install a circuit breaker (motor circuit-breaker) with motor single-phase

Download (59.36KB)

Connection of single-phase motor

Electrical connection of single-phase motors

Download (487.97KB)

Technical information motors

Technical information on electric motors, dimensions and three-phase and three-phase connections single-phase

Download (1.21MB)

Installation of electric motors

Annex to the technical instructions motors

Download (48.86KB)

ES-Engine Annex

Download (253.95KB)

Annex engines-FR

Download (262.97KB)

EN-Engine Annex

Download (631.69KB)

Annex motors-PT

Download (249.5KB)

IT-motor annex

Download (628.21KB)

Annex motors-DE

Download (638.45KB)
