Single-phase motor 0.25Kw 0.33CV 230V 3000 rpm...
Single-phase motor 0.25Kw 0.33CV 230V 3000 rpm...
Single-phase motor 0.25Kw 0.33CV 230V 3000 rpm...
Single-phase motor 0.25Kw 0.33CV 230V 3000 rpm half starting torque, B34 Flange
Single-phase motor 0.25Kw 0.33CV 230V 3000 rpm half starting torque, B34 Flange
Single-phase motor 0.25Kw 0.33CV 230V 3000 rpm half starting torque, B34 Flange

Single-phase motor 0.25Kw 0.33CV 230V 3000 rpm half starting torque, B34 Flange

€89.72 Tax included

€74.15 tax excl.

Single-phase electric motor 0.25kW (0.33CV) 230Vac 50Hz 2 poles (3000 rpm) B34 flange (PAM 90/11), half starting torque, aluminum housing. Manufactured under European IEC standards.

A motor with flange B34 is a motor that has a front flange B4 and feet (B3 flange).

  • Part number: SY-63M2-2 B34
  • Voltage: 230Vac 50Hz
  • Power: 0,25Kw - 0,33CV
  • Type: Half starting torque
  • Number of poles: 2
  • Revolutions: 3000 rpm
  • Flange: B34
  • Shaft diameter: 11mm
  • Diameter of flange: 90mm
  • Flange PAM: 90/11
  • Size: 63M2
  • Energy efficiency: IE1

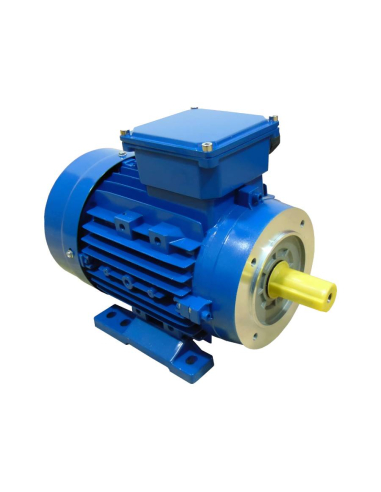

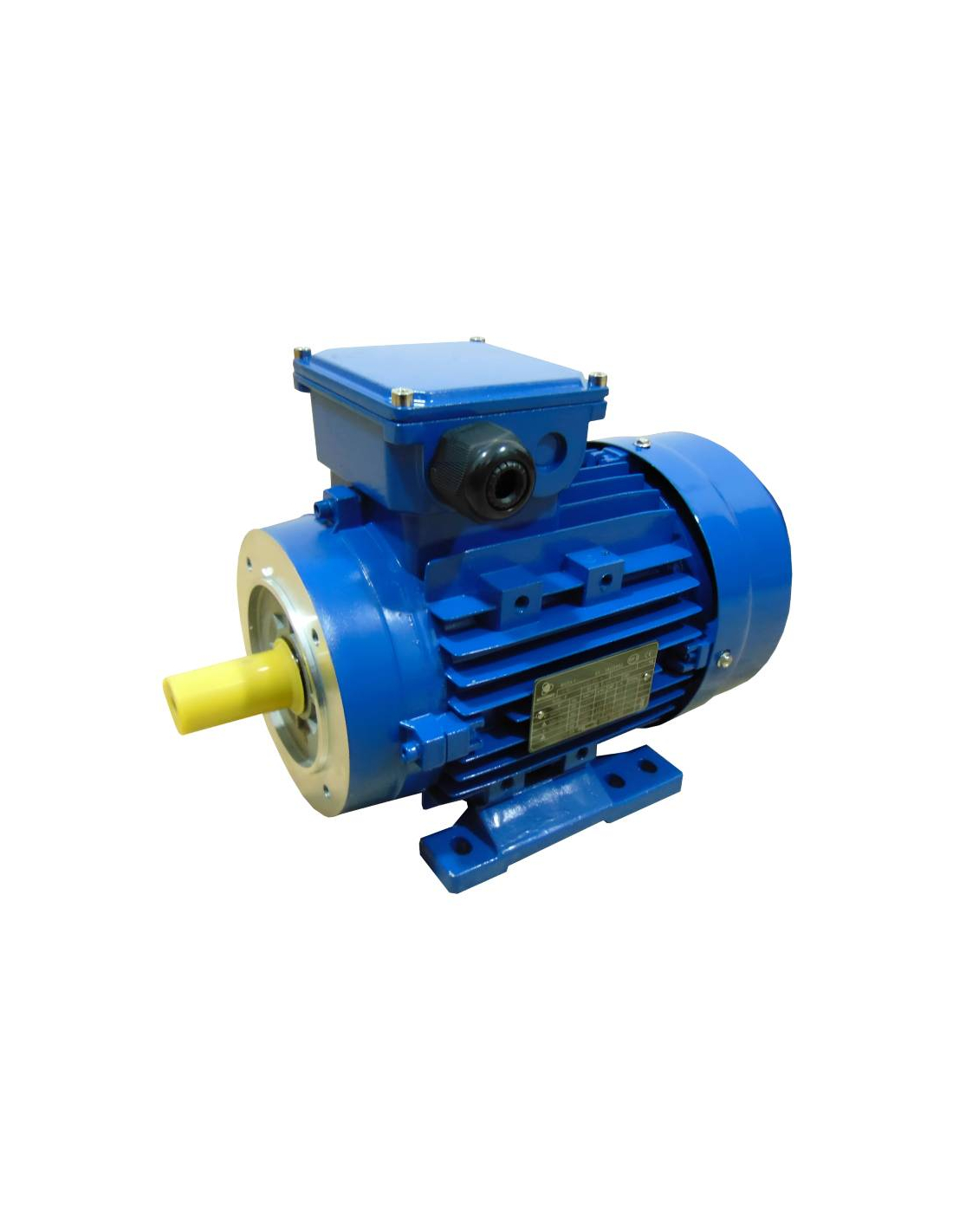

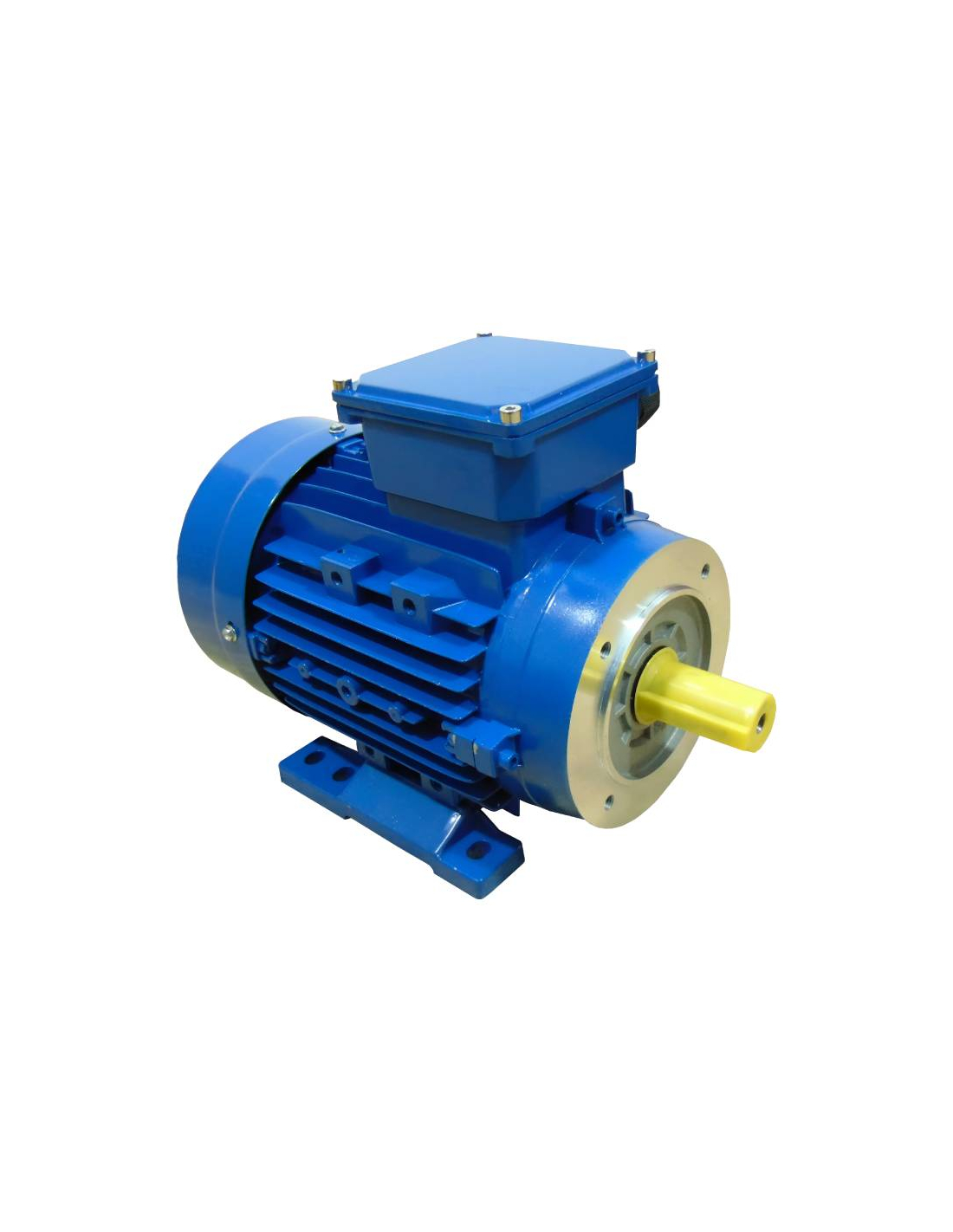

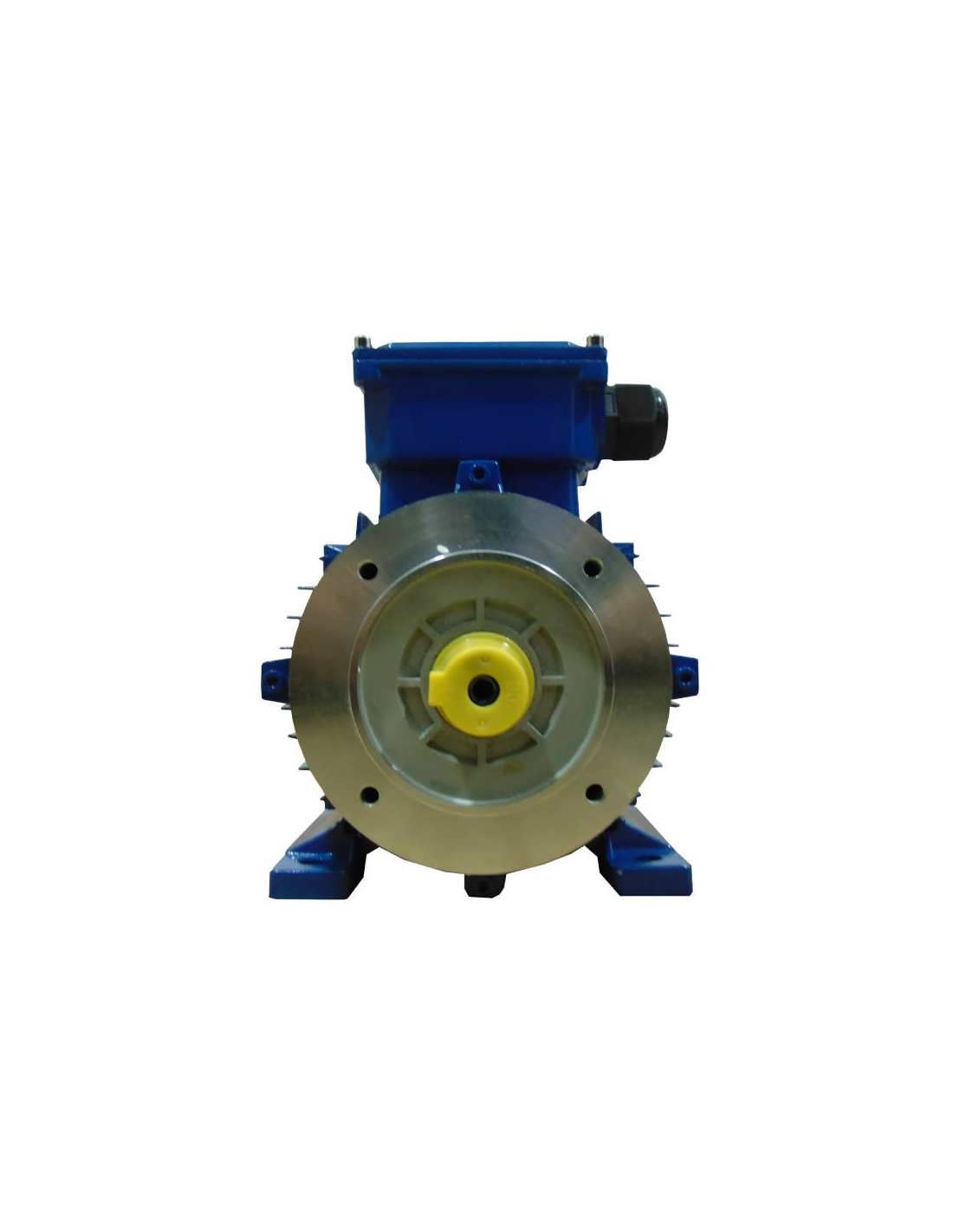

Representative image for illustrative purposes, the item supplied will correspond to the specifications shown.

No queries yet, leave the first!
Privacy
Shipments
Returns


Single-phase electric motor of 0.25kw (0.33CV) 230Vac 50Hz, 2 poles (3000 rpm), flange type B34 and half starting torque.

Standardized single-phase electric motors for general uses, manufactured under European IEC standards in aluminum with removable feet. Winding in enameled copper with class F insulation. The execution of the casing is closed, it has a seal on the output shaft which gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

The motor can be rotated both clockwise and counterclockwise by positioning the connection terminals in the terminal box.

Features:

  • Manufacturer/Importer: Motorseg
  • Part number: SY-63M2-2 B34
  • Type of motor: squirrel cage asynchronous
  • Voltage: 230 Vac. 50Hz
  • Power: 0,25 Kw (0,33CV)
  • Average starting torque
  • Number of poles: 2 (3000 rpm)
  • Rated current (In): 1,76A
  • Starting current (Ia): 7
  • Revolutions: 2780 rpm
  • Efficiency: 65% Efficiency: 65% Power factor (Cos): 0
  • Power factor (Cos): 0,95
  • Maximum torque / Nominal torque (Tmax/Tn): 1.8
  • Starting torque / Nominal torque (Ts/Tn): 0.5
  • Permanent capacitor: 12uF/450V
  • Service: continuous S1
  • Degree of protection: IP55
  • Type of fastening: B34 flange
  • Shaft diameter: Ø11mm
  • Diameter of flange: 90
  • Flange PAM: 90/11
  • Case size: 63 (63M2)
  • Color: Blue
  • Housing materialaluminum
  • Sound level (dB): 70
  • Weight: 4,5 Kg
  • CE Marked
For more information, other powers or executions consult.
As in all asynchronous electric motors, the installation of a motor guard is mandatory to prevent damage due to overload

dimensiones motores monofasicos B14

For further information you can download the technical data sheet by clicking on the "Attachments" tab. Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
