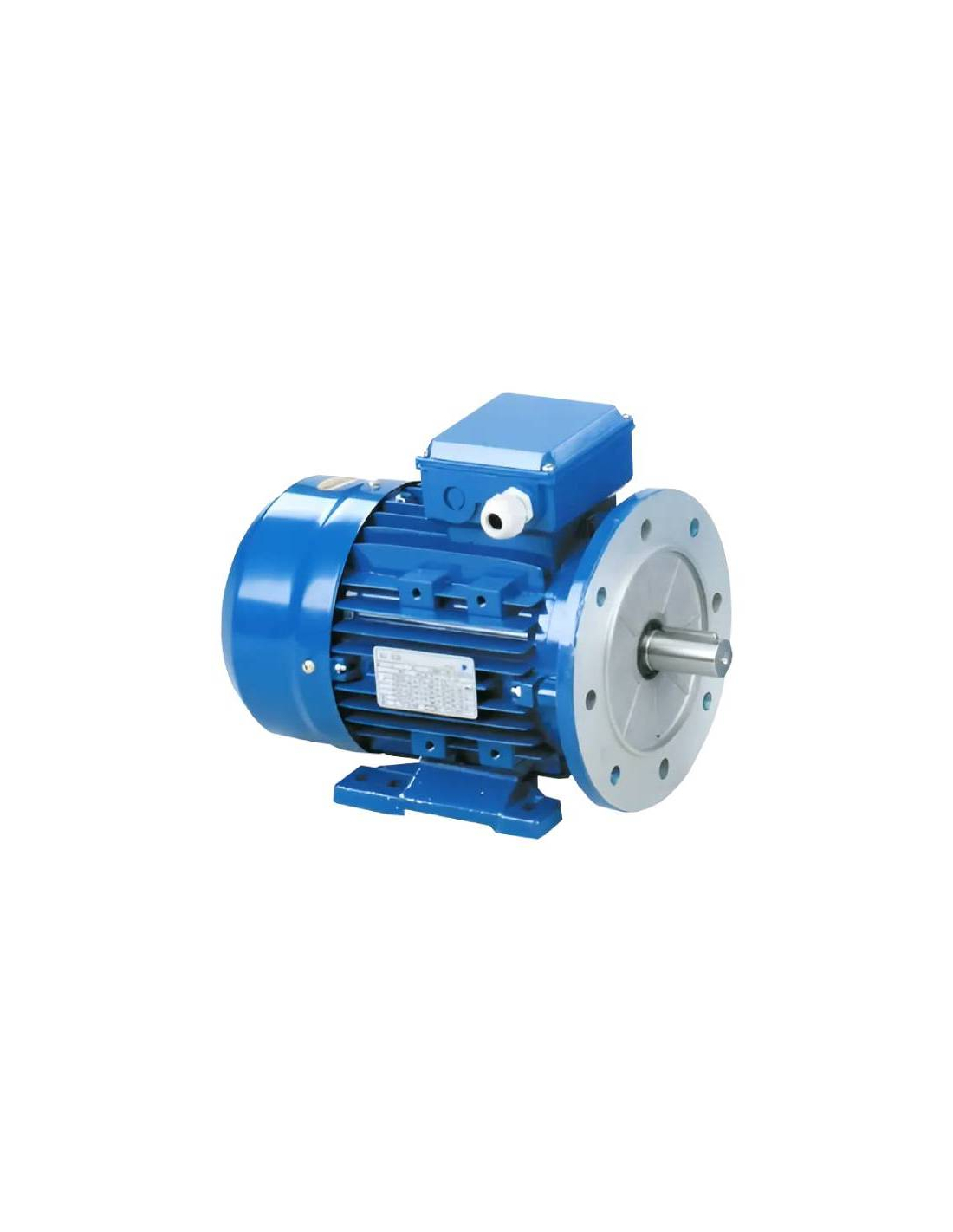

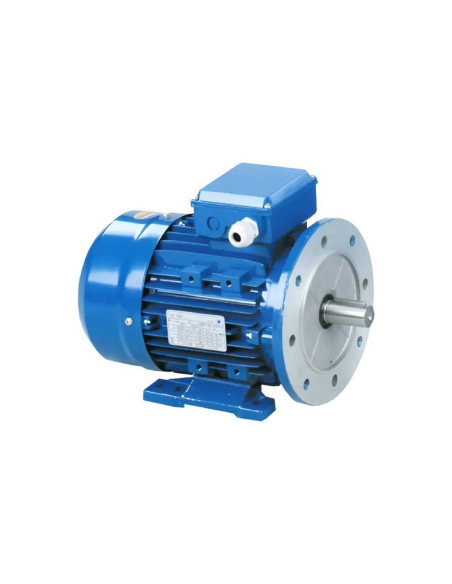

Single-phase electric motor of 0,12kw (0,16CV) 230Vac 50Hz, 4 poles (1500 rpm), flange type B35 and half starting torque.
Standardized single-phase electric motors for general uses, manufactured under European IEC standards in aluminum with removable feet. Winding in enameled copper with class F insulation. The execution of the casing is closed, it has a seal on the output shaft which gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.
By properly positioning the connection plates, in the terminal box, the motor can rotate both clockwise and counterclockwise.
Characteristics:
- Manufacturer/Importer: Motorseg
- Part number: SY-63M1-4 B35
- Type of motor: squirrel cage asynchronous
- Voltage: 230 Vac. 50Hz
- Power: 0,12Kw (0,16CV)
- Average starting torque
- Number of poles: 4 (1500 rpm)
- Rated current (In):1,03A
- Starting current (Ia): 3,5
- Revolutions: 1380 rpm
- Efficiency: 55% Efficiency: 55% Efficiency: 55% Efficiency: 55% Efficiency: 55
- Power factor (Cos): 0,92
- Maximum torque / Nominal torque (Tmax/Tn): 1.75
- Starting torque / Nominal torque (Ts/Tn): 0.45
- Permanent capacitor: 10uF/450V
- Service: continuous S1
- Degree of protection: IP55
- Type of fastening: B35 flange
- Shaft diameter: Ø11mm
- Diameter of the flange: Ø140mm
- Flange PAM: 140/11
- Case size: 63 (63M1)
- Color: Blue
- Housing material: Aluminium
- Sound level (dB): 65
- Weight: 4 Kg
- CE Marked
For more information, other powers or executions consult.
As in all asynchronous electric motors, it is mandatory to install a motor guard to prevent damage due to overload.
For further information you can download the technical data sheet by clicking on the "Attachments" tab. Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
