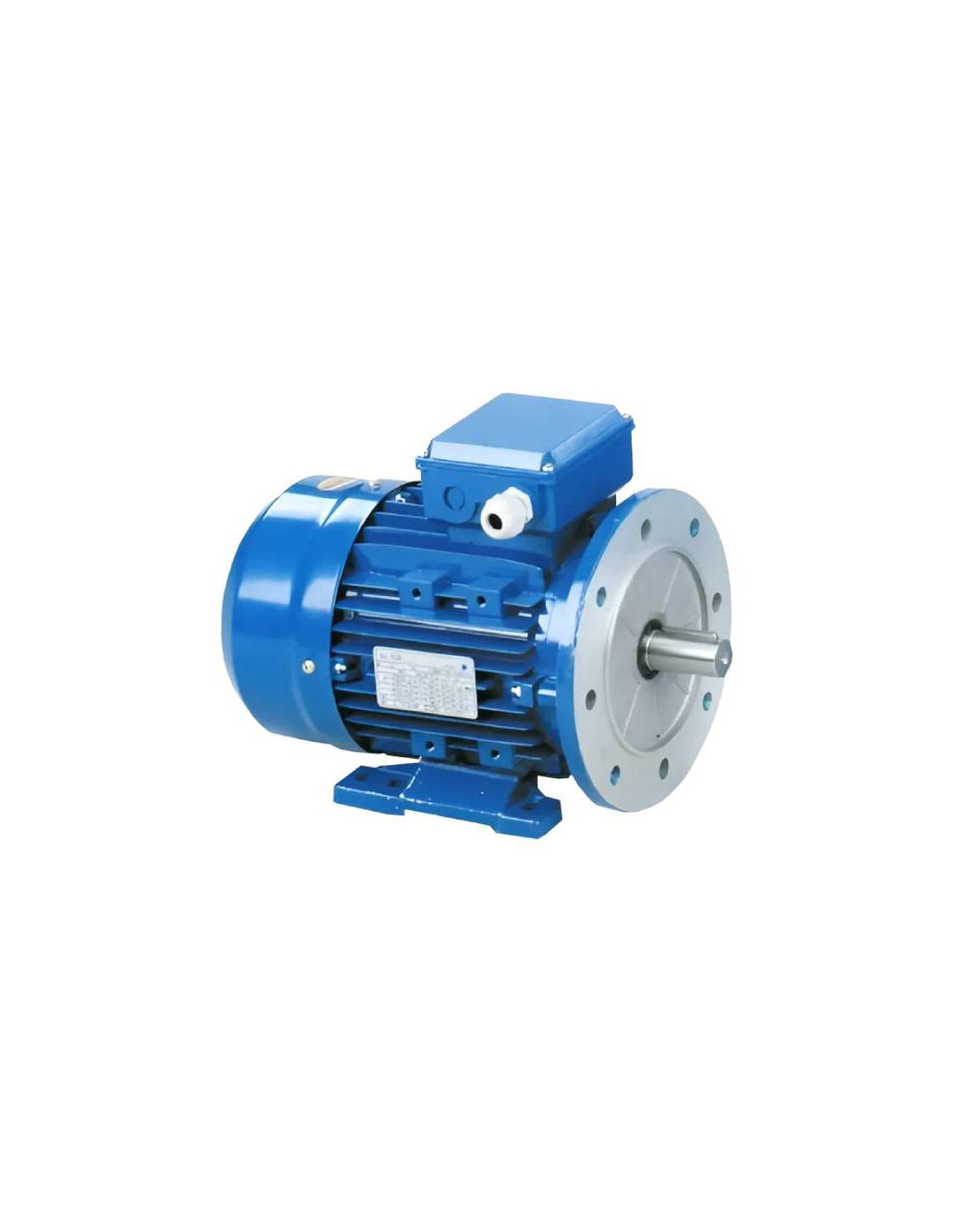

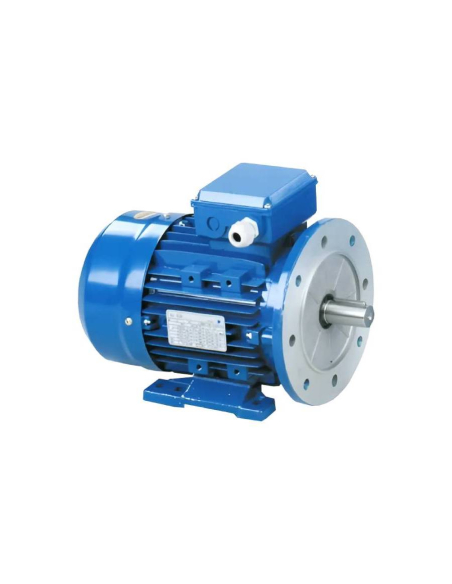

Single phase motor 3Kw 4CV 230V 1500 rpm high starting torque, Flange B35

Single-phase electric motor 3kw (4CV) 230Vac 50Hz, 4 poles (1500 rpm), flange type B35 Ø250mm (PAM 250/28), high starting torque with centrifugal circuit breaker.

Standardized single-phase electric motors for general purposes, manufactured under European IEC standards in aluminum with removable feet. Winding in enameled copper with class F insulation. The execution of the casing is closed, it has a seal on the output shaft which gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

The motor can be rotated both clockwise and counterclockwise by positioning the connection terminals in the terminal box.

The starting system by means of centrifugal circuit breaker and auxiliary starting capacitor provides a reinforced starting torque; the system is fully automatic.

Features:

• Manufacturer/Importer: Motorseg
• Part number: SL-100L1-4 B35
• Motor type: squirrel cage asynchronous
• Voltage: 230 Vac. 50Hz
• Power: 3Kw (4CV)
• High starting torque
• Number of poles: 4 (1500 rpm)
• Rated current (In): 17A
• Starting current (Ia): 95
• Revolutions: 1430 rpm
• Efficiency: 79% Efficiency: 79% Efficiency: 79% Efficiency: 79% Efficiency: 79
• Power factor (Cos): 0,97
• Maximum torque / Nominal torque (Tmax/Tn): 1.8
• Starting torque / Nominal torque (Ts/Tn): 2.3
• Permanent capacitor: 60uF/450V
• Ctarter capacitor400uF/300V
• Service: permanent S1
• Degree of protection: IP55
• Type of fastening: B35 flange
• Shaft diameter: Ø28mm
• Diameter of the flange: 250mm
• PAM: 250/28
• Case size: 100 (100L1)
• Color: Blue
• Housing materialaluminum
• Sound level (dB): 83
• Weight: 30 Kg
• CE Marked

For more information you can download the technical data sheet by clicking on the "Attachments" tab. Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
