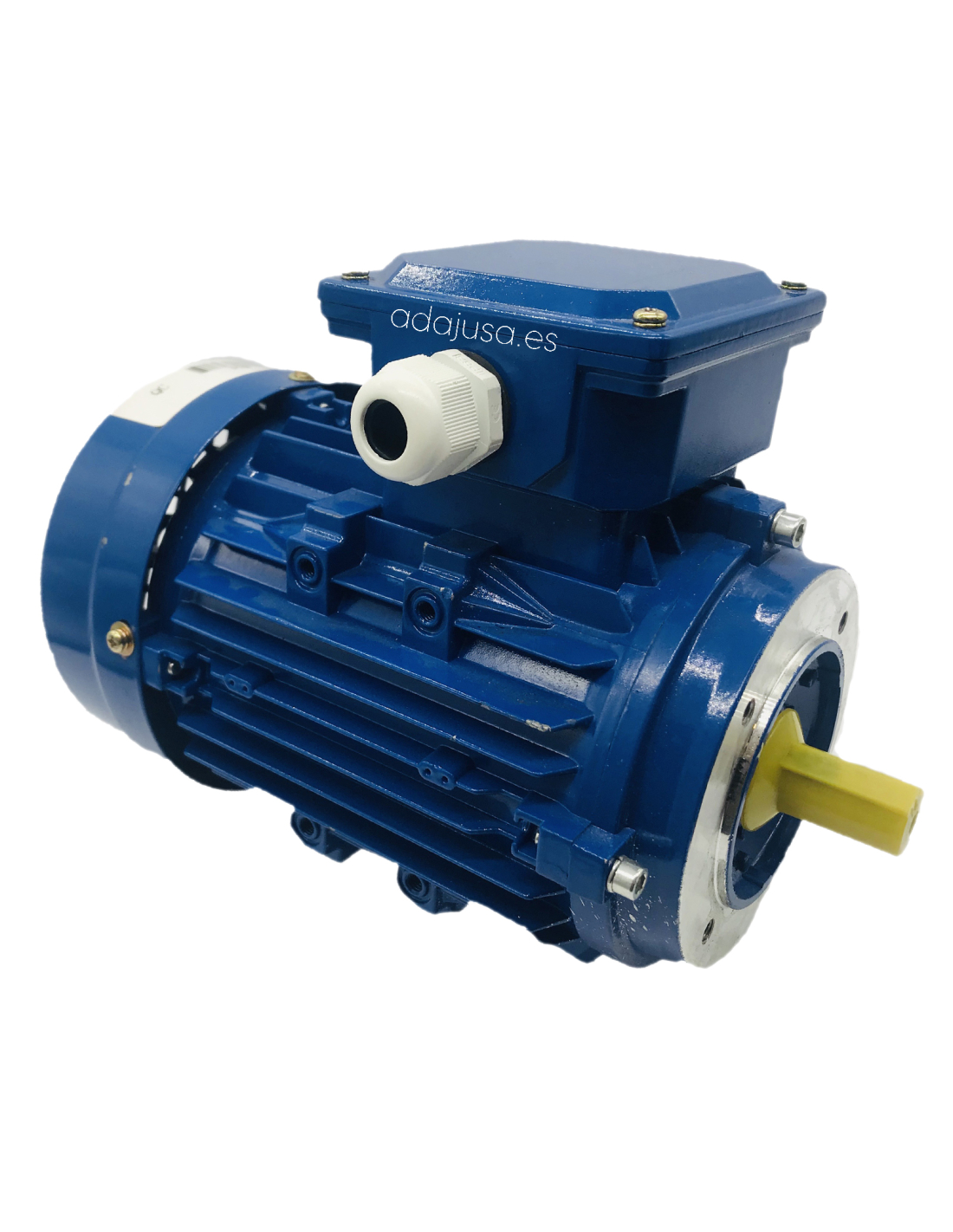

Single-phase motor 1.5Kw 2CV 230V 3000 rpm high starting torque, B14 Flange

Single phase electric motor 1,5kw (2CV) 230Vac 50Hz, 2 poles (3000 rpm), flange type B14 Ø140mm (PAM 140/24), high starting torque with centrifugal circuit breaker.

Standardized single-phase electric motors for general purposes, manufactured under European IEC standards in aluminum with removable feet. Winding in enameled copper with class F insulation. The execution of the casing is closed, it has a seal on the output shaft which gives it a degree of protection IP55. The capacitor is completely housed in the motor terminal box.

The motor can be rotated both clockwise and counterclockwise by positioning the connection terminals in the terminal box.

The starting system by means of centrifugal circuit breaker and auxiliary starting capacitor provides a reinforced starting torque; the system is fully automatic.

Features:

• Manufacturer/Importer: Motorseg
• Part number: SL-90S-2 B14
• Motor type: squirrel cage asynchronous
• Voltage: 230 Vac. 50Hz
• Power: 1,5Kw (2CV)
• High starting torque
• Number of poles: 2 (3000 rpm)
• Rated current (In): 8,62A
• Starting current (Ia): 55
• Revolutions: 2810 rpm
• Efficiency: 78% Efficiency: 78% Power factor (Cos): 0
• Power factor (Cos): 0,97
• Maximum torque / Nominal torque (Tmax/Tn): 1.8
• Starting torque / Nominal torque (Ts/Tn): 2.3
• Permanent capacitor: 40uF/450V
• Ctarter capacitor150uF/250V
• Service: permanent S1
• Degree of protection: IP55
• Type of mounting: B14 flange
• Shaft diameter: Ø24mm
• Diameter of the flange: 140mm
• PAM: 140/24
• Case size: 90 (90S)
• Color: Blue
• Housing materialaluminum
• Sound level (dB): 84
• Weight: 14 Kg
• CE Marked

For more information you can download the technical data sheet by clicking on the "Attachments" tab. Material for professional use, to be installed in compliance with the regulations in force at the place of installation.
