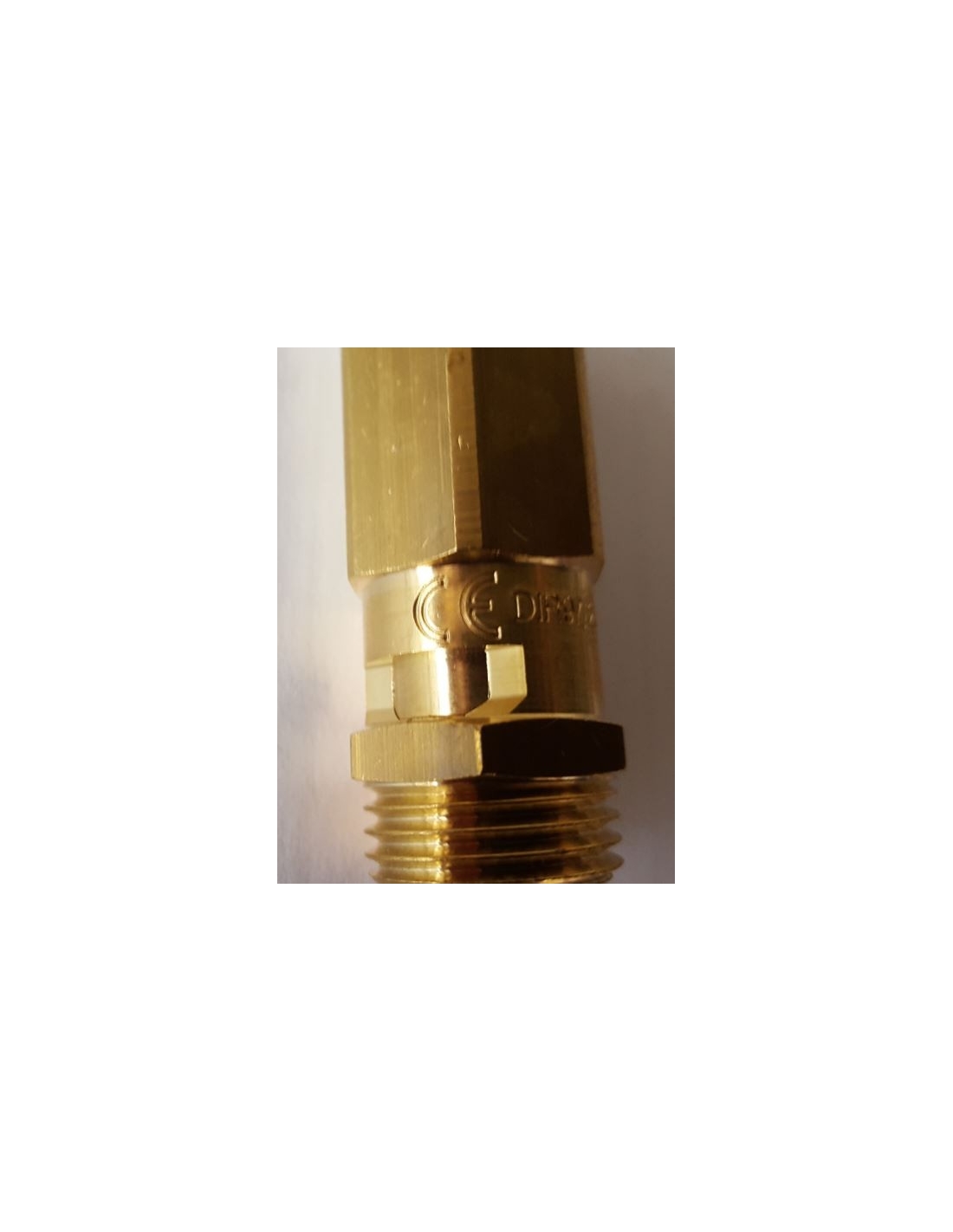

Safety valve overpressure 3/8 12 Bar - Metal Work

€6.70 Tax included

€5.54 tax excl.

Overpressure safety valve for the relief of pneumatic circuits and compressors. The valve is supplied sealed with its corresponding certificate.

Manufactured according to the MIE-AP17 regulation of the precision devices regulation, being built by spring and total lift seat.

Reference: VS3812PED4


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Overpressure valve with 3/8" thread and adjusted to 12 bars. To avoid overpressure in the circuits in which it is installed or on compressors.

The valve is manufactured according to the MIE-AP17 regulation of the precision devices regulation, being built by spring, total lift seat and sealed at the indicated working pressure.

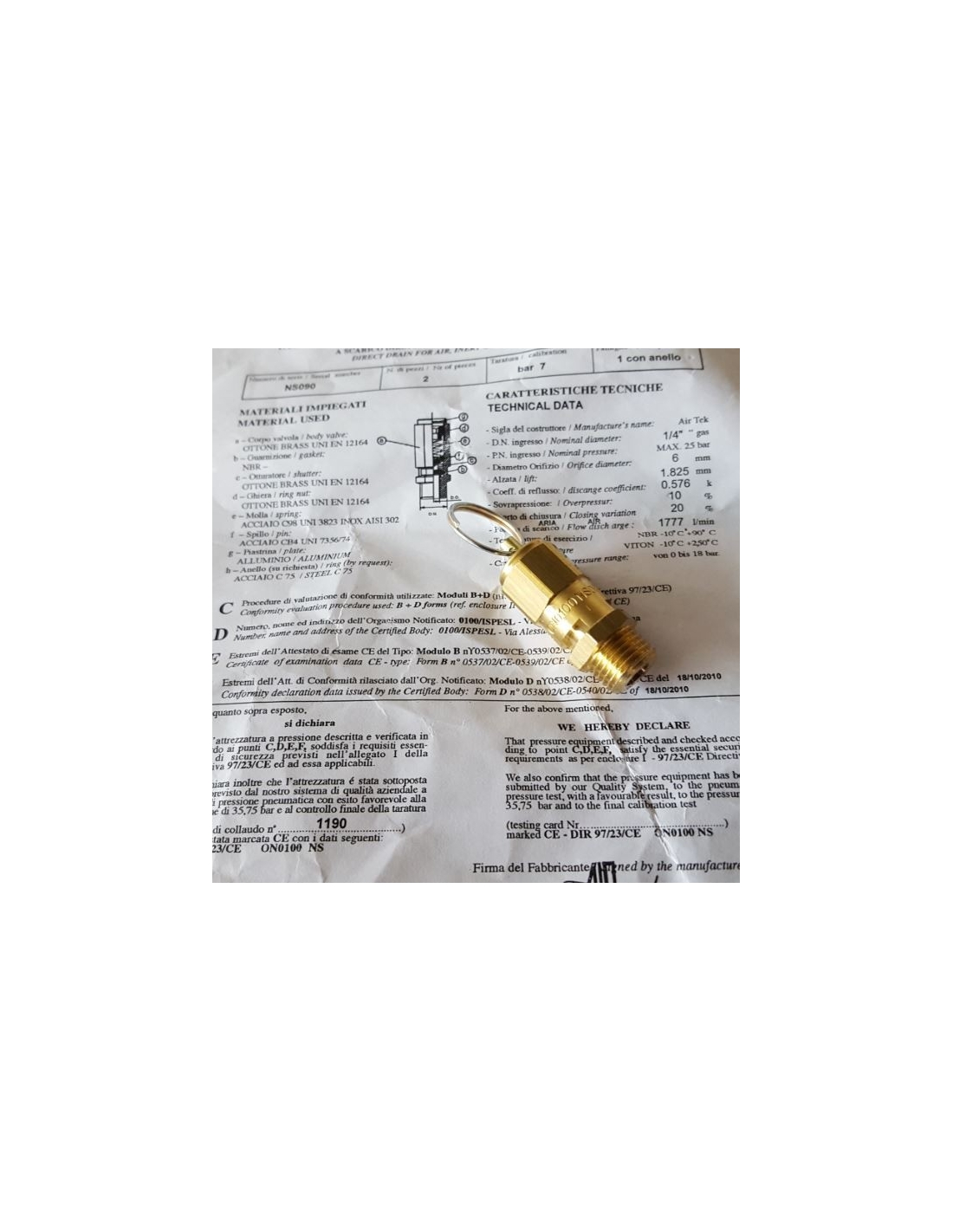

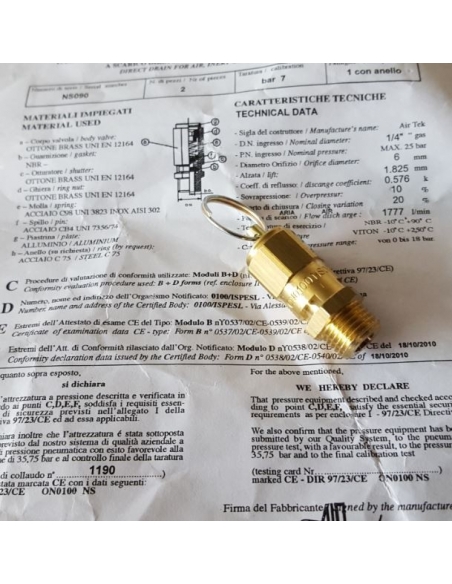

The valve is supplied with its corresponding certificate.

Specifications:

  • Provider: Metal Work
  • Reference: VS3812PED4
  • Connection thread: G 3/8".
  • Adjustment pressure: 12 Bars.
  • Overpressure: +10% adjustment pressure.
  • Maximum pressure: 40 Bars.
  • Nominal diameter: 9mm.
  • Flow: 4080 l/min.

Dimensiones válvulas seguridad sobrepresión

  • Height "A": 17mm.
  • Height "B": 50mm.
  • Height "C": 10mm.

For other sizes or adjustment pressures consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
