Roller chain pinions 3/4 x 7/16 12B-1 Z33 DIN8187 - ISO R606

€44.52 Tax included

36.79 tax excl.

P3471612B1Z33

Single pinion for single roller chain model 12B-1 according to European standard DIN8187 - ISO/R606

Reference: PINHON Z33 3/4

Teeth: 33

ISO: 12B-1

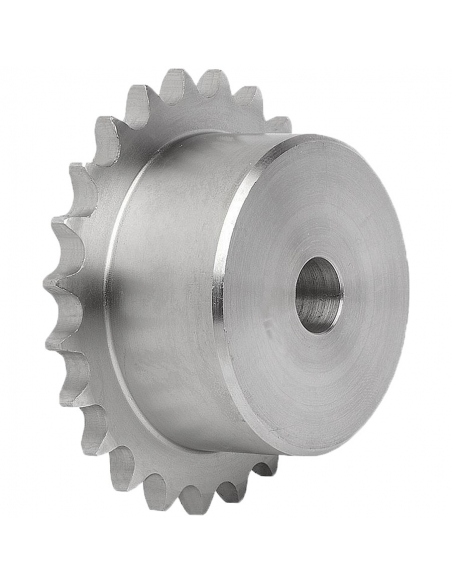

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Simple sprockets for single roller chains 12B-1 according to European standard DIN ISO 606

Manufacturer: Technox

Reference: PINHON Z33 3/48


Characteristics:

  • 3/4" x 7/16" mm ISO 12B-1
  • 19.05 x 11.68 mm
  • Teeth: 33
  • Roller diameter: 12.07 mm
  • Tooth radius (r): 19 mm
  • Curved area width (C): 2 mm
  • Tooth width (h1): 11.1 mm
  • Outer Diameter (S): 209.3
  • Primitive diameter (Dp): 200.4
  • Center diameter (d): 100
  • Hub diameter (D): 20 (Non-mechanical shaft diameter)
  • Width (H): 40


Material for professional use, install in compliance with the regulations in force at the place of installation.
