Pneumatic pedal 3/2 diameter M5 bistable with protection - Metal Work

€59.56 Tax included

€49.22 tax excl.

W3120000331

Pneumatic pedal with 3-way M5 diameter thread with protective cover in high-strength plastic material, bistable operation, the pneumatic valve is operated while the pedal remains pressed returning to the resting position when it stops operating.

Reference: W3120000331

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

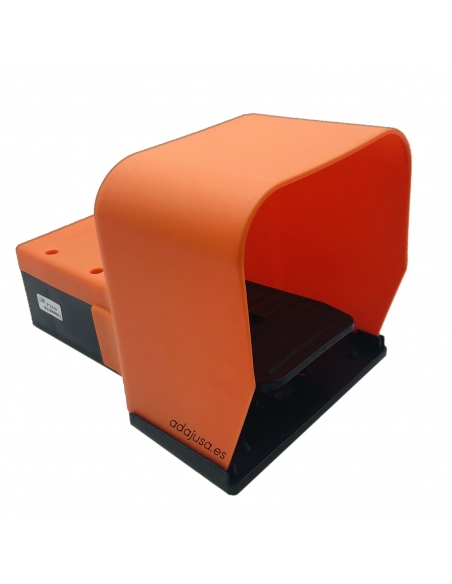

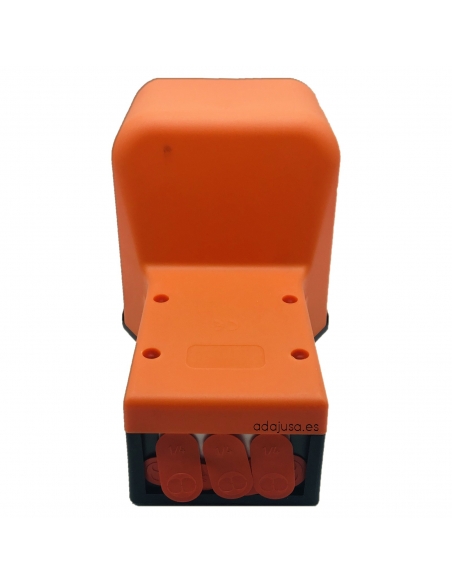

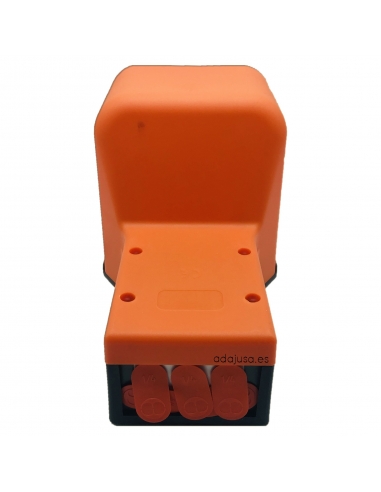

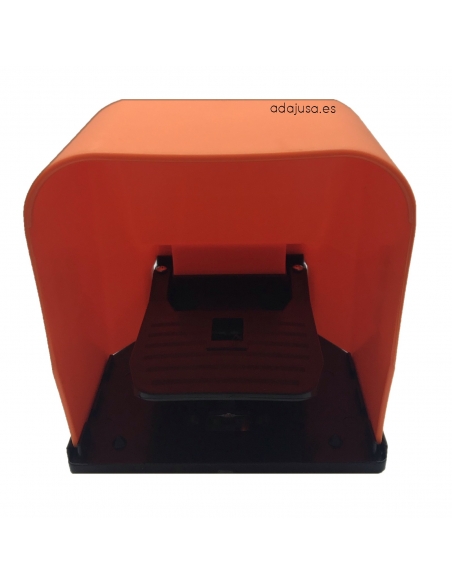

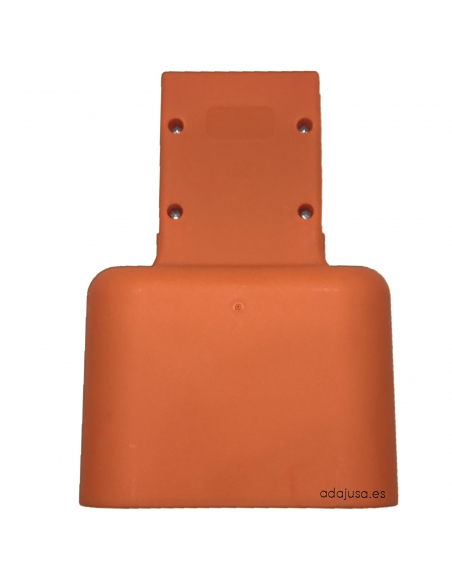

3/2 M5 bistable pneumatic pedal. The pedal is equipped with a protective cover to avoid accidental actuation, the pedal body is made of high-strength plastic material, in orange and the pneumatic valve in aluminum, of monostable operation, the pneumatic valve is activated while the pedal remains pressed returning to the resting position when it stops operating.

Specifications:

Manufacturer: Metal Work.
Reference: W3120000331 (PEV 03 PEB P)
Valve thread: M5.
Fluid: With or without lubrication, if there is lubrication it must be continuous.
Typology: 3 ways, 2 bistable positions with protection.
Working pressure: 2,5..10 bar. 0,25..1 MPa. 36..145 psi.
Nominal diameter: 2.5 mm.
Conductance C: 16.5 Nl/min-bar.
Critical ratio: 0.03 bar/bar.
Flow rate at 6.3 bar ΔP 0.5bar: 60 Nl/min.
Flow rate at 6.3 bar ΔP 1 bar: 95 Nl/min.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Download (128.23KB)
