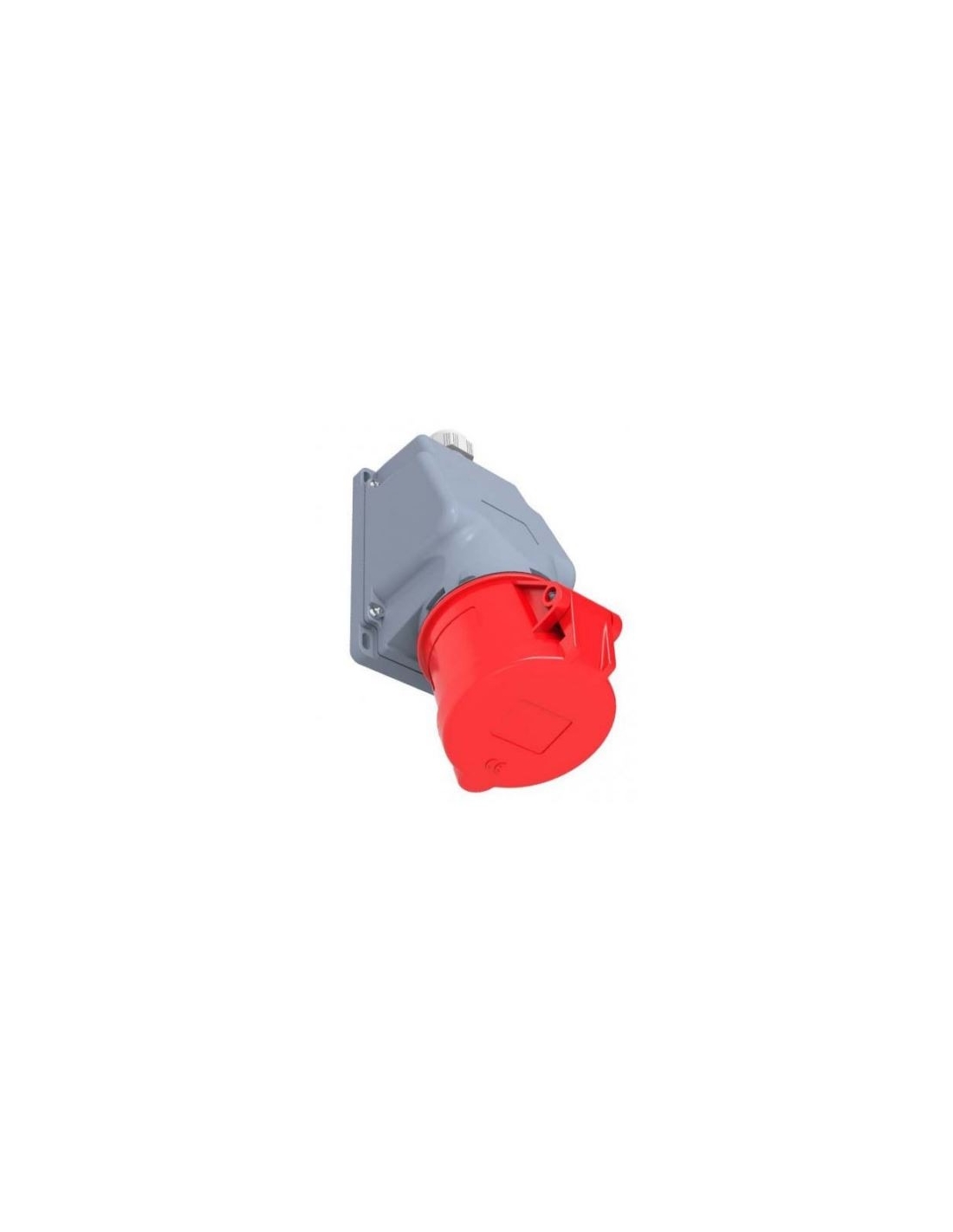

CEE-CETAC 32A 3P-T plug socket with 90o IP-44 surface box

Surface box CEE-CETAC 32A 3P-T plug socket with 90o IP-44

Name: Surface box CEE-CETAC 32A 3P-T plug socket with 90o IP-44
Brand: Generico-BE
SKU: BC1-3504-2535
Price: 12.1 EUR
Availability: InStock

€12.10 Tax included

€10.00 tax excl.

Power outlet with box at 90o, 32 A, 3 pole and grounding, type CEE-CETAC with lid. Degree of protection IP-44.

Ref: BC1-3504-2535

No queries yet, leave the first!

Privacy

Shipments

Returns

Power outlet base with box at 90o, surface mount of 32A. 450Vac, 3 Poles and grounding (3P+T), type CEE CETAC with protection cover in red. CE marking. Degree of protection IP44.

Connection terminals with cable screws 1.5 - 4 mm.

Technical details:

Manufacturer/Supplier: Bemis
Ref: BC1-3504-2535
Product: plug base
Type: three-phase EEC type (CETAC)
Rated voltage: 380-450Vac
Nominal current: 32A
Connection: 3 poles and ground (3P+T)
Mounting: surface 90o.
Degree of protection: IP-44
Body material: polyamide 6
Cover: red top

Dimensions:

Dimensiones toma de corriente CETAC 32A 3P-T BC1-3504-2535 IP44
