Double pneumatic valve 1/8 3 way monostable NC-NO - Metal Work

€61.84 Tax included

€51.11 tax excl.

Double pneumatic valve 1/8 3 ways monostable normally closed (NC) and standardally open (NO).

Reference: 7010013300

Logotipo Metal Work

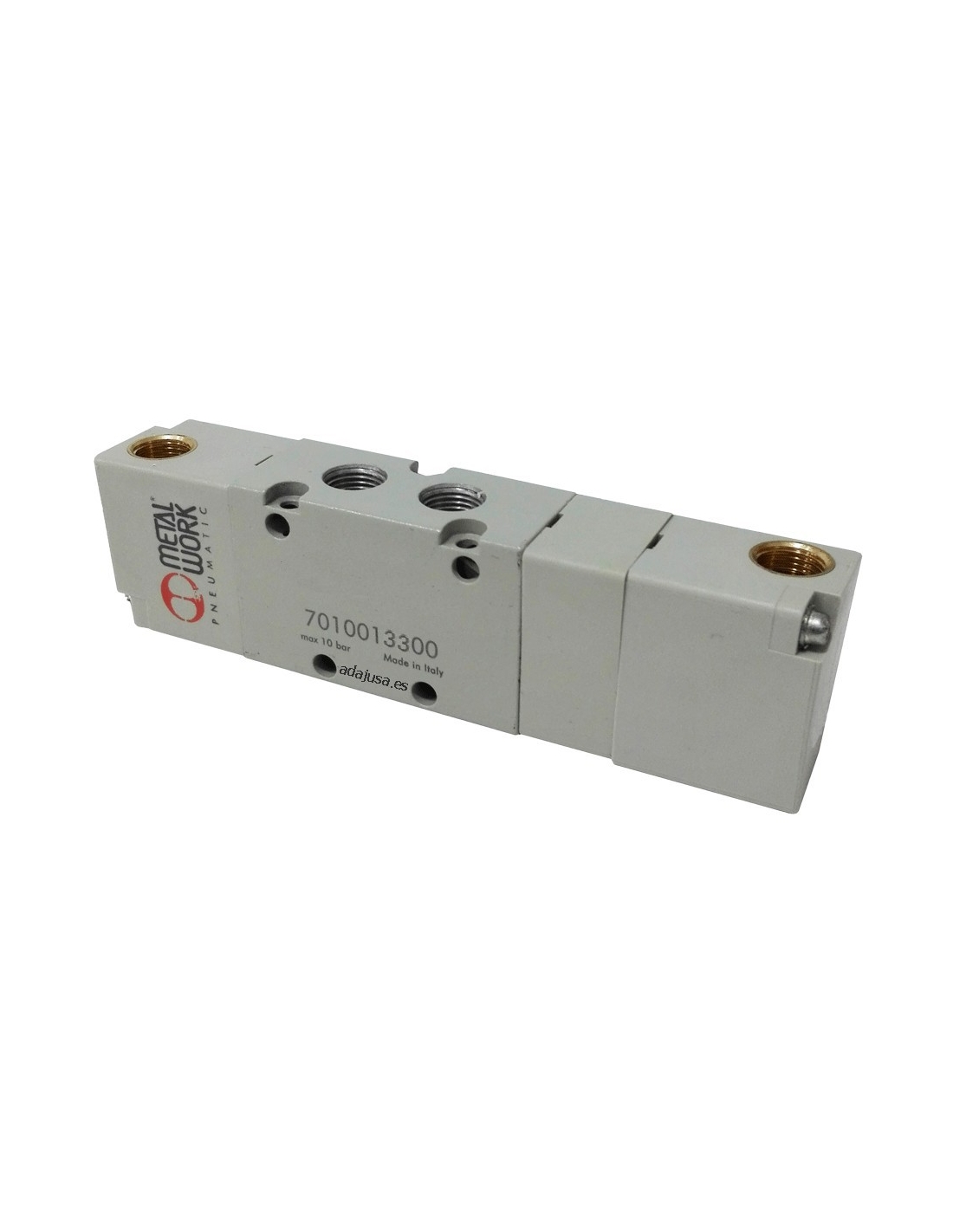

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Double pneumatic valve 1/8 3 ways monostable, for general and industrial applications. On the one hand the valve is normally closed (NC), and on the other end it is normally open (NO)

  • Double pneumatic valve 1/8 3 ways monostable normally closed (NC) and standardally open (NO).
  • Manufacturer: Metal Work.
  • Reference: PNV 28 PNS NC-NO Code: 7010013300
  • Operating pressure bar: Empty ÷ 10
  • Minimum monostable drive pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 6/15
  • Bistable TRA/TRR at 6 bar ms: 7/7



Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
