Reduction of diameters 8mm to 4mm Series 55000 - Aignep

Name: Reduction of diameters 8mm to 4mm Series 55000 - Aignep
Brand: Aignep
SKU: 50700N84
Price: 1.2705 EUR
Availability: InStock

€1.27 Tax included

€1.05 tax excl.

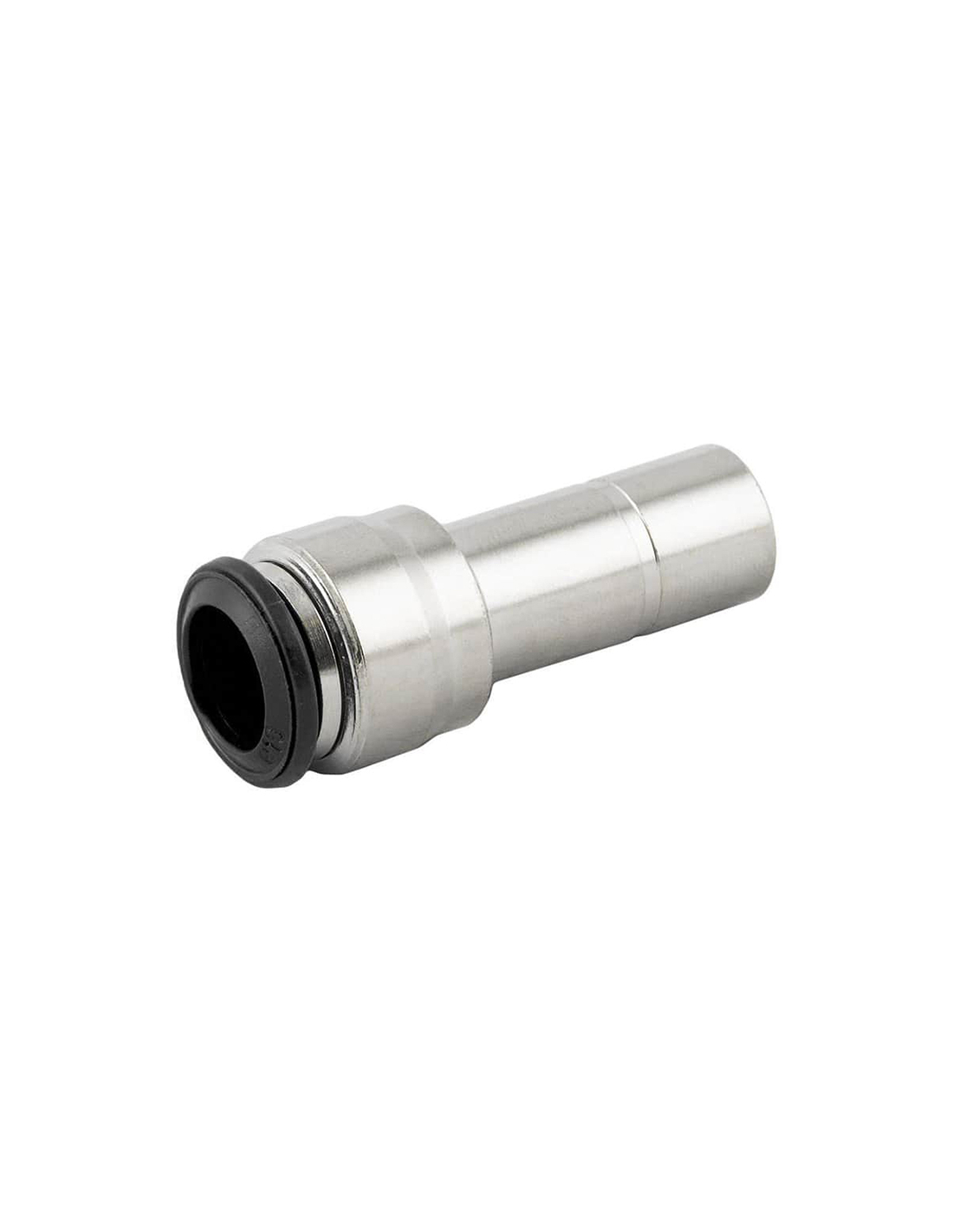

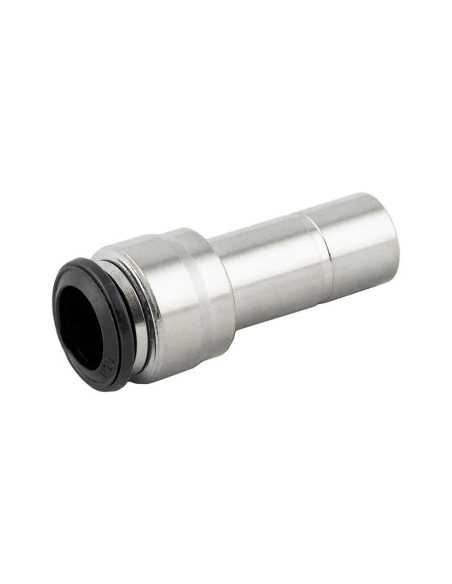

Pneumatic reducing fitting from 8mm to 4mm diameter, nickel-plated brass body. With avery efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention.

Series: 55000
Part number: 50700N 8 4

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic reduction fitting from 8mm to 4mm diameter, made of nickel-plated brass. Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring clamps the tube without deforming it, thus allowing a greater simplicity in the operation of connecting or disconnecting the fitting from the tube.

This fitting is suitable for robotics, automotive, textile industry, packaging, handling, compressed air circuits, industrial water and vacuum

Technical specifications:

Manufacturer: Aignep.
Part number: 50700N 8 4
Larger tube diameter: 8mm.
Smallest tube diameter: 4mm.
Fluid: vacuum, compressed air and water
Material: Nickel-plated brass
Tube puller ring: acetal resin
Seal of retention: NBR
Clamping spring: stainless steel
Pressure: -0,99 bar to 20 bar
Working temperature: -20ºC to +80ºC
Thread standard
- Gas conical according to ISO 7.1, BS 21,DIN 2999
- Gas cylindrical according to ISO 228 Class A
- Metric according to ISO R/262

50700NEsq
50700NTab

Material for professional use, install in compliance with the regulations in force at the place of installation.
