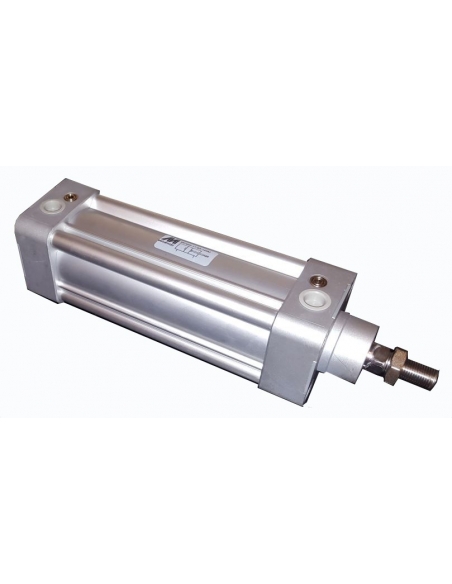

Cylinder 50x300 double effect - Mindman

€96.10 Tax included

79.42 tax excl.

MCQI211050300
Pneumatic cylinder diameter 50x300 double magnetic effect. With pneumatic cushioning, aluminum jacket and chromed steel vastago.
Reference: 281MCQI2110500300M
https://rodavigo.net/datos/logos-marcas-png/th_mindman.png
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1 question about the product
Privacy
Shipments
Returns


Pneumatic cylinder diameter 50 mm stroke 300mm, double effect with pneumatic damping and prepared for magnetic detection. The pneumatic cylinder is manufactured according to ISO 15552 (Ex ISO 6431), with an aluminium jacket. Stem in chromed steel. Wide range of accessories for pneumatic cylinder mounting.

Technical characteristics of the pneumatic cylinder:

  • Manufacturer: Mindman.
  • Ref. 281MCQI2110500300M
  • Diameter and stroke: 50x300 mm.
  • Type: Double-effect pneumatic cylinder.
  • Damping: pneumatic.
  • Fluid type: Air with or without lubrication.
  • Manufacturing standard: ISO 6431
  • Maximum operating pressure: 10 Bar.
  • Type of gaskets: NBR.
  • Operating temperature: -10oC to +80oC.
  • Type of construction: Chromed steel shank, aluminum shirt.

Dimensiones cilindros ISO Mindman
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Question
hola 50 es la medida del eje ?? 300 es la medida de la carrera del eje?? cuanto peso puede mover?? un saludo espero respuesta
Answer

Buenos días,

50 es el diametro del cilindro, no del eje, con este dato calcule la superficie n mm2 y lo multiplica por la presión en Kg/cm2 y le da la fuerza teorica que puede motor este cilindro con la presión de trabajo que usted elija.

La carrera es lo que se extiende el vastago del cilindro, dessde la posión de reposo a la de estirado.

Saludos

samuel on 09/07/2018 01:21:17
