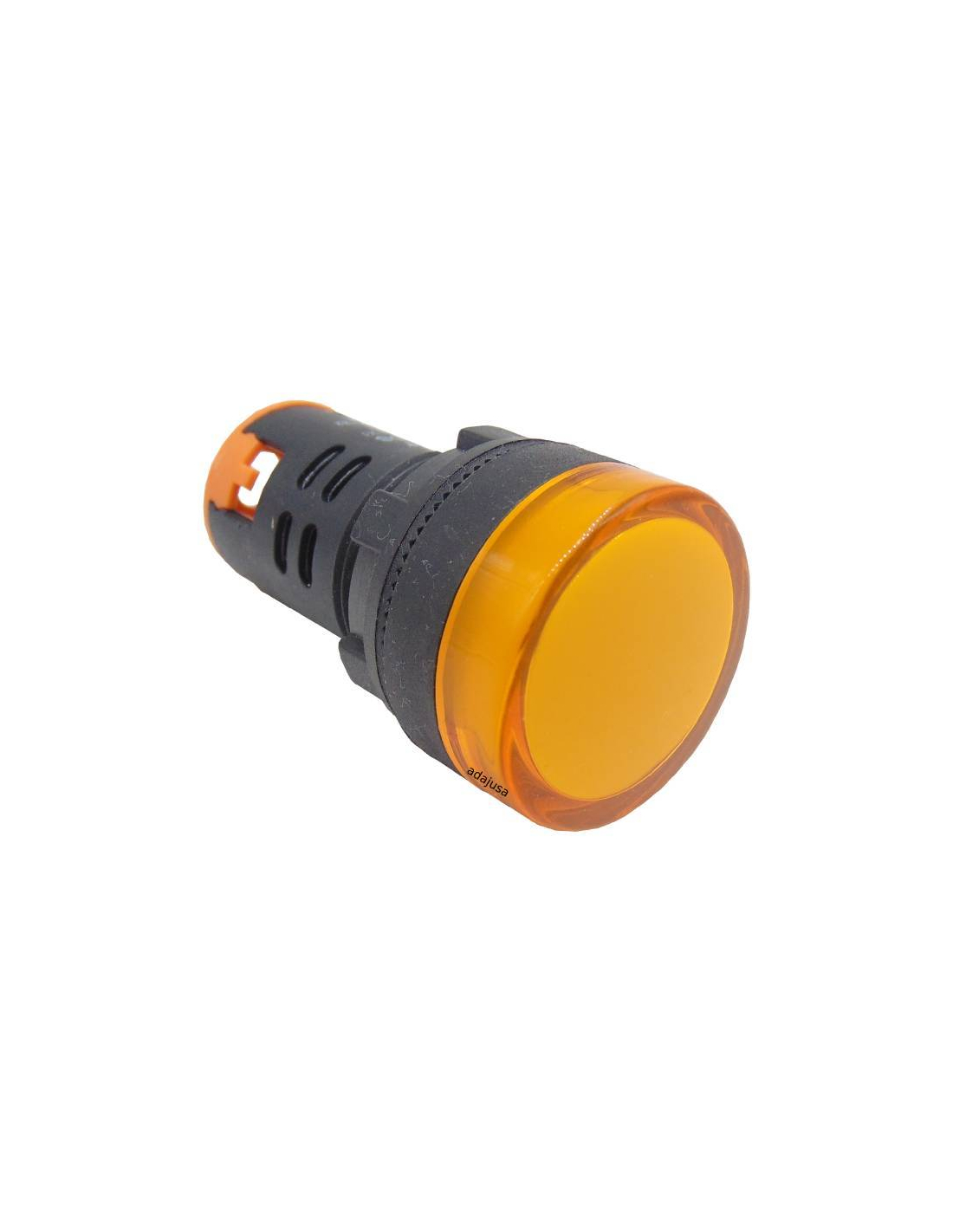

Yellow multiled pilot (amber) 380 Vac 22mm

Pilot yellow multiled (amber) 400 Vac 22mm

Name: Pilot yellow multiled (amber) 400 Vac 22mm
Brand: Generico-DE
SKU: AD22-22DS-Y40
Price: 1.5609 EUR
Availability: InStock

€1.56 Tax included

€1.29 tax excl.

Pilot yellow (amber)multiled luminous, voltage 380/400 Vac, diameter 22mm. High luminosity and long life led chip.

Reference: AD22-22DS-Y400

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pilot yellow (amber)multiled for voltage 380/400Vac, diameter 22mm. Luminous element made up of high performance LEDs (no bulb required).

Technical characteristics:

Manufacturer/Supplier: Denor
Part number: AD22-22DS-Y400
Type: AD22-Yellow
Voltage: 380/400Vac.
Color of the multiled pilot : Yellow (Amber).
Diameter: 22mm.
Nominal current (In): ≤17mA.
Luminosity: ≥60cd/m².
Degree of protection: IP65.
Connection type: By screw.
Type of fixing: By nut.
Material: Polycarbonate black color.

Dimensiones piloto multiled amarillo 380V

Material for professional use, install in compliance with the regulations in force at the place of installation.

Colors_in_command_and_signals

Meaning and use of colors in control and signaling devices

Download (21.92KB)

Multi-LED electric lamps

Technical data sheet multiled electric lights

Download (645.12KB)

pushbutton catalog

aDAJUSA catalog of metallic electric pushbuttons

Download (1.5MB)
