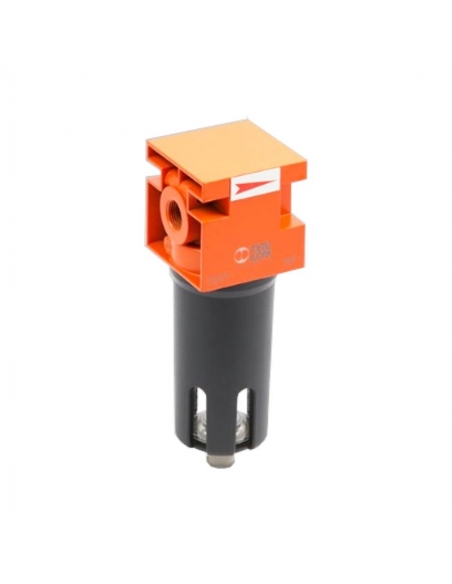

Filter Purifier 3/8 semi-automatic purge TMV New Deal - Metal Work

The job of the anti-oil scrubber filter is to separate solid or liquid particles dispersed in the air.
This separation is achieved thanks to the special filter element called "coalescing cartridge".

Product made of technopolymer specially indicated to eliminate traces of oil present in compressed air. In the front and rear there is a port that can be used as a pressure gauge, pressure switch or as an additional filter for the inlet air.

Characteristics:

• Manufacturer: Metalwork
• Manufacturer reference: 1322002
• Threaded drive: 3/8"
• Purification degree: 99.97% at 0.01 µm
• Maximum inlet pressure (bar/Mpa/psi): 18 / 1.8 / 261
• Recommended flow rate at 6 bar ( Nl/min): 230

• Min/max temperature at 10 bar; 1MPa; 145psi: -10º to +50ºC
• Weight: 0.9kg
• Condensation discharge type: RMSA (manual condensate drain and automatic discharge when pressure is removed)
• Fluid type: Filtered air 4 µm
• Bowl capacity: 45cm³
• Mounting position: Upright
• Wall fixing screws: M4x55

Dimensions:

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
