Block 2 NO+NC contacts for minicontact - Schneider

€5.87 Tax included

€4.85 tax excl.

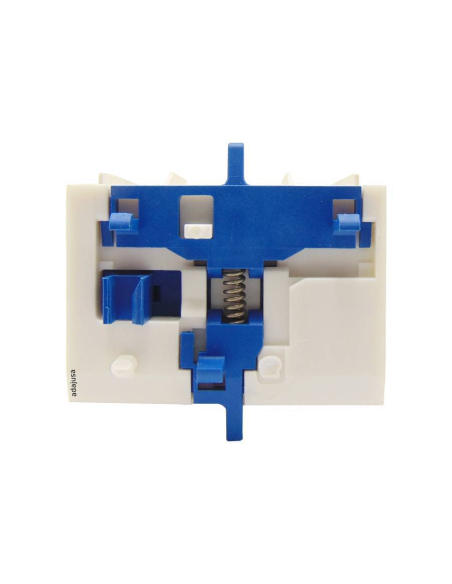

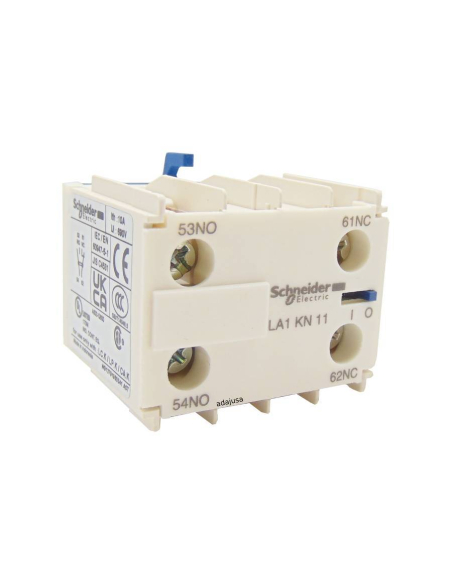

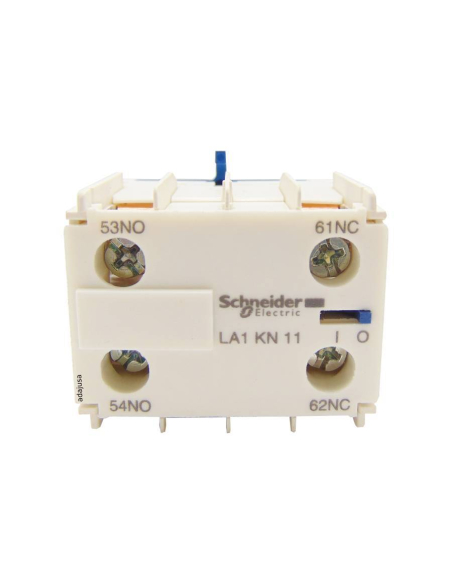

Block of 2 auxiliary contacts for mounting on minicontactor, front mounting, 1 open contact and 1 closed contact (NO+NC).

Part number: LA1KN11



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Block of 2 auxiliary contacts for front mounting on miniature contactor. The contact chamber has 2 contacts, 1 open contact and 1 closed contact (NO+NC).


Technical characteristics:

  • Manufacturer: Schneider Electric
  • Range: TeSys K
  • Reference: LA1KN11
  • Type of contacts:  instantaneous, 1 open 1 closed (NO+NC)
  • Mounting: Front
  • Rated operating voltage: 690Vac 25...400 Hz
  • Maximum current: 10A
  • Minimum switching voltage: 17V
  • Minimum switching current: 5mA
  • Range compatibility: TeSys K LC1K, TeSys K CA2K, TeSys K CA3K, TeSys K CA4K








For more information you can download the data sheet by clicking on the tab "Attachments"
Material for professional use, install in compliance with the regulations in force at the place of installation.
