Light indicator for 230Vac amber LED signaling...
Light indicator for 230Vac amber LED signaling column

Light indicator for 230Vac amber LED signaling column

€15.35 Tax included

€12.69 tax excl.

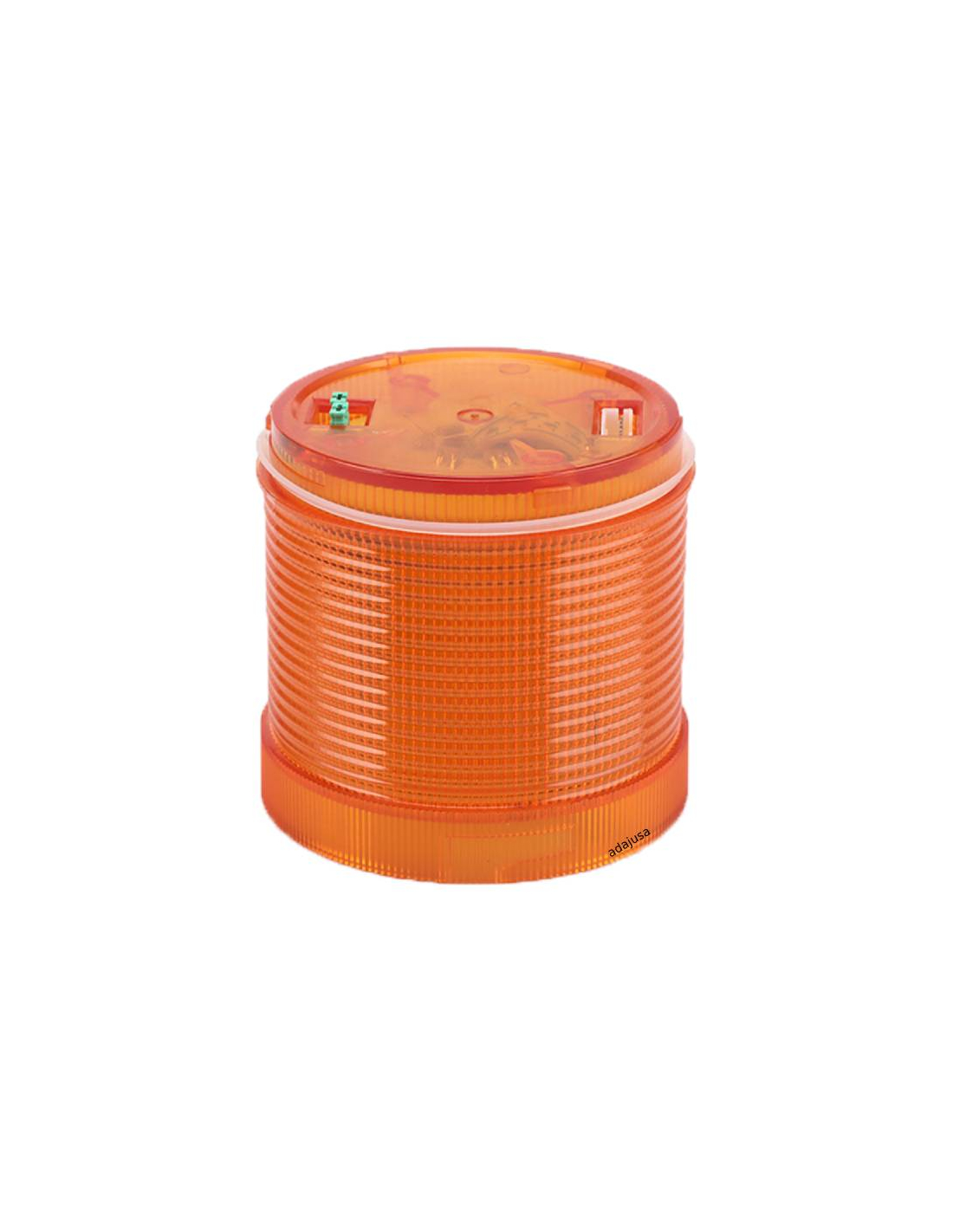

Amber LED luminous element for signaling columns, supply voltage 230Vac.



Reference: NYG3-70230Y


 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns

Modular amber LED light indicator used for signaling beacons, supply voltage 230Vac. This element can be used to incorporate or add more luminous elements to the beacon or to replace a damaged element. Diameter of luminous rings 50mm, diameter of mounting base 70mm.

These indicators are compatible with the NYG3-50 series light beacons.



Technical characteristics:
  • Manufacturer/Supplier: Tracon
  • Reference: NYG3-70230Y
  • Indicator light type: LED
  • Color: Amber
  • Diameter of luminous indicators: 50mm
  • Rated voltage: 230Vac
  • Rated insulation voltage: 660V
  • Recommended safety fuse: 10A gG
  • Operating temperature: -20 o C to +65 o C
  • Protection grade: IP65


Dimensions:




Connected:






Material for professional use, install in compliance with the regulations in force at the installation site.
