Lever valve bistable 1/8 3/2 NC lever front -...
Lever valve bistable 1/8 3/2 NC lever front - Aignep

Lever valve bistable 1/8 3/2 NC lever front - Aignep

€36.45 Tax included

€30.12 tax excl.

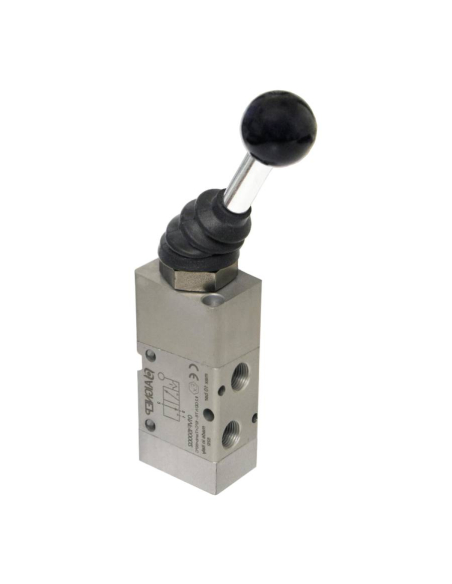

Valve 1/8 manually operated by front lever bistable of 3 way and 2 fixed positions, normally closed (NC), allowing to control double acting cylinders. Made of anodized and painted aluminum.

Series: 01V
Part number: 01VF130002

32ESQUEMABIESTABLE Logotipo Aignepiconos-válculas aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/8 valve manually operated by front lever bistable of 3 way and 2 positions, normally closed, which allows to control double acting cylinders. In one position the cylinder retracts, in another position the cylinder advances. It can also be used as a shut-off valve or pneumatic circuit breaker.

Manufacturer: Aignep

  • Part number: 01VF130002
  • Operating Pressure: Vacuum ÷ 10
  • Operating Temperature °C: -10 ÷ +60
  • Panel mounting: M16x1
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 740

32DIMENSIONEST1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
