Manual lever valve 1/4 5/3 fixed pressure centers - Metal Work

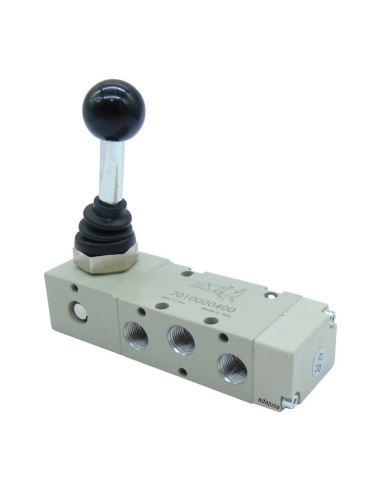

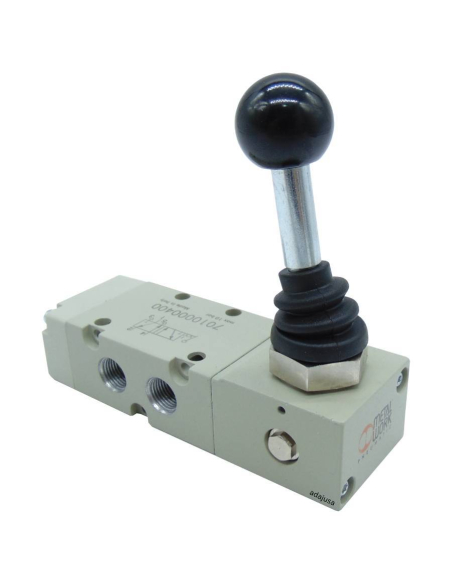

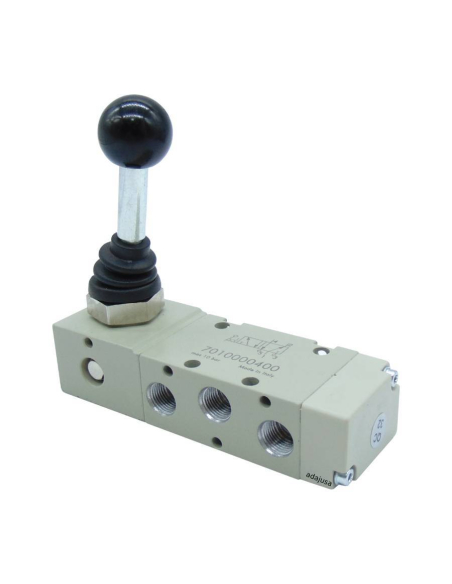

Valve of 1/4 manual actuation by lever of 3 positions, centers in pressure, 3 fixed positions, the valve changes position when the lever is activated and remains in it until it changes position, for control of cylinders of double effect, the valve has 3 positions, in one of them the cylinder advances, in the plant, the cylinder receives pressure from the sides, and in the other position the cylinder is collected.

It can also be used as a step or cut valve and for general use

Specifications:

• Manufacturer: Metal Work.
• Reference: MAV 36 LEO PC.
• Code: 7020000700
• Fluid: Pressurized or vacuum air, with or without lubrication.
• Valve Body: aluminum.
• Sliding material: Nickel-plated aluminum.
• Joints: NBR.
• number of tracks: 5.
• Size: 1/4".
• Positions: 3 pressure centers
• Control: By lever.
• Working pressure: Vacuum÷10 bar.
• Temperature: -10÷60ºC.
• Nominal diameter: 7.5
• Conductance C (Nl/min · bar): 264.26
• Critical ratio b (bar/bar): 0.27
• Flow rate at 6bar ΔP 0.5bar: 750 Nl/min.
• Flow rate at 6bar ΔP 1bar: 1100 Nl/min.
• Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
