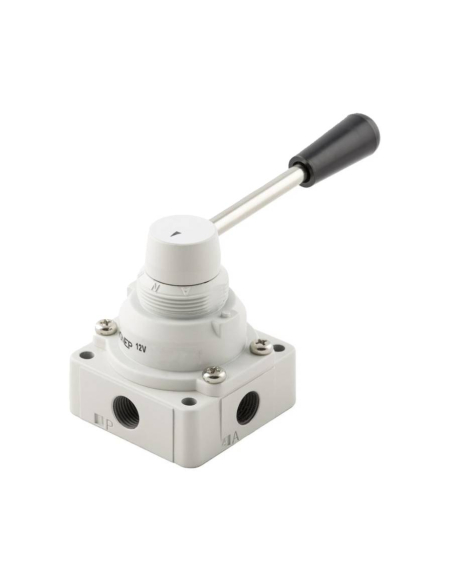

1/2 valve 4 ways 2 positions rotary lever - Aignep
1/2 valve 4 ways 2 positions rotary lever - Aignep

1/2 valve 4 ways 2 positions rotary lever - Aignep

€40.79 Tax included

€33.71 tax excl.

1/2 valve manually operated by rotating lever. 4 way 2 positions, anodized and varnished aluminum body. Normally open (NO). For controlling simple and double acting cylinders.

Series: 12V
Reference: 12V2L14NO05

NOSCHEMAAIGNEP
NORMATIVE

Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/2 valve manually operated by rotary lever with 2 fixed positions, 4 way , 2 positions that allow controlling simple and double-acting cylinders. In one position the cylinder retracts, in another position the cylinder advances. It can also be used as a shut-off valve or pneumatic circuit cut-off valve.

Fixing using through screws or transpanel mounting with fixing using a front nut. Mounting accessories not included in the supply.

Technical characteristics:

  • Manufacturer: Aignep .
  • Reference: 12V2L14NO05
  • Configuration: 4 way 2 fixed positions.
  • Thread type: G 1/2".
  • Type of fluid: Pressurized air, with or without lubrication.
  • Working pressure: 0 to 10 bar .
  • Working temperature: -5º to +60º (No condensation).
  • Screw fixing: 4 Ø7mm through holes.
  • Nut fixing: M40x1.5mm nut (Not included).
  • Valve body material: Anodized and varnished aluminum.
  • Component material: NBR gaskets

12V2DIMENSIONS

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
