Intermediate fitting diameter 8mm technopolymer - Metal Work

€2.54 Tax included

€2.10 tax excl.

2019004

Intermediate straight fitting for outer tube 8mm, made of high-strength technopolymer. Fast, very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations.

Manufacturer: METAL WORK.

Reference: 2019004

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Intermediate straight fitting for tube 8mm outer, quick-connect, made of high quality laton and technopolymer. Very simple and effective connection that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention; the clamping spring, turn the tube on without engraving or deforming it allowing for greater simplicity in the operation of disenging or disconnecting the tube fitting. In the fittings the fitting ring has screwdriver slots for easy disconnection in finger-inaccessible applications.

  • Manufacturer: Metal Work.
  • Manufacturer's Reference: 2019004.
  • Tubeexterior: 8mm.
  • Fluid: Vacuum - Compressed air.
  • Operating pressure: -0.99 bar to 16 bar.
  • Material: technopolymer.
  • Retention gasket: NBR.
  • Clamping spring: stainless steel.
  • Working temperature: -20oC to +80oC.

For other reference consult.

Dimensiones racores rectos intermedios Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Intermediate straight fittings

Intermediate fitting diameter 6 mm technopolymer - Metal Work

Metal Work
2019003
€2.25 (€1.86 tax excl.)
Straight intermediate fitting for outer Ø6mm tube, manufactured in high resistance technopolymer. Fast, very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations. Reference: 2019003 Representative image for...
Intermediate straight fittings

Intermediate fitting diameter 10 mm technopolymer - Metal Work

Metal Work
2019005
€2.59 (€2.14 tax excl.)
Straight intermediate fitting for outer tube Ø10mm, manufactured in high resistance technopolymer. Fast, very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations. Reference: 2019005 Representative image...
Intermediate straight fittings

Intermediate reducing fitting 8 - 6 mm technopolymer - Metal Work

Metal Work
2019304
€2.70 (€2.23 tax excl.)
Straight intermediate reducing fitting for tube Ø8 - Ø6mm, manufactured in high resistance technopolymer. Fast, very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations. Reference: 2019304 Representative...

16 other products in the same category:

Intermediate straight fitting diameter 4mm Series 56000 MINI - Aignep | ADAJUSA
Intermediate straight fittings

Intermediate straight fitting diameter 4mm Series 56000 MINI - Aignep

Aignep
560404
€1.69 (€1.40 tax excl.)
Intermediate straight fitting for 4mm tube, made of technopolymer with a light and compact configuration. Its miniature design is ideal for applications where space is limited and a quick and secure connection is required.Series of Push-In fittings suitable for compressed air systems, pneumatic automation, automotive, robotics, textile industry,...
Intermediate straight fittings

Intermediate reducing fitting 6 - 4 mm technopolymer - Metal Work

Metal Work
2019303
€2.41 (€1.99 tax excl.)
Straight intermediate reducing fitting for tube Ø6 - Ø4mm, manufactured in high resistance technopolymer. Fast, very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations. Reference: 2019303 Representative...
Intermediate straight fitting diameter 6mm Series 55000 - Aignep| ADAJUSA
Intermediate straight fittings

Intermediate straight fitting diameter 6mm Series 55000 - Aignep

Aignep
550406
€1.51 (€1.25 tax excl.)
Intermediate straight fitting for 6mm tubing, made of technopolymer and the tubing extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 55040 6 Representative image for illustrative purposes, the...
Intermediate straight fitting diameters 6mm - 4mm Series 55000 - Aignep: ADAJUSA
Intermediate straight fittings

Intermediate straight fitting diameters 6mm - 4mm - 55000 Series - Aignep

Aignep
5504064
€1.50 (€1.24 tax excl.)
Intermediate straight fitting for 6mm and 4mm diameter tubes, manufactured in technopolymer and the tube extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Part no.: 55040 6 4 Representative image for...
Intermediate Straight Fitting diameters 8mm - 6mm Series 55000 - Aignep| ADAJUSA
Intermediate straight fittings

Intermediate straight fittings diameters 8mm - 6mm Series 55000 - Aignep

Aignep
5504086
€1.65 (€1.36 tax excl.)
Intermediate straight fitting for 8mm and 6mm diameter tubes, manufactured in technopolymer and the tube extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 55040 8 6 Representative image for...
Intermediate straight fitting diameter 16mm Series 55000 - Aignep: ADAJUSA
Intermediate straight fittings

Intermediate straight fitting diameter 16mm Series 55000 - Aignep

Aignep
5504016
€4.79 (€3.96 tax excl.)
Intermediate straight fitting for 16mm tube, made of technopolymer and the tube extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 55040 16 Representative image for illustrative purposes, the item...
Intermediate straight fitting diameters 10mm - 8mm Series 55000 - Aignep: ADAJUSA
Intermediate straight fittings

Intermediate straight fitting diameters 10mm - 8mm 55000 Series - Aignep

Aignep
55040108
€1.96 (€1.62 tax excl.)
Intermediate straight fitting for 10mm and 8mm diameter tubes, manufactured in technopolymer and the tube extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Reference: 55040 10 8 Representative image for...
Intermediate straight fittings

Intermediate fitting diameter 10 mm technopolymer - Metal Work

Metal Work
2019005
€2.59 (€2.14 tax excl.)
Straight intermediate fitting for outer tube Ø10mm, manufactured in high resistance technopolymer. Fast, very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations. Reference: 2019005 Representative image...
Intermediate Straight Fitting diameters 8mm - 4mm Series 55000 - Aignep| ADAJUSA
Intermediate straight fittings

Intermediate straight fittings diameters 8mm - 4mm Series 55000 - Aignep

Aignep
5504084
€1.61 (€1.33 tax excl.)
Intermediate straight fitting for 8mm and 4mm diameter tubes, manufactured in technopolymer and the tube extraction ring in acetal resin . Very efficient connection simple that allows reconnection thousands of times without compromising the perfect pneumatic and mechanical retention. Series: 55000Part number: 55040 8 4 Representative image for...
Intermediate straight fittings

Intermediate fitting diameter 12 mm technopolymer - Metal Work

Metal Work
2019006
€4.28 (€3.54 tax excl.)
Straight intermediate fitting for outer tube Ø12mm, manufactured in high resistance technopolymer. Fast, very simple and effective connection that allows reconnection thousands of times without compromising perfect pneumatic and mechanical retention. Valid fitting for pneumatic and vacuum installations. Reference: 2019006 Representative image...

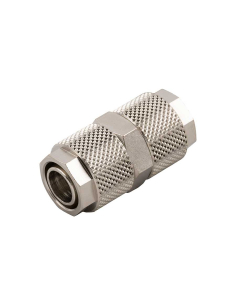

Intermediate straight fitting diameters 10/8 - 8/6 Series 1000 - Aignep | ADAJUSA
