Pneumatic filter group 1/2 regulation 0-8 bar semi-automatic purge New Deal series - Metal Work

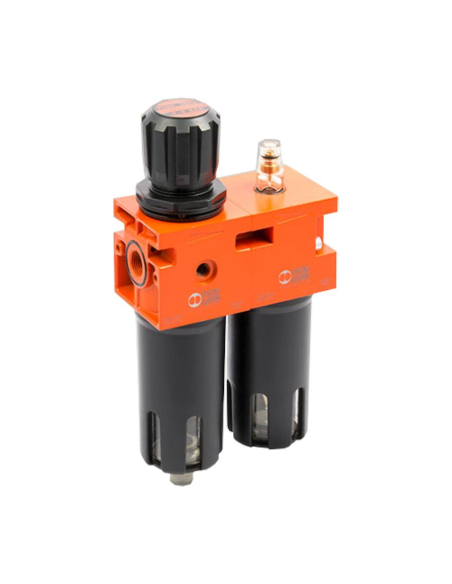

1/2 filter group, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size in 2 modules (FR+L).
Among the main characteristics of this filter group, it has a great flow performance compared to its size and reduced weight, satisfying the current demand for miniaturization and performance. Made of aluminum and with plastic tanks with metal protection.
The type of purge is manual and automatic when the pressure is removed.

Note: the pressure gauge is not included in the supply, it must be ordered separately.

Characteristic:

• Manufacturer: Metal Work
• Reference: 1426030
• Number of elements: 2 (FR+L).
• Thread size: 1/2"
• Condensate drain type: RMSA
• Metal glass with external viewer.
• Built-in overpressure bleed valve.
• Adjustment range ( bar ): 0 ÷ 8
• Filtration degree ( μm) : 20
• Maximum inlet pressure (MPa / bar / psi): 1.8 / 18 / 261
• Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi) ( Nl/min): 1300
• Flow rate at 6.3 bar (0.63 MPa ÷ 91 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) ( Nl/min): 2200
• max temperature at 1 MPa; bar ; 145psi ( °C): 50

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
