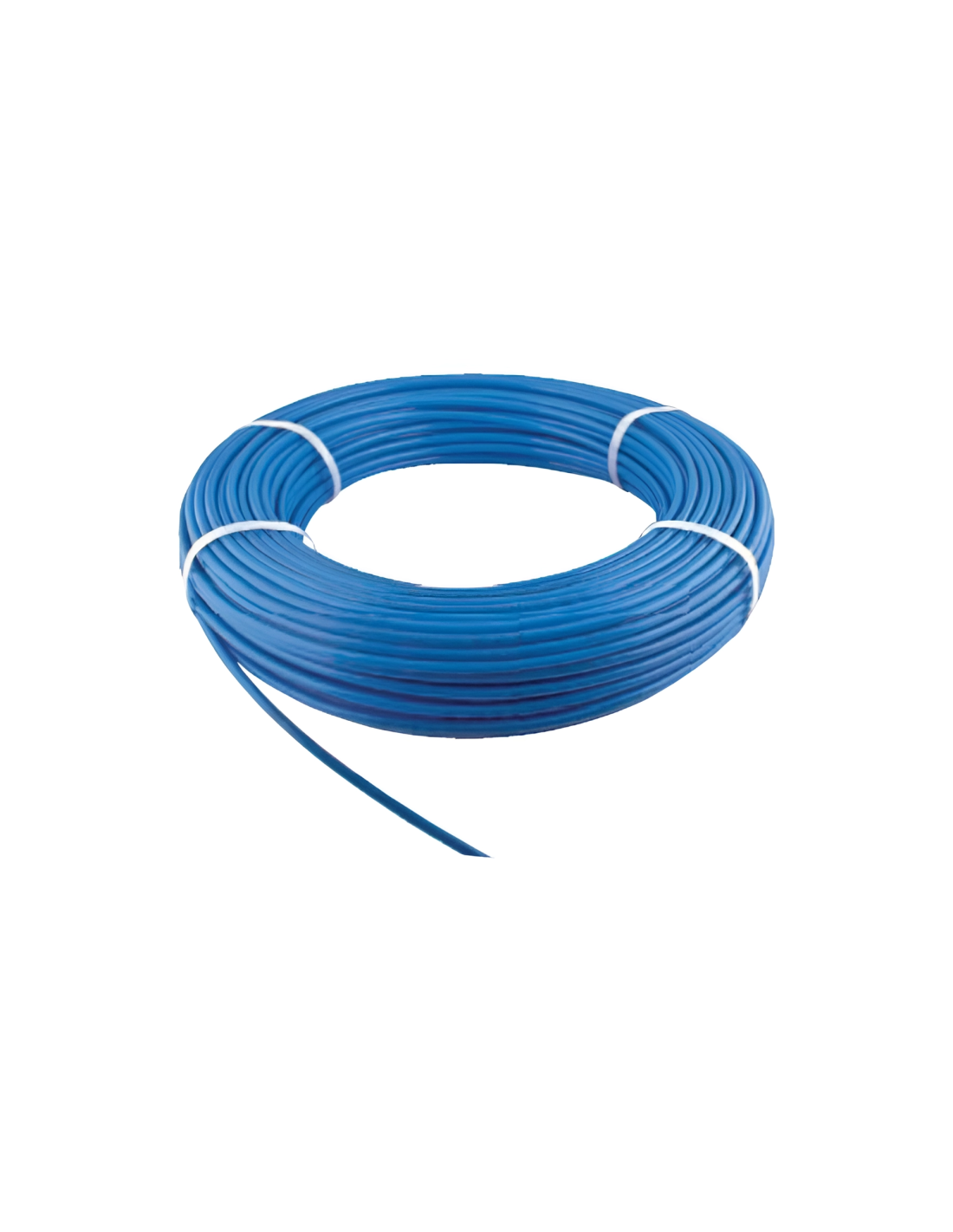

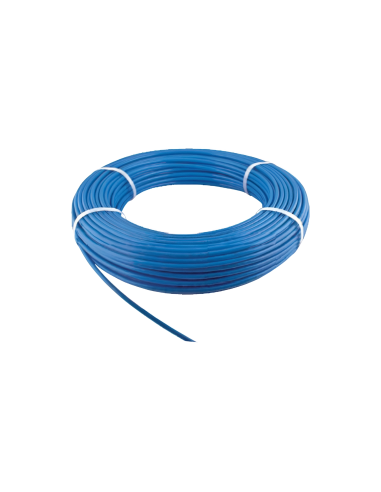

Pneumatic polyurethane tube 6x4mm blue 50m

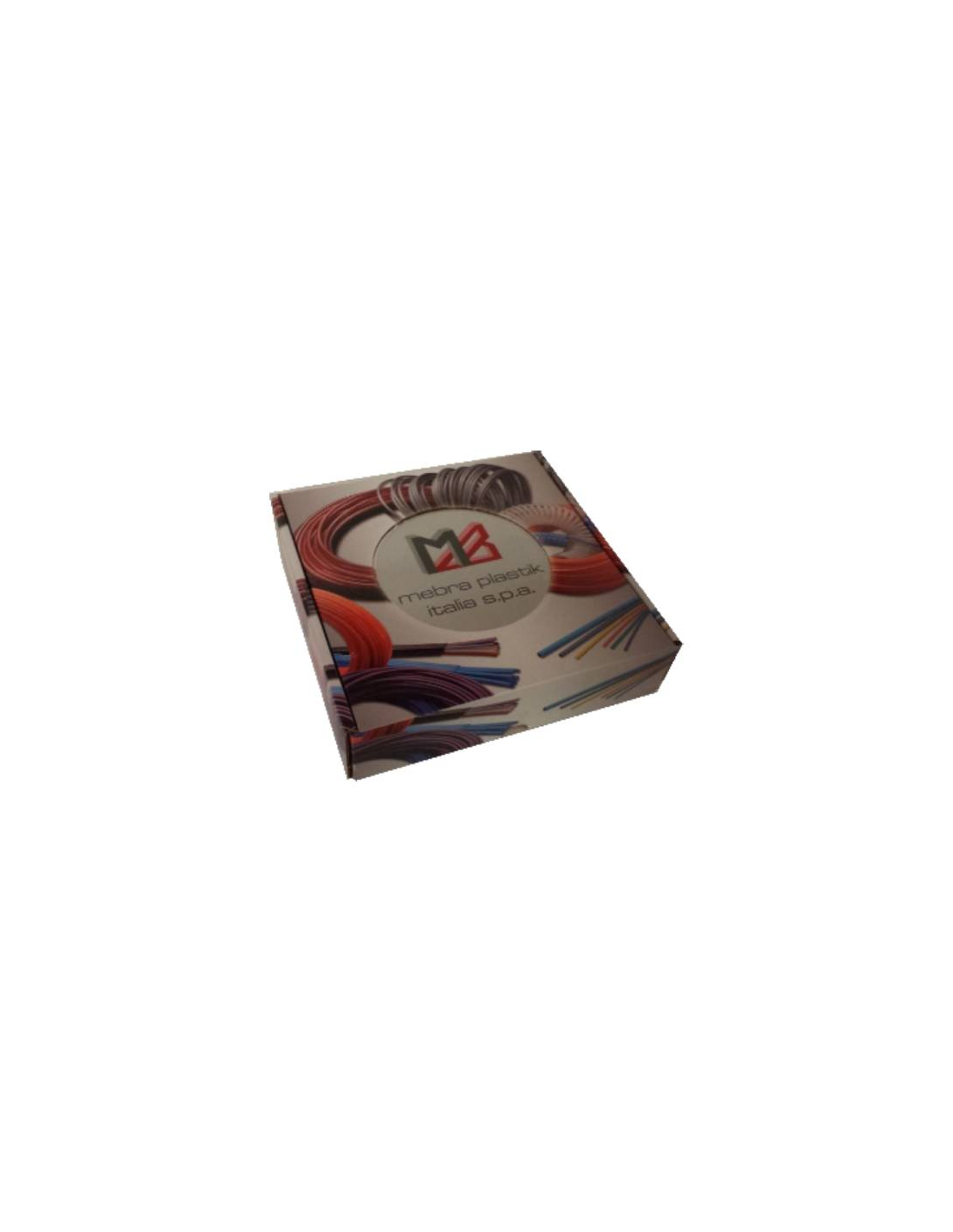

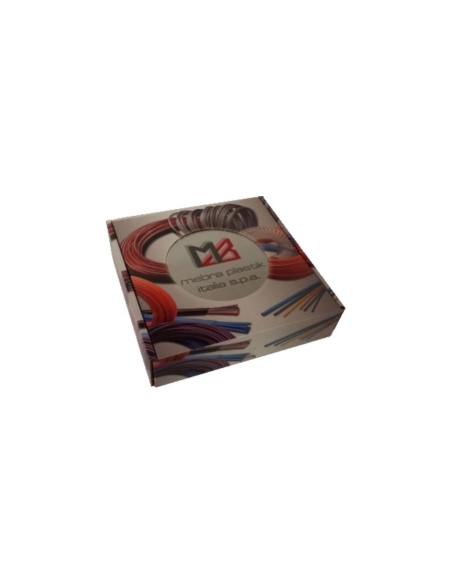

Flexible PU98 polyurethane tube with ester base (hardness 52 Shore D), product of the LONGLIFE series for pneumatic applications, measurement 6x4mm. Box of 50 meters, blue color.


Tube made of chemical polyurethane with a flexible ester base, suitable for almost all industrial standard low pressure pneumatic applications. Especially recommended for agricultural industry and extreme pressure conditions greater than 10 bar . It features excellent flexibility, dimensional stability, very tight bending radii, and good resistance to bending, abrasion, and high-speed handling. It has good resistance to high temperatures, good resistance to cold impact, as well as resistance to oils, greases, oxygen and ozone.


Intended for the industrial sector and various applications such as industrial automation, robotics, vacuum, energy chains, machine tools, etc.

Characteristics:

• Manufacturer: Mebra
• Reference: SCPU4X6X50
• Measurement: 6x4mm
• Quantity: 50m
• Color blue
• Outer diameter: 6mm
• Inner diameter: 4mm
• Thickness: 1mm
• Minimum bending radius: 25mm
• Hardness: SHORE 98 A / SHORE 49-55 D
• Temperature: -40ºC to +60ºC
• Operating pressure (23ºC): 13bar
• Burst pressure safety factor: 3:1
• Tolerances:

  ±0.05 in wall thickness
  ±0.05 in external Ø, up to Ø 10
  ±0.10 on the outside Ø, up to Ø 12
  ±0.5% on weight

NOTE: Not suitable for use with water and humid environments.



Graph of pressure drop in % as a function of temperature:

Material for professional use, install in compliance with the regulations in force at the installation site.

For more information you can download the technical sheet by clicking on the "Attachments" tab
