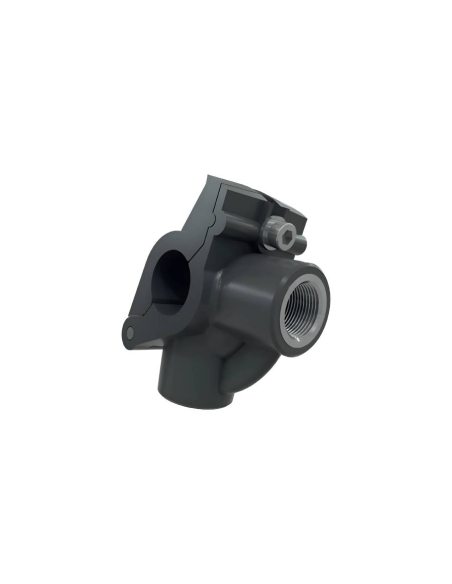

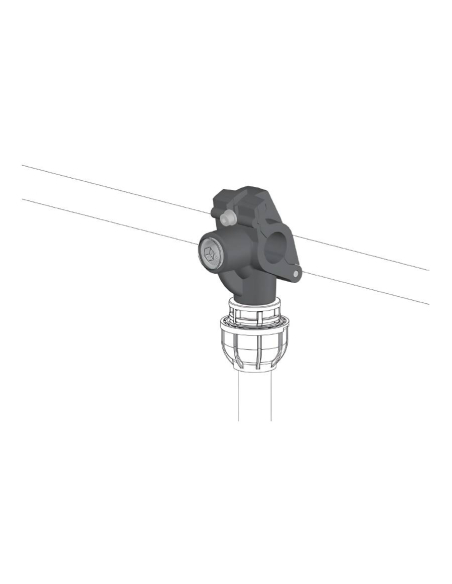

Socket for intermediate connection diameter 32mm female downpipe 1/2 - Sicomat

Air intake for creating downpipes or branches of the main pipe network in already finished installations, for main pipe with an external diameter of 32mm and for downspouts with a 1/2 cylindrical female thread. This element has an anti-condensation design for creating downpipes in networks of compressed air, vacuum and inert gases such as nitrogen and argon. Designed with a quick coupling system that guarantees easy assembly in already finished installations without having to dismantle them. Maximum working pressure 12.5 bar .







Characteristics:

• Manufacturer/Supplier: Sicomat/Metalwork
• Reference: R259.032.000
• Pipe diameter: 32mm
• Downpipe thread: Female 1/2 (Gas cylindrical according to ISO 228)
• Application: Compressed Air / Vacuum / Nitrogen
• Maximum pressure conditions: -0.8 to 12.5bar
• Temperature conditions: -20ºC to +70ºC
• Dimensions: Ø = 32mm; A = 78mm; B = 95mm; C= 40mm; D = 1/2"
• Weight: 170g
• All products in the SicoAir Line range meet the requirements of 2014/68/EU (Pressure Equipment Directive), ASME B31.1 requirements, are non-flammable and limit the spread of flame.

Material for professional use, install in compliance with the regulations in force at the installation site.
