Filter 1/2 20 micron automatic purge size 2 FRL...

Filter 1/2 20 micron automatic purge size 2 FRL EVO series - Aignep

Filter 1/2 20 micron automatic purge size 2 FRL EVO series - Aignep

€53.83 Tax included

€44.49 tax excl.

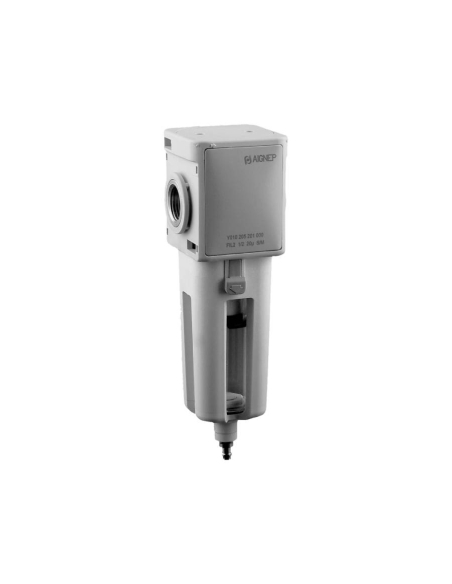

Filter 1/2, with a filtration degree of 20μm and automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor .These filtering cups are made of technopolymer with metal endings. Made in Italy.

Series: FRL Evo
Part number: Y01020205202000
Simbolo neumatico filtro Adajusa
Logotipo Aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

1/2" filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the aircompressor .Compact size (T2). The type of drain is automatic, discharges condensate when it reaches the maximum allowable level regardless of operating pressure.

Features:

Manufacturer: Aignep
Manufacturer's part number: Y01020205202000
Threaded drive: 1/2"
Unit size: size 2.
Filtration degree: 20 μm
Maximum inlet pressure: 15 bar
Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 4100
Fluid: Compressed air or other inert gases
Cup capacity (condensing) (cm3): 37
Mounting position: Vertical.
Working temperature: -10 to +50ºC.

For other sizes or references: consult us.

Dimensiones filtro serie EVO Aignep Adajusa

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab

Catalogo FRL EVO

Download (4.94MB)
