Tensioning wheel for chain diameter 25mm 9 teeth 20B C 45 - INA

€103.71 Tax included

85.71 tax excl.

KSR252016

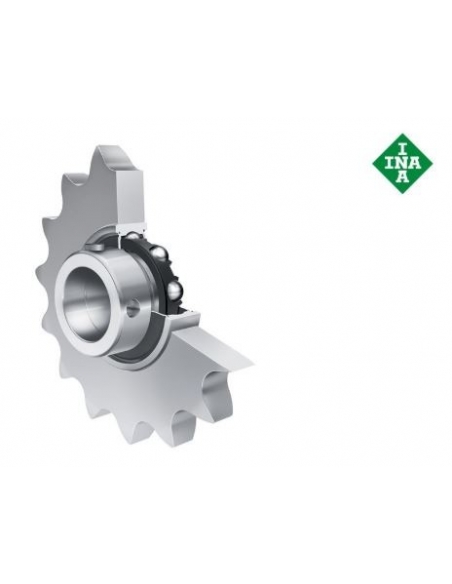

Tensioning wheel with ball bearing for steel chain (C 45). Diameter 25mm and 9 teeth. Valid for normal chains and roller chains.

Reference: KSR 25.L0.20.10.09.16



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


The tensioning wheels or sprockets for INA chains are units of guidance and forwarding of chains, being valid for normal chains and rollers. They serve to compensate for the elongations of the chains, which occur throughout the service life by the operation itself, improve the smoothness of the ride and increase the performance of the system under high loads and speeds.

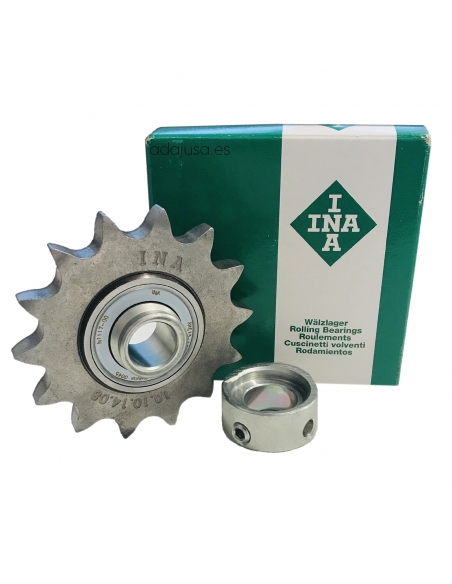

The units are supplied ready for assembly, are composed of wheel for the chain and rigid ball bearing already assembled. The tensioning wheels for chains are made of high-strength sintered steel. As the inner ring of the rigid ball bearing is extended on both sides, no additional separator rings are required.

The inner ring is fixed to the shaft by an eccentric tensioning ring. The drill in this series has a positive tolerance. In this way, unhanhanized shafts up to ISO h9 tolerance can be used under medium loads and speeds.

Manufacturer: INA

Reference: KSR 25.L0.20.10.09.16

Dimensiones rueda dentada perfil

Dimensiones rueda dentada frente

Dimensions:

  • Hub diameter (d): 25 mm Tolerance: +0.018/0
  • Tip diameter (Dk): 103 mm
  • Tensioner width (B1): 21 mm
  • Outer ring width (C): 15 mm
  • Tensioning thickness (C1): 17.6 mm.
  • Chamfer (C2): 2.5 mm.
  • Outer diameter (D): 52 mm.
  • Primitive diameter (D0): 92.8 mm.
  • Outer diameter of the tensioner (d3): 52 mm.
  • Dentate (p): 20B
  • Number of teeth (Z): 9
  • Weight: 0.58 Kg.
  • Hardness HB 50+/-5 (Flanks of tempered teething)

Material for professional use, install in compliance with the regulations in force at the place of installation.
