Direct starter with three-phase contactor 25A 230Vac
Direct starter with three-phase contactor 25A 230Vac
Direct starter with three-phase contactor 25A 230Vac
Direct starter with three-phase contactor 25A 230Vac
Direct starter with three-phase contactor 25A 230Vac
Direct starter with three-phase contactor 25A 230Vac
Direct starter with three-phase contactor 25A 230Vac
Direct starter with three-phase contactor 25A 230Vac

Direct starter with three-phase contactor 25A 230Vac

€39.69 Tax included

€32.80 tax excl.

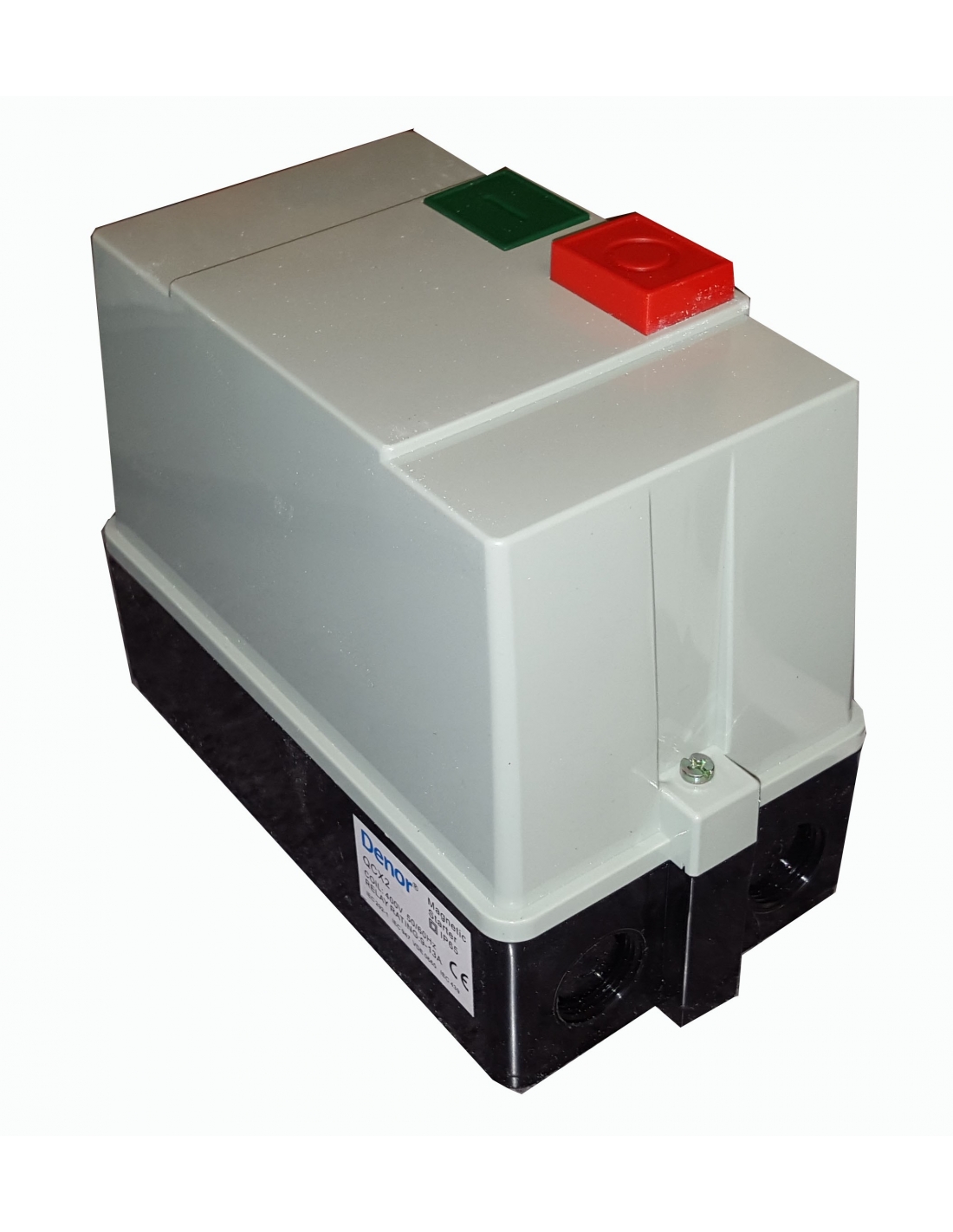

Direct starter in box for electric motor with three-phase contactor 25A category AC3, 230Vac. Maximum motor power 7,5CV (5,5Kw).

This starter does not include thermal relay to be ordered separately.


Reference: QCX2 25A 230Vac


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Direct starter in box for electric motors and machines, with three-phase contactor of 25A category AC3. For 230Vac three-phase electric motors, with space for thermal relay. They are usually used for the control of small machines, electric motors, water pumps, electric purifiers and similar, which require stopping and starting on the machine itself or remotely from it.

It provides space to house a thermal relay for overload protection of the machine or electric motor.

They are of small volume and weight, minimum consumption and high degree of watertightness, on the same, a push button is incorporated to start (green) and a stop button (red) that acts on a thermal relay to stop the machine or motor.

The use of this type of starters avoids instespective starts of the machine or electric motor in case of power failure.

The supply includes:

  • 1 Polycarbonate box.
  • 1 Pushbutton "I" start, green color.
  • 1 Pushbutton "O" stop/reset, red color.
  • 1 Three-phase contactor 25A AC3, with 230Vac coil.

Technical characteristics:

  • Manufacturer/Supplier: Denor
  • Reference: QCX2 25A 230Vac
  • Working voltage: 230Vac three-phase.
  • Maximum current category AC-3: 25A.
  • Maximum three-phase motor power: 5.5 Kw (7.5CV).
  • Contactor coil voltage: 230Vac.
  • Stop button on thermal relay.
  • Manufacturing material: polycarbonate.
  • Standards: IEC: 292-1 VDE 0660-104
  • Reference: QCX2-25 similar to LE1-D25.

Note: the thermal relay is not included, it must be ordered separately.

Caja arrancador con contactor 25A 230Vac

Material for professional use, install in compliance with the regulations in force at the place of installation.
