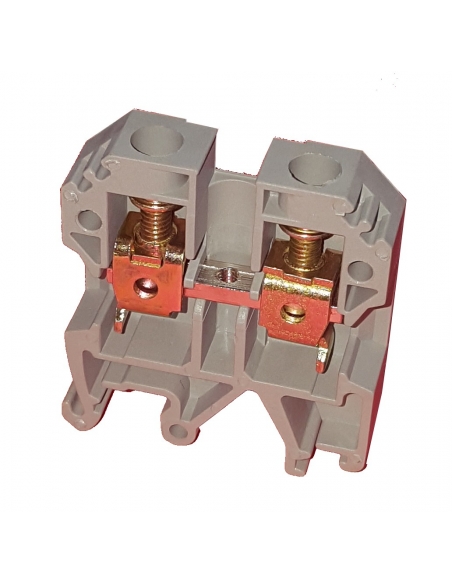

35 mm terminal

35 mm terminal

Terminal block 35 mm

€2.17 Tax included

1.79 tax excl.

JXB-35 Grey

Terminal 35mm² for DIN rail. Screw connection and tightening by clamp.

Part number: JXB-35 Grey

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1 question about the product

Terminal 35mm electrical connection for DIN rail mounting with lateral wiring. Screw connection.

Technical features:

Manufacturer/Supplier: Denor
Ref: JXB-35 Grey
Tassel color: Grey.
Material: Polyamide.
Maximum voltage: 690V.
Maximum current: 125A.
Wire size: 2.5 to 35 mm2.
Connection type: clamp with screw.

Material for professional use, install in compliance with the regulations in force at the place of installation.

terminal block catalog

terminal block catalog

Download (766.86KB)

Annex instructions for use elec.

Document attached to the instructions for use of electrical equipment

Download (402.62KB)

Questions

Question

Hola, Cuando se pone un puente en las bornas como se proteje el mismo? Las bornas bienen con tapas o hay que pedirlas aparte? Un saludo, Santi

Answer

Buenos días,

Los puentes quedan en un nivel inferior, en el frontal de las bornas, pero accesibles frontalmente.

Con relación a las tapas laterales, estas hay que pedirlas por separado.

Saludos

Santi Umerez on 05/28/2018 18:46:08
